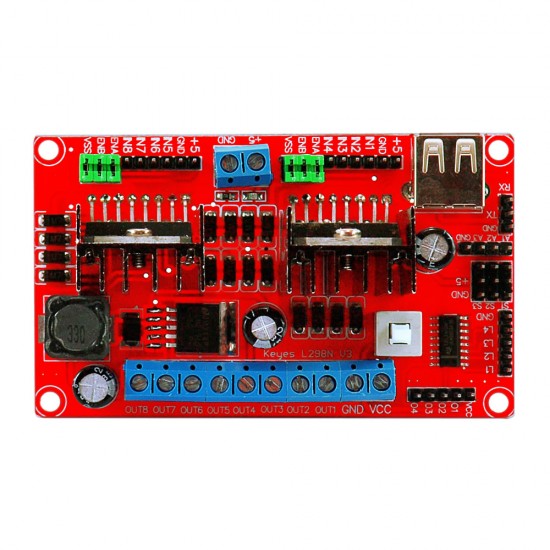

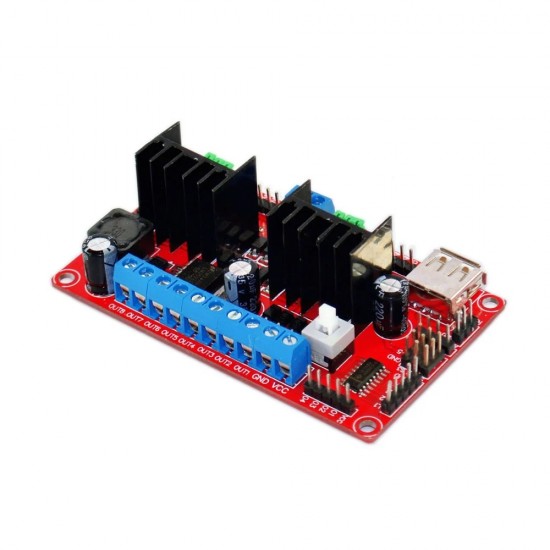

L298N V3 FOUR DC MOTOR DRIVER

L298N V3 FOUR DC MOTOR DRIVER
L298N V3 FOUR DC MOTOR DRIVER
L298N V3 FOUR DC MOTOR DRIVER
L298N V3 FOUR DC MOTOR DRIVER
L298N V3 FOUR DC MOTOR DRIVER
Based on 0 reviews. - Write a review
₹931.00
Ex GST: ₹788.98
  • Stock: In Stock
  • Model: 10279
  • SKU: SAT4449
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This dual L298N driver module uses ST’s L298N new original chip. It has high stability SMT process, with high-quality electrolytic capacitors to make the circuit work stably. It can directly drive two 3~30V DC motor. and it provides a 5V output interface (the min input is 6V) to power for 5V single-chip circuit (low ripple factor). It also supports 3.3V MCU ARM control and so you can easily control the speed and direction of DC motor, and control the 2-phase stepper motor, 5-wire 4-phase stepper motor.

Features:

This drive module integrates the two L298N chip, it can drive four DC motors (reversible, can use PWM to control speed) or two stepper motors.

It integrates LM2596 DC-DC voltage regulator chip (which can output 5V, can power for the SCM, servos, sensor, router. the battery can up to 2A).

In addition to the two pieces L298N chip on the board, and then integrate a ULN2003 can drive one more stepper motor, or four DC motors (start and stop, not reversible). For example, when making fire-fighting robot, it can control extinguishing fan, not need external circuit.

Integrated servo interface, leads to the signal terminal, it’s convenient to dock with SCM.

Integrated USB connector, which can be directly powered by plugging into the router.

Apply to W703N, WIFI car router modification. inserting USB, leading out the RXD TXD through pins, it is convenient to communicate with its own SCM.

5V DC output leading-out terminal (terminal, pin), it’s convenient to power for the 5V external devices.

Pin Functions:

L298N V3 FOUR DC MOTOR DRIVER

Package Includes:

1 x L298N V3 FOUR DC MOTOR DRIVER
