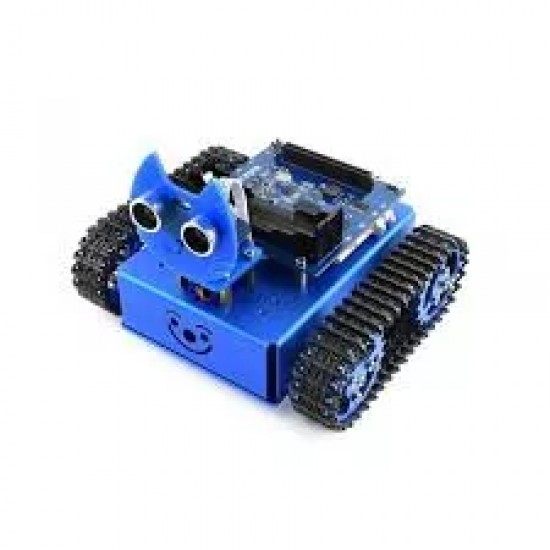

KitiBot tracked robot building kit for micro:bit (no micro:bit)
₹9,182.00
Ex GST: ₹7,781.36
Price in reward points: 21
- Stock: In Stock
- Reward Points: 21
- Model: 7860
- SKU: SAT2022
- Location: India
₹56.64
Ex GST: ₹48.00
KitiBot starter tracked robot building kit for micro:bit, with controller BBC micro:bit
When KitiBot meets micro:bit, when kids meet programming, the mysterious robotics becomes simple, each interesting idea will come true. By using the graphical programming software, learning programming, and exploring robotics would be as easy as building blocks.
This KitiBot tracked robot kit uses the BBC micro:bit as the host controller, combined with several functional modules, it is easy for the kids to experience robotic tricks such as: line tracking, obstacle avoiding, ultrasonic ranging, servo operation, Bluetooth remote control, etc.
KitiBot for micro:bit T illustrationKitiBot for micro:bit T illustrationKitiBot for micro:bit T illustrationKitiBot for micro:bit T illustration
Note: the 2.4G gamepad is NOT included in the price, besides, totally two micro:bit are required for 2.4G RF remote control.
The Controller micro:bit
The BBC micro:bit is an open development board that allows you to run code on it and have access to all of the hardware.
You can use your BBC micro:bit for all sorts of cool creations, from robots to video games – the possibilities are endless.
Nordic nRF51822
16 MHz 32-bit ARM Cortex-M0 microcontroller
Bluetooth® 4.0 low energy/2.4GHz RF SoC
16kB RAM
256kB Flash
Freescale KL26Z – 48 MHz ARM Cortex-M0+ MCU
Compass – Freescale MAG3110 3-axis magnetometer, I2C interface
Accelerometer – Freescale MMA8652 3-axis accelerometer, I2C interface
Power connector – 3V power supply
Reset button – reset the system
Micro USB connector – for connecting PC, download code, serial communication, etc.
5x5 LED display – 5x5 LED grid
Button A/B – programmable buttons
I/O connection pins – 5 I/O rings and 20-pin edge connector, including SPI, UART, I2C, Analog, PWM, etc.
Dimensions – 5cm x 4cm
The KitiBot for micro:bit
Onboard connector for plugging in micro:bit
Integrates MP2636 Li-ion battery charger with system boost, allows charge the battery even when using
Integrates DW01+8205S Li-ion battery protection circuitry: reverse protection, over charge/discharge protection, over
current protection, and short circuit protection
Integrates TB6612FNG dual H bridge motor driver, high efficiency, low heating
Integrates PCA9685 PWM controller, micro:bit IO expansion
Integrates TLC1543 AD acquisition chip, allows connect multi analog sensors to the micro:bit
Integrates 4x APA102 colorful LEDs, dual-line control, no more conflict between the WS2812B RGB LED and Bluetooth
Onboard buzzer to play music
micro:bit connector – for connecting micro:bit
MP2636 – power management, for both charging and boost discharging the battery
8205S – dual N-Ch MOSFET, for circuit protection
DW01 – Li-ion battery protection charge/discharge protection
RT9193-33 – 3.3V voltage regulator, supplies power for micro:bit
MLT-8530 – buzzer
PCA9685 – PWM controller, micro:bit IO expansion, I2C interface
TB6612FNG – dual H bridge motor driver
TLC1543 – 10-bit AD acquisition chip, allows connect line tracking analog sensor to the micro:bit
APA102 – dual-line control RGB LED
18650 battery holder
Power switch
Micro USB power interface – for charging the Li-ion battery
Indicators
WARNING: Li-ion battery reverse warning
CHG: charge mode
BOOT: boost mode
PWR: power
Module connectors (bottom side) – for connecting servo, ultrasonic module, line tracking module
Motor connectors (bottom side)
PACKAGE CONTENT
Note: this product requires one 18650 battery to work, which are NOT included and should be purchased separately.
KitiBot for micro:bit Acc Pack
Metal box x1
Gears 8PCS x1
Caterpillar track 2PCS x1
KitiBot for micro:bit expansion board x1
Line tracking sensor x1
Ultrasonic sensor x1
KitiBot acrylic head x1
Servo x1
Servo mounting board x1
Ultrasonic adapter x1
370 coding motors 2PCS x1
PH2.0 20cm 4Pin same side contact cable x1
PH2.0 20cm 7Pin same side contact cable x1
USB type A plug to micro B plug cable x1
KitiBot for micro:bit T screws x1
Screwdrivers 2PCS x1
Additional parts in the kit
BBC micro:bit x1.
