- Stock: In Stock
- Model: 10428
- SKU: SAT4598
- Location: India

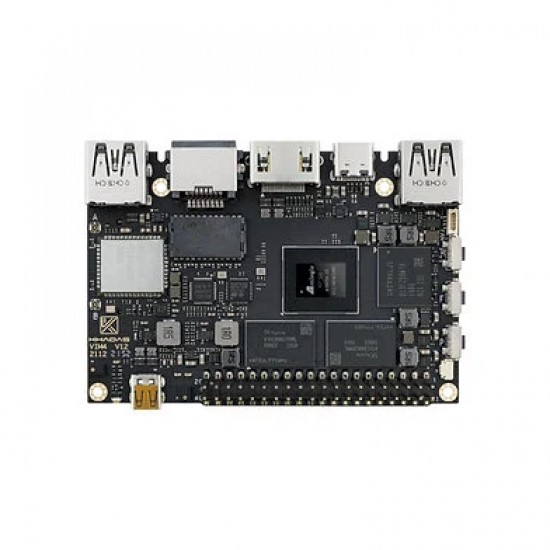

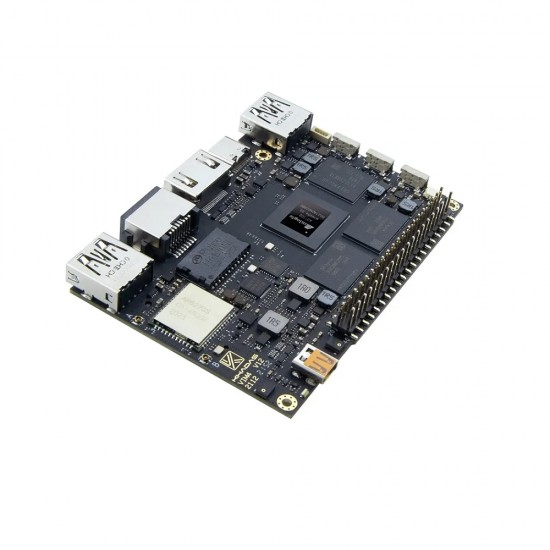

The VIM4 SBC is the latest addition to Khadas popular VIM series. It has a powerful Amlogic A311D2 SoC, featuring a 2.2GHz quad-core ARM Cortex-A73, and a 2.0GHz quad-core Cortex-A53 CPU. HDR10, HDR10+, HLG, and PRIME HDR video processing are supported, and Trust Zone-based security is used for DRM video streaming.

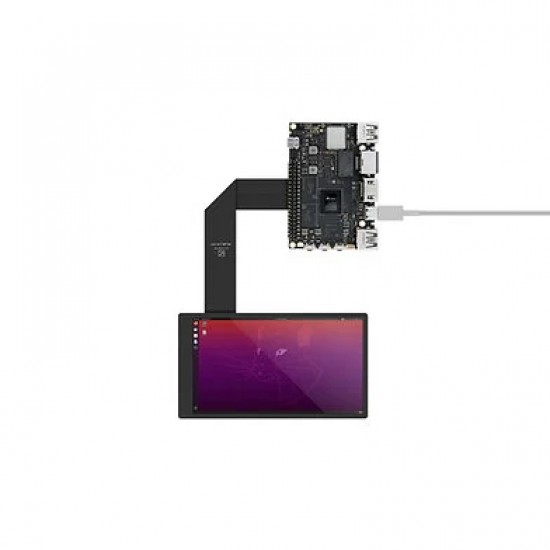

Developers and device manufacturers will love the programmable 32-bit STM32G031K6 MCU, wide 9-20V range of VIN power input, dual MIPI-CSI interfaces for two cameras, real-time clock, wake-on-lan functionality, and 3-axis g-sensor for orientation detection. The MIPI-DSI interface has touch panel functionality, so you can even build touch-sensitive interactive displays.

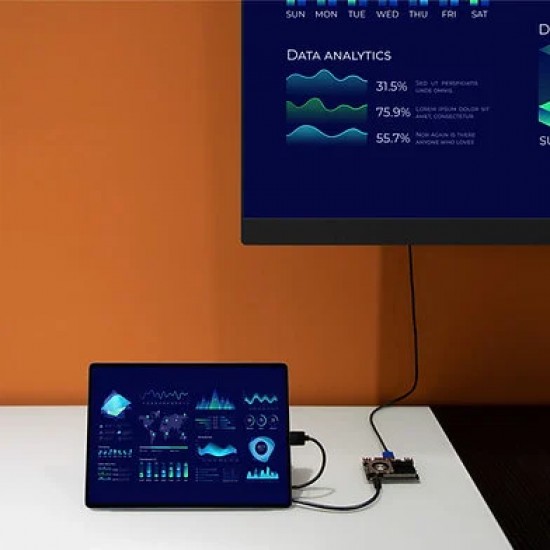

The new VIM4 SBC goes beyond what our original VIM models have to offer. It has an onboard micro HDMI input port for smart display & video conferencing applications. Four HDMI display outputs (HDMI, MIPI-DSI, V-by-One & eDP) means you can connect up to 3 displays simultaneously (including touch) without the need of costly adapters and custom boards.
Features:
- Amlogic A311D2 – 2.2GHz Quad-core ARM Cortex-A73 and 2.0GHz Quad-core Cortex-A53
- ARM Mali-G52 MP8(8EE) GPU up to 800MHz
- AP6275S Wi-Fi 6 Module (802.11a/b/g/n/ac/ax, 2T2R MIMO with RSDB)
- Bluetooth 5.1
- USB 3.0 Available
- Gigabit Ethernet with WOL support
- 8GB 64bit LPDDR4X frequency up to 2016MHz
- USB-C PD for heavy applications
- M.2 Connector (for NVMe SSD, 5G, etc)
Specifications:
- Main processor: Amlogic A311D2 octa-core Arm CPU
- 2.2 GHz Quad-Core Arm Cortex-A73 “big” cores
- 2.0 GHz Quad-Core Arm Cortex-A53 “little” cores
- Memory: 8GB of LPDDR4X RAM
- Built-in storage: 32 GB of built-in eMMC flash memory
- Wireless connectivity: Wi-Fi 6, Bluetooth 5.1
- Ports/slots: USB, Gigabit LAN, HDMI Input/Output, MicroSD, M.2 PCIe, MIPI-DSI, MIPI-CSI
- Size: 82 x 58 x 11.5 mm, 31 grams
- Input voltage: 9-20 V
- Integrated sensors: Stereo microphones, tri-axis accelerometer

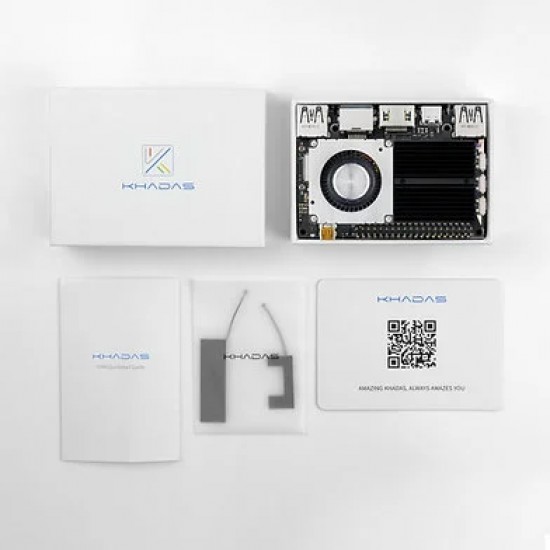

Package Includes:
1 x Khadas VIM4 Amlogic A311D2 SBC
2 x WiFi Antenna
