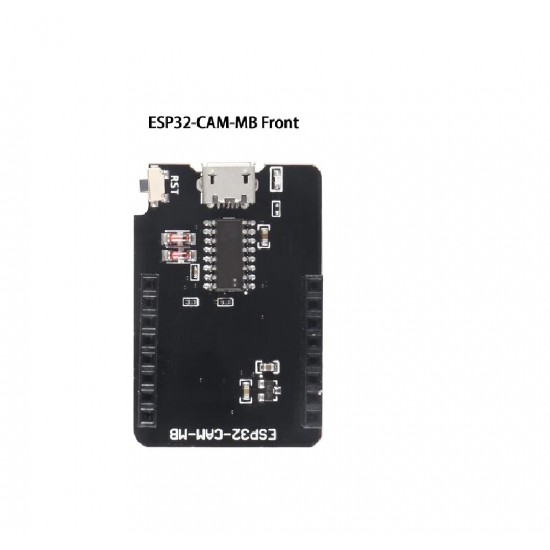

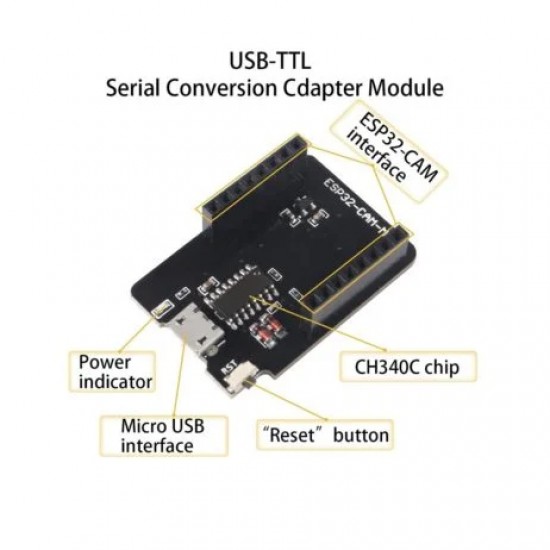

The ESP32-CAM AI-Thinker MB programmer Shield is a shield that you attach to your ESP32-CAM board GPIOs.The programmer comes with the CH340C USB to serial chip. This allows you to program the ESP32-CAM using the USB port on the shield. The shield also comes with a RESET button. This may be useful to easily reset the ESP32-CAM or put it into flashing mode.

Note: The camera module is not included with the board

Features:

The ESP32-CAM camera module is based on an ESP32 chip with an OV2640 2MP camera, built-in flash, also supports OV7670 cameras. Small and compact design, can fit on a solderless breadboard, saves space for your project.

Specifications: The board uses a high-performance dual-core 32-bit LX6 CPU, can be used as an application processor, integrates WiFi, traditional Bluetooth, and low power BLE. its main frequency adjustment ranges from 80MHz to 240MHz, adopts 7-stage pipeline architecture, on-chip sensor, Hall sensor, temperature sensor, and so on.

Features: the board is fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, have 9 GPIO ports, built-in 520 KB SRAM plus 4MB PSRAM, support UART/SPI/I2C/PWM and other interfaces, STA/AP/STA+AP working mode, maximum 4G TF card, image WiFI upload, multiple sleep modes, secondary development, etc.

Use: ESP32-CAM can be widely used in various IoT applications, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications.

Note: since comes with ESP32-CAM-MB: Micro USB to Serial Port CH340C chip, so no longer needs to use a converter to program it. Plug and play, use the Micro USB cable to connect the PC and the ESP32-CAM-MB board.

Features

  • Supports WiFi Image Upload.
  • Support multiple sleep modes.
  • Embedded Lwip and FreeRTOS.
  • Support secondary development.
  • Support STA/AP/STA+AP working mode.
  • Support OV2640 and OV7670 cameras, built-in flash.
  • Support Smart Config/AirKiss one-click network configuration.
  • Clock speed up to 160 MHz, Computing power up to 600 DMIPS.
  • Support for serial port local and remote firmware upgrades (FOTA).

Specifications:

Model: ESP32-CAM-MB

Color: Black

Chipset: CH340G

Connectivity: Micro-USB

IO port: 9

Power supply: 5V 2A

SPI Flash: default 32Mbit

RAM: built-in 520KB SRAM+4MB PSRAM

Wi-Fi: 802.11b/g/n/e/i

Bluetooth: Bluetooth 4.2 BR/EDR and BLE standards

Spectrum Range: 2412~2484MHz

Support TF card: maximum support 4G

Support Interface: UART, SPI, I2C, PWM

Serial Port Baud-rate: Default 115200 bps

Antenna: onboard PCB antenna, gain 2dBi

Security: WPA/WPA2/WPA2-Enterprise/WPS

Image Output Format: JPEG( OV2640 support only ), BMP, GRAYSCALE

Dimension:40x25x10 mm

Weight:6 gm

Package Includes:

1 x ESP32-CAM-MB MICRO USB Download Module for ESP32 CAM Development Board
