- Stock: In Stock
- Model: 9281
- SKU: SAT3451
- Location: India

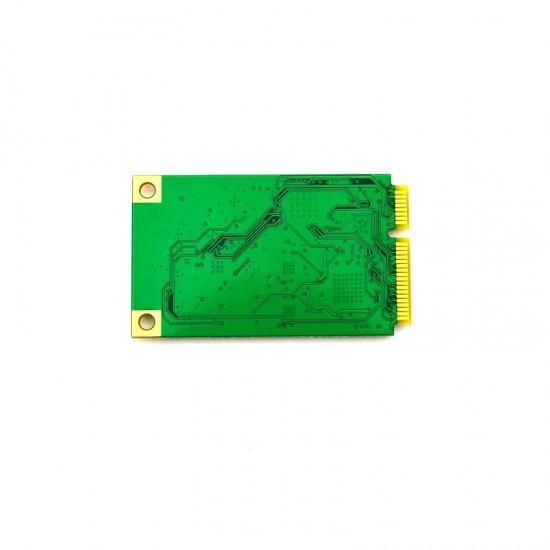

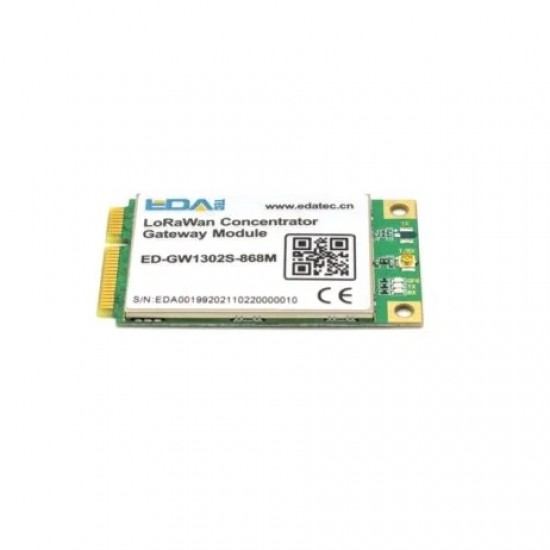

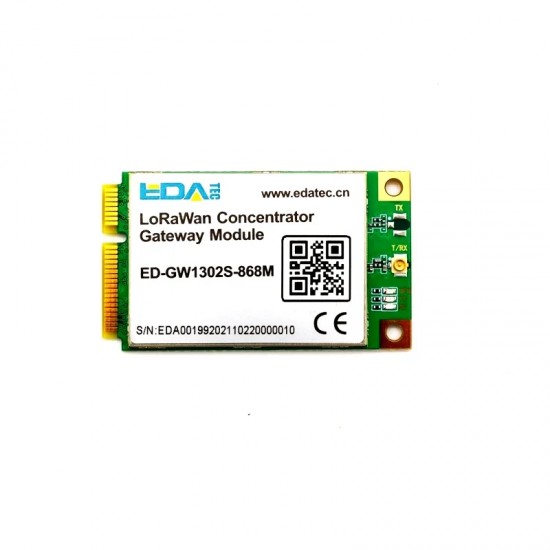

EDATec 868M Lora Module for EU base on SX1303 CE is a new generation of LoRaWAN gateway module in mini-PCIe form-factor with SPI interfaces based on Semtech® SX1303 and SX1250. It features extremely low power consumption, and outstanding performance with CE, FCC certified.
Block Diagram:
ED-GW1303S LoRaWAN gateway module support both US915 and EU868 frequency bands, enabling you to have a wide range of LoRaWAN frequency plan options to choose including EU868, US915, AS923, AS920, AU915, KR920,
and IN865. ED-GW1303S is designed for M2M and IoT applications and can be widely applied in LPWAN gateway-supported scenarios. It would be a perfect choice for you to significantly reduce the technical difficulties and time consumption when developing the LoRa gateway devices, including LoRaWAN gateway, miner hotspots, etc
Features:
- Mini PCIe form factor with SPI interfaces
- Powered by Semtech® SX1303 baseband processor
- Ultra-low operating temperature without additional heat dissipation needed
- High sensitivity with Semtech® SX1250 TX/RX front-end; TX power up to 25 dBm @3.3V
- Supports global license-free frequency band including EU868, US915, AS923, AU915, KR920 and IN865
- Certified with CE, FCC
Package Includes:
1 x EDATec 868M Lora Module for EU base on SX1303 CE
