Ai-Thinker Ai-WB2-12S Module

Ai-Thinker Ai-WB2-12S Module
Ai-Thinker Ai-WB2-12S Module
Ai-Thinker Ai-WB2-12S Module
Ai-Thinker Ai-WB2-12S Module
Ai-Thinker Ai-WB2-12S Module
Ai-Thinker Ai-WB2-12S Module
Ai-Thinker Ai-WB2-12S Module
Based on 0 reviews. - Write a review
₹249.00
Ex GST: ₹211.02
  • Stock: In Stock
  • Model: 9172
  • SKU: SAT3342
  • Location: India
Ai-Thinker Ai-Thinker
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

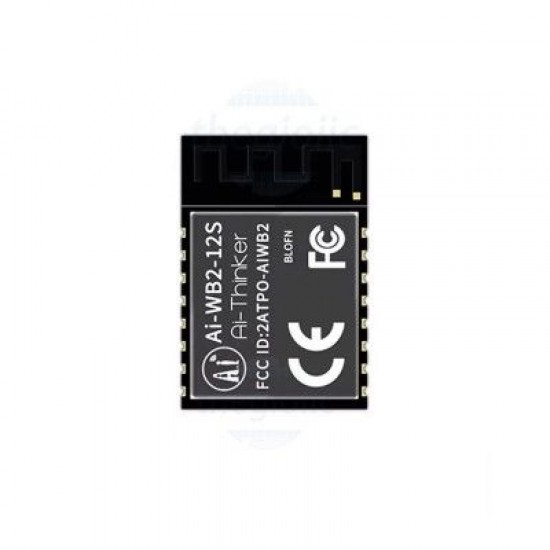

Ai WB2 12S is a Wi Fi&BT module developed by Shenzhen Ai Thinker Technology Co., LTD. The module is equipped with BL602 chip as the core processor and supports Wi Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low power 32 bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR and GPIO etc. It can be widely used in Internet of Things (IoT), mobile devices, wearable electronic devices, smart home and other fields.

Features:

  • The package is SMD 16
  • Support IEEE 802.11 b/g/n protocol
  • Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Support 20MHz bandwidth and Max rate is 72.2 Mbps
  • Bluetooth BLE 5.0, Bluetooth Mesh
  • Support Station + BLE mode Station + SoftAP + BLE mode
  • Support 32-bit RISC CPU276KB RAM
  • Secure start-up supports mirroring with ECC 256 signature
  • Support QSPI/SPI Flash On The Fly AES Decryption, support AES 128 CTR mode
  • Support AES 128/192/256-bit encryption engine
  • Support SHA 1/224/256
  • Support true Random number generator (TRNG)
  • Public key Accelerator (PKA), supports a large number of basic operations, the software provides a signature, verification, and other application program interface
  • Support SDIOSPIUARTI2CIR remotePWMADCDACPIRGPIO etc
  • Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
  • Support a variety of sleep modes, deep sleep current 12μA
  • Universal AT instruction for a quick start
  • Support secondary development, integrated Windows, and Linux development environment

Specifications:

Model: Ai WB2 12S

Package: SMD 16

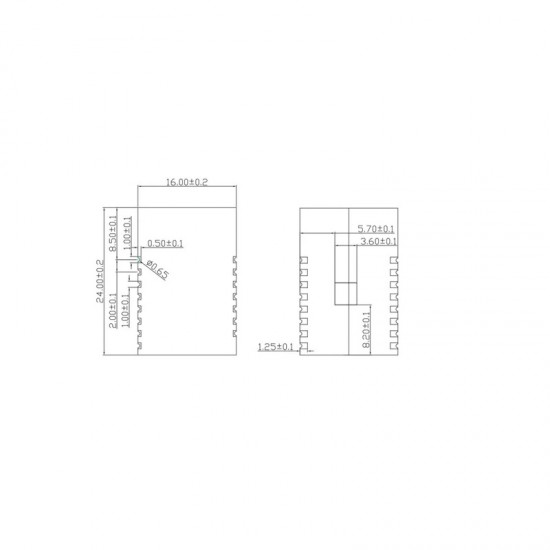

Size: 24.0*16.0*3.1(±0.2)mm

Antenna on board: PCB antenna

Frequency: 2400 ~ 2483.5MHz

Operating temperature: 40℃ ~ 85℃

Storage temperature 40℃ ~ 125℃, < 90%RH

Power supply Support voltage: 2.7V ~ 3.6V,

Supply current: ≥500mA

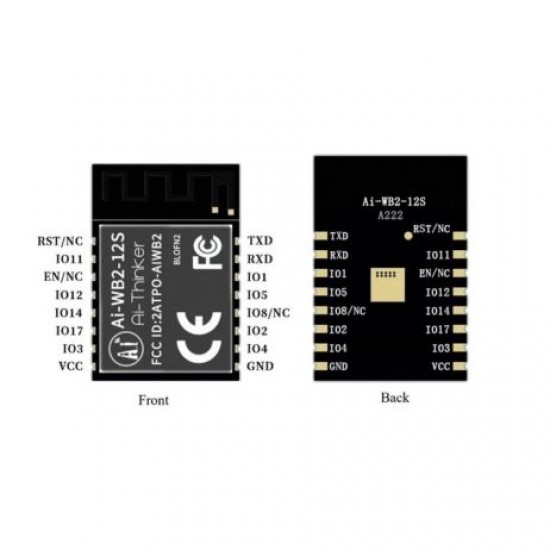

Interface: UART/GPIO/ADC/PWM/I2C/SPI IO 11 UART rate Default 115200 bps

Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3

Flash: Default 2MByte, MAX support 16MByte

Package Includes:

1 x Ai-Thinker Ai-WB2-12S Module
