Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera

Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Official Raspberry Pi 6 mm Wide Angle Lens for Pi High Quality Camera
Based on 0 reviews. - Write a review
₹2,449.00
Ex GST: ₹2,075.42
  • Stock: In Stock
  • Model: 8241
  • SKU: SAT2403
  • Location: India
Raspberry Pi Raspberry Pi
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

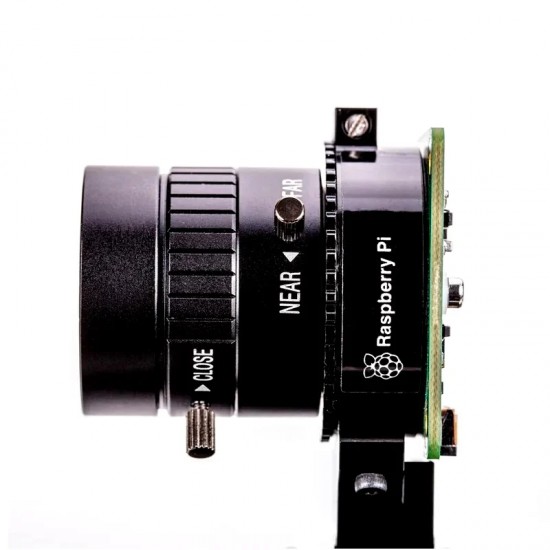

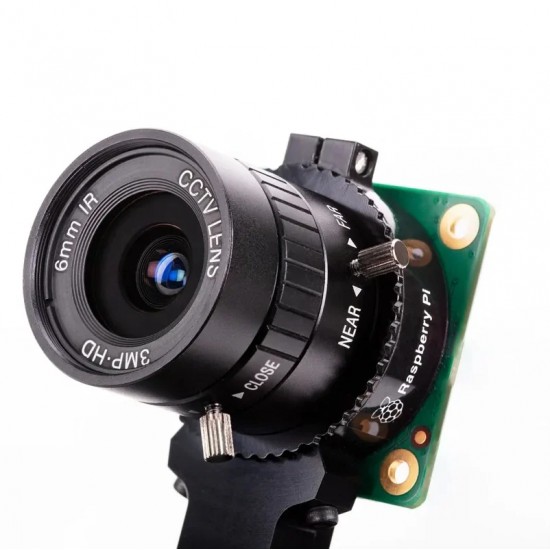

A low-cost 6 mm lens is available for the High-Quality Camera. This lens is suitable for basic photography. It can also be used for macro photography because it can focus on objects at very short distances. The lens is a CS-mount device, so it has a short back focus and does not need the C-CS adapter that comes with the High-Quality Camera. Rotate the lens clockwise all the way into the back focus adjustment ring.

The back focus adjustment ring should be screwed in fully for the shortest possible back-focal length. Use the back focus lock screw to make sure it does not move out of this position when adjusting the aperture or focus.

To adjust the aperture, hold the camera with the lens facing away from you. Turn the middle ring while holding the outer ring, furthest from the camera, steady. Turn clockwise to close the aperture and reduce image brightness. Turn anti-clockwise to open the aperture. Once you are happy with the light level, tighten the screw on the side of the lens to lock the aperture.

To adjust focus, hold the camera with the lens facing away from you. Hold the outer two rings of the lens; this is easier if the aperture is locked as described above. Turn the camera and the inner ring anti-clockwise relative to the two outer rings to focus on a nearby object. Turn them clockwise to focus on a distant object. You may find you need to adjust the aperture again after this.


Features:

  • Wide Field of View suitable for CCTV applications
  • Thumbscrew Adjustment for easy fitting
  • Front and back covers for protection


Package Includes:

1 x 6mm Wide Angle Lens

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
