HG7881 Two-Channel Motor Driver Board

HG7881 Two-Channel Motor Driver Board
HG7881 Two-Channel Motor Driver Board
Based on 0 reviews. - Write a review
₹118.00
Ex GST: ₹100.00
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7008
  • SKU: SAT1170
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

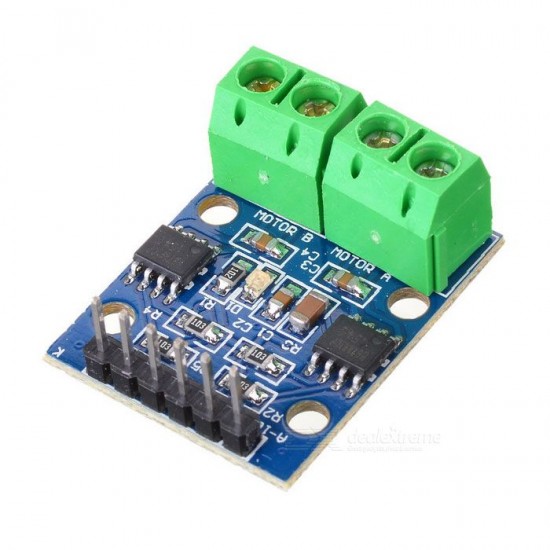

HG7881 Two-Channel Motor Driver Board is a very compact 2 way or dual-channel H-bridge Motor controller or driver module. The module has 2 L9110 IC that are capable to control either one stepper motor or 2 DC motors independently. It accepts a wide range of voltage supply from 2.5V to 12V, which makes the device compatible for both standard 3.3V and 5V microcontroller. Both motor controller chip can drive up to 800mA of continuous current. The module has a built-in output clamp diode to protect sensitive electronics like microcontrollers.

The module is suitable to control small robots. It has a set of headers pins to connect with a microcontroller and a set of 2 screw terminals to connect with motors that are very convenient. The speed of the motor can be easily controlled with PWM (pulse width modulation) signal and direct with digital output.


Features:

  • Can drive a stepper motor or 2 DC motors independently.
  • Built-in output clamp diode
  • Compact size
  • Wide range of voltage supply
  • Compatible with both standard 3.3V and 5V microcontroller
  • Mounting holes to mount easily

Specification:

  • Voltage supply range: 2.5V to 12V
  • Maximum output current: 800mA
  • Chip in the module: L9110s
  • Channel:  2

Package Includes:

1 x  HG7881 Two-Channel Motor Driver Board

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
