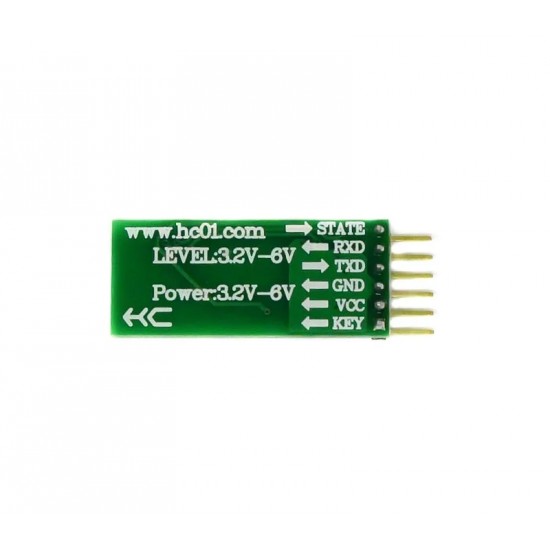

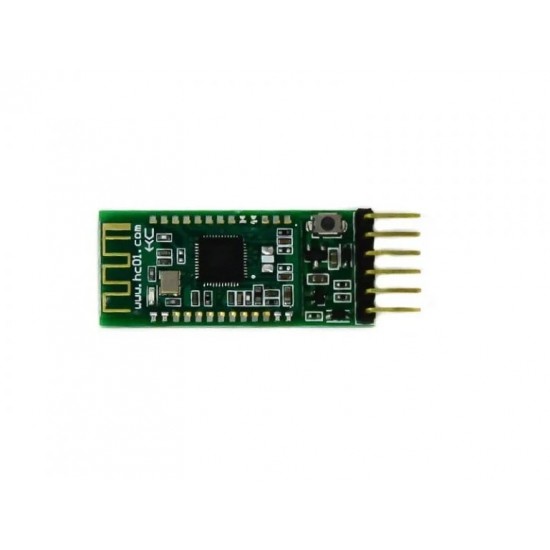

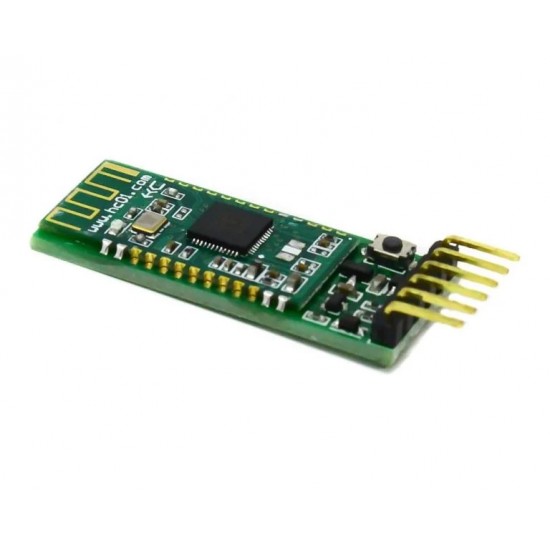

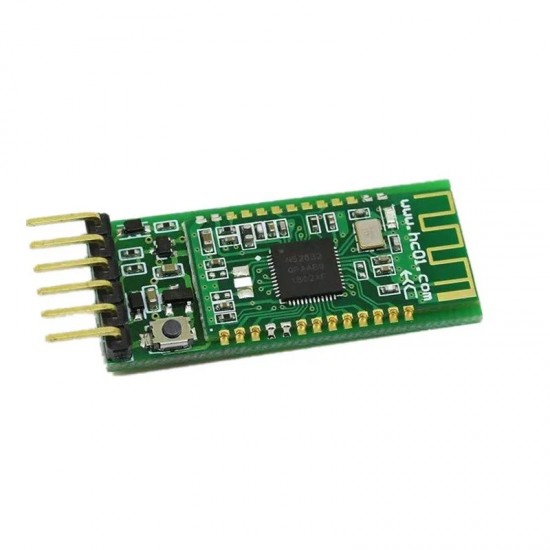

HC-42 6pin Bluetooth 5.0BLE Serial Port Module

Based on 0 reviews. - Write a review

₹979.00

Ex GST: ₹829.66

Stock: In Stock
Model: 9400
SKU: SAT3570
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

The HC-42 6pin Bluetooth 5.0BLE Serial Port Module is a new generation of digital transmission module based on the Bluetooth BLE V5.0 Bluetooth protocol. The working frequency band is 2.4GHz ISM, and the modulation method is GFSK. The module’s maximum transmit power is 4dBm and the receiving sensitivity is -96dBm.

TheHC-42 6pin Bluetooth 5.0BLE Serial Port Module uses BLE (Bluetooth Low Energy) protocol. The main difference between Bluetooth and BLE is power consumption. Bluetooth consumes more power than BLE but can handle a lot of data. BLE is more appropriate for quickly transferring small amounts of data between nearby devices. BLE is less power-hungry, so the devices running this protocol can operate for years with a small battery; perfect for IoT!

Specifications :

Part Number: HC-42D

Version: BLE 5.0

Module Size: 37mm *15.6 mm

Frequency Band: 2.4G

Air Rate: 1Mbps/2Mbps

Working Voltage: 1.8~3.6V

Antenna: PCB internal antenna

Shutdown Current: 0.3μA

Communication Interface: UART

Sensitivity: -96dBm@1Mbps

Level: 1.8~3.6V，Same to Working Voltage

Working Humidity: 10％~90％

Transmit Power: -40~4dBm

Storage Temperature: -40℃~+85℃

Reference Distance: 40m/2Mbps（BLE 5.0）

Working Temperature: -25℃~+75℃

Package Includes :

1 x HC-42 6pin Bluetooth 5.0BLE Serial Port Module.
