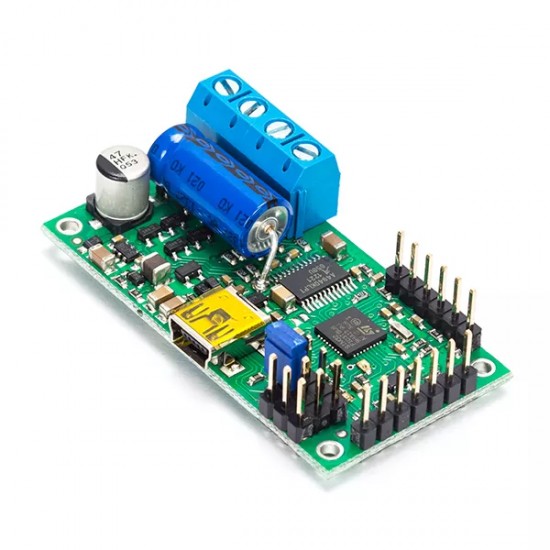

Simple Motor Controller 18v7 (Fully Assembled)

Simple Motor Controller 18v7 (Fully Assembled)
Simple Motor Controller 18v7 (Fully Assembled)
Based on 0 reviews. - Write a review
₹3,400.00
Ex GST: ₹2,881.36
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7938
  • SKU: SAT2100
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This Simple Controller 18v7 makes basic control of brushed DC motors easy, with free Simple Motor Control Center software enabling quick configuration over USB. This version operates from 5.5 to 30 V and is efficient enough to deliver a continuous 7 A (>30 A peak) without a heat sink. It ships with the power capacitor and connectors installed as shown. With a variety of supported interfaces—­USB for direct connection to a computer, TTL serial for use with embedded systems, RC hobby servo pulses for use as an RC-controlled electronic speed control (ESC), and analog voltages for use with a potentiometer or analog joystick—­and a wide array of configurable settings, these motor controllers make it easy to add basic control of brushed DC motors to a variety of projects. Although this motor controller has many more features than competing products, a free configuration utility (for Windows 7, Vista, Windows XP, and Linux) simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB.


Features:

  • Simple bidirectional control of one DC brush motor.
  • 5.5 V to 30 V operating supply range.
  • 7 A to 25 A maximum continuous current output without a heat sink, depending on controller model.
  • Four communication or control options
  • Simple configuration and calibration over USB with free configuration program (Windows 7, Vista, Windows XP, and Linux compatible).

Specifications:

  • Motor channels: 1
  • Control interface: USB; non-inverted TTL serial;RC servo pulses; analog voltage
  • Minimum operating voltage: 5.5 V
  • Maximum operating voltage: 30V
  • Continuous output current per channel: 7A
  • Maximum PWM frequency: 21.77 kHz
  • Maximum logic voltage: 3.3 V
  • Reverse voltage protection: No
  • Partial kit: No

Dimensions

  • Size:  2.1" x 1.1" x 0.5"
  • Weight: 14 g

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
