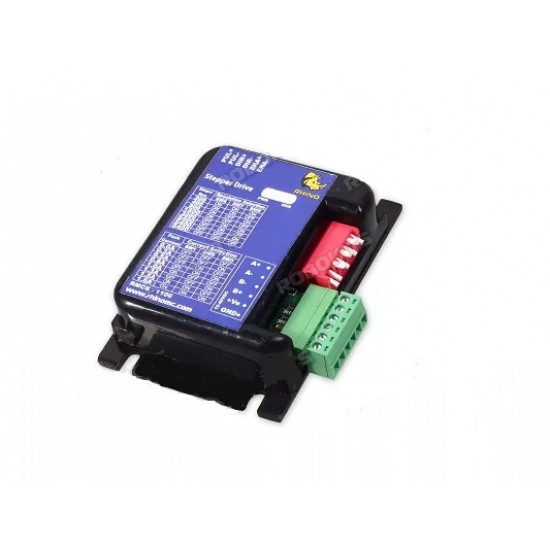

RHINO MICRO-STEPPING STEPPER MOTOR DRIVE 15-50V 5AMP

RHINO MICRO-STEPPING STEPPER MOTOR DRIVE 15-50V 5AMP
RHINO MICRO-STEPPING STEPPER MOTOR DRIVE 15-50V 5AMP
RHINO MICRO-STEPPING STEPPER MOTOR DRIVE 15-50V 5AMP
RHINO MICRO-STEPPING STEPPER MOTOR DRIVE 15-50V 5AMP
RHINO MICRO-STEPPING STEPPER MOTOR DRIVE 15-50V 5AMP
Based on 0 reviews. - Write a review
₹2,491.99
Ex GST: ₹2,111.86
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7937
  • SKU: SAT2099
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

RMCS-1102 is Rhino Motion Controls new and improved DSP based micro-stepping drive for 1.8deg Bipolar Stepper Motors. It is designed for smooth and quiet operation without compromising on torque and control at higher speeds. It has short-circuit protection for the motor outputs, over-voltage and under-voltage protection.

The RMCS-1102 achieves micro-stepping using a synchronous PWM output drive and high precision current feedback and this is absolutely silent when the motor is stopped or turning slowly. It virtually eliminates stopped-motor heating regardless of power supply voltage using a DSP based PID current control loop.

The RMCS-1102’s closed-loop control gains are calibrated on start-up based on motor characteristics and also adjusted dynamically while the motor is in motion. This control algorithm makes it capable of achieving better torque at higher speeds in comparison to comparable drives in its range.

The PULSE/STEP, DIRECTION inputs are optically isolated. Both inputs work with 2.5V, 3.3V or 5V logic drive signals. The input drive current is 5mA at 2.5V so almost all logic family (74LS, 74HC, etc.) can be used to drive these inputs. Each input provides individual anode and cathode connections to the opto-isolator allowing for multiple input drive interfaces.



6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
