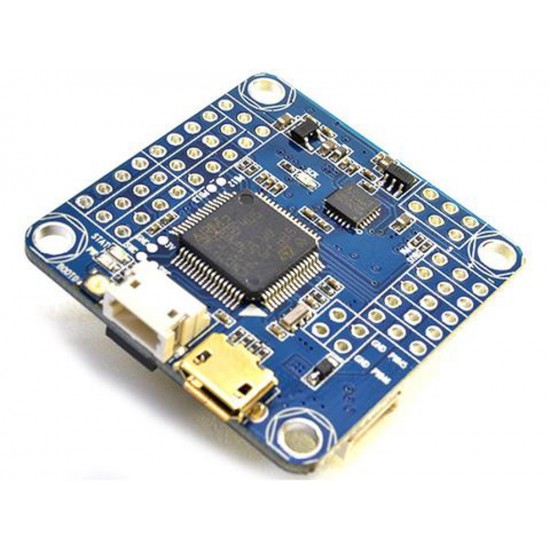

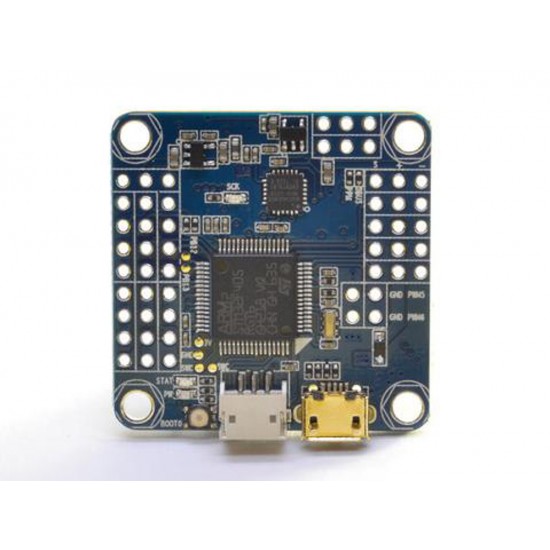

Omnibus F4 V2 PRO Flight Controller with Built-in OSD

Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Omnibus F4 V2 PRO Flight Controller with Built-in OSD
Based on 0 reviews. - Write a review
₹1,990.00
Ex GST: ₹1,686.44
  • Stock: In Stock
  • Model: 8373
  • SKU: SAT2535
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The Omnibus F4 V2 PRO Flight Controller with Built-in OSD  has the F4 processor, built-in OSD, video filtering, and LDO. Tuning could not be easier with the help of the black box and tuning via the transmitter in the OSD. The Flip32 Omnibus flight controller uses the MPU6000 over SPI for the best possible flight performance.

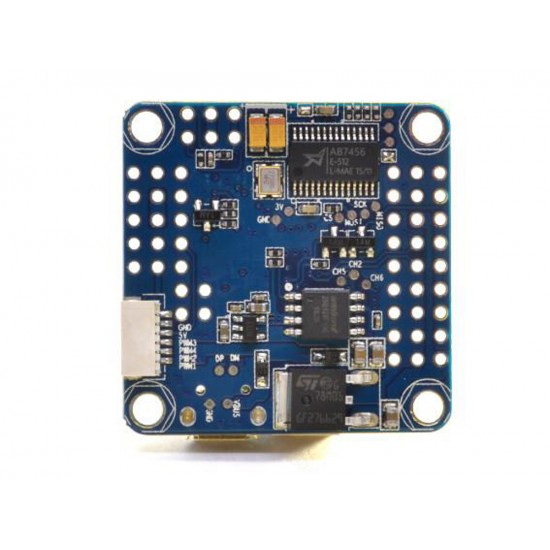

Along with the MPU6000 are a and an AB7456 OSD chip (an upgraded MAX7456) for the beta flight integrated OSD. You won’t need a PDB with this build because there is a high-performance 5v, 1.5a STMicrocontroller L78 voltage regulator, so you can plug the flight battery right into the flight controller. The  Flip32 Omnibus flight controller the first  F4 flight controller with a MAX7456 OSD chip directly connected to the flight controller, so it can be configured from the beta flight configurator.

This is the standard version, based on F405 Microprocessor, includes 128Mbit Flash memory. This flight controller is supported by Beta flight (3.0.1 and up), Race light and D-ronin.

This flight controller requires BetaFlight 3.0 & Beta flight configurator to take full advantage of the OSD

Install The Beta flight Configurator. New OSD Tab In Beta Flight Configurator Lets You Set Up And Configure OSD Settings On The Fly!


Features:

  • STM32 F405 MCU
  • Runs Beta flight (3.0.1 and up)
  • Race light and D-ronin firmware
  • SBUS/PPM input (Pinheaders)
  • 6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
  • Only 36x36mm, mount holes 30.5×30.5mm
  • SPI Sensor MPU6000
  • 128Mbit Flash Memory

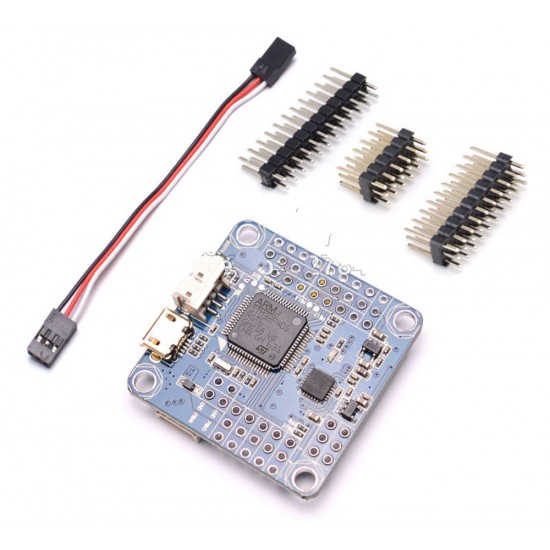

Package Includes:

1 x Omnibus F4 V2 PRO Flight Controller with Built-in OSD

1 x 3 line Servo Cable

2 x Burg Connectors

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
