FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller

FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
Hot
FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller
Based on 0 reviews. - Write a review
₹2,319.00
Ex GST: ₹1,965.25
  • Stock: In Stock
  • Model: 8061
  • SKU: SAT2223
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

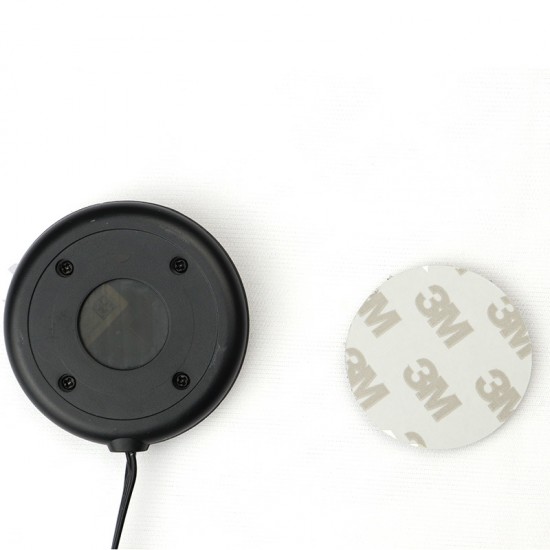

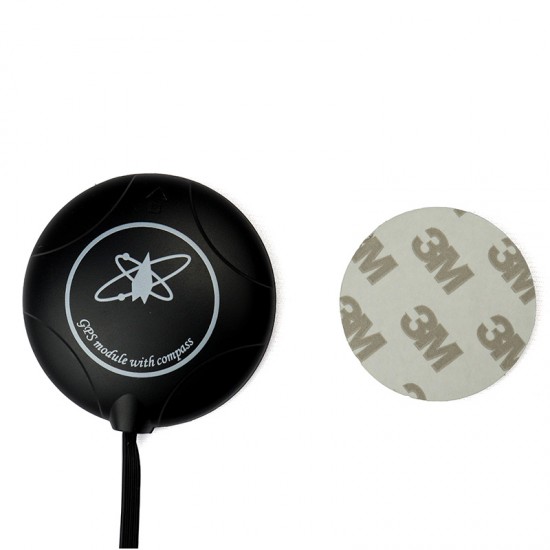

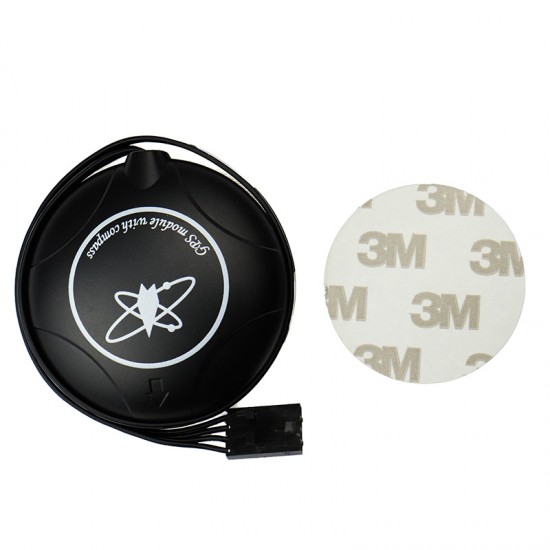

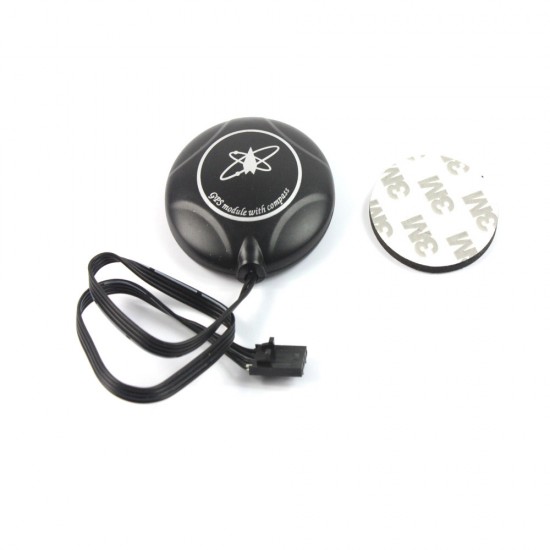

FPV NEO-M8N GPS amp Compass Support DJI Naza M V1 & V2 Lite Flight Controller.  A new generation GPS NEO-M8N, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy, support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more.

Using 32-bit processor, compatible with NAZA M V1 & V2 flight controller, incomparably superior to 8-bit processor. Please take notice of the arrow on GPS, which stands for the head of a flyer. Similar calibration and usage with GPS. Coming with soft silicone gel cable 30cm. For softness, black rubber was wrapped on a surface. (Notice: black cable= GND, white cable=TX, yellow cable=RX, red cable=5V, 3.3-7.5V is ok), Metal foil label has been mounted on the bottom of GPS to reduce signal interference from other electronic types of equipment

Note: To calibrate the electronic compass is the first important thing when received your GPS.


Calibration Method:

Connect GPS to Flight controller, dial the model switch of radio control 7-10 times, LED light turns orange; Turn the flyer horizontally one circle, then the LED light turns green; Make the head of a flyer downwards and turn it one circle, then the LED light flashed on.


Feature:

  1. Assistance AssistNow GNSS Online.
  2. AssistNow GNSS Offline (up to 35 days)3.
  3. AssistNow Autonomous (up to 6 days).
  4. OMA SUPL & 3GPP compliant.
  5. Oscillator TCXO (NEO-M8N/Q).
  6. Crystal (NEO-M8M).
  7. RTC crystal Built-In.
  8. Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
  9. Lowest noise figure (NEO-M8N/Q).
  10. Anti-jamming Active CW detection and removal. Extra.
  11. Onboard SAW bandpass filter (NEO-M8N/Q).
  12. Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
  13. Supported antennas Active and passive.
  14. Odometer Travelled distance.
  15. Data-logger For position, velocity, and time (NEO-M8N).
  16. RoHS compliant (lead-free).
  17. Manufactured and fully tested in ISO/TS 16949 certified production sites.
  18. Uses M8 chips qualified according to AEC-Q100.
  19. Supply voltage 1.65 V to 3.6 V (NEO-M8M).
  20. Power consumption4 23 mA @ 3.0 V (continuous).
  21. 5 mA @ 3.0 V Power Save Mode.
  22. (1 Hz, GPS mode only).
  23. NEO-M8N-0 M8 Concurrent GNSS LCC Module.
  24. TCXO, flash, SAW, LNA.
  25. Time pulse Configurable 0.25 Hz to 10 MHz.
  26. Using 32-bit processor, compatible with DJI NAZA LITE V1 & V2 flight controller, incomparably superior to the 8-bit processor.
  27. Please take notice of the arrow on GPS, which stands for the head of the flyer.
  28. Similar calibration and usage with DJI GPS.
  29. Coming with soft silicone gel cable 30cm.
  30. For softness, black rubber was wrapped on the surface.

(Notice: black cable= GND, white cable=TX, yellow cable=RX, red cable=5V, 3.3-7.5V is ok).

Metal foil label has been mounted on the bottom of GPS to reduce signal interference from other electronic equipment.


Package Includes:

1 x FPV NEO-M8N GPS amp Compass Support DJI Naza M.

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
