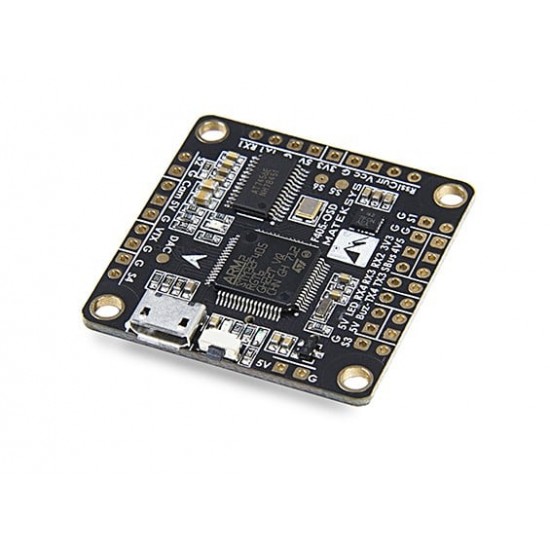

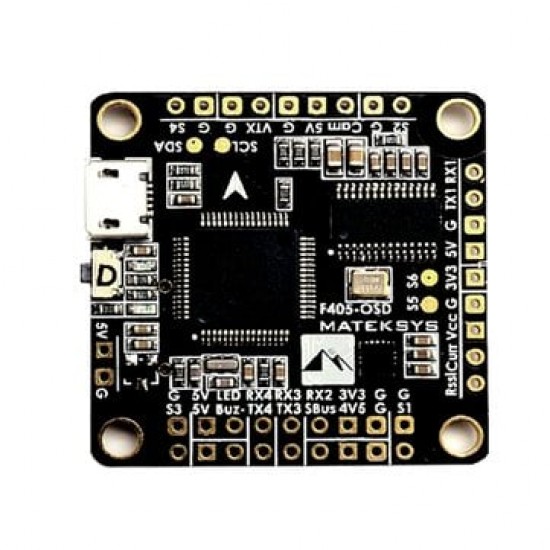

The Matek F405-OSD Flight Controller comes with lots of features. From the high-speed, 168MHz, 32bit F405 processor to BetaFlight firmware and OSD this flight controller has the power to easily control your drone. It also has a black box to help you fine-tune your drone or to help determine what went wrong with any mishap. The OSD provides detailed information on battery voltage and other information.

The FC board is lightweight  (7g) and of standard FC size (36 x 36mm) to easily fit into any drone.


Features:

  • Support 32K Gyro update & 16K PID Loop.
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Beeper: Yes.
  • RSSI: Yes.

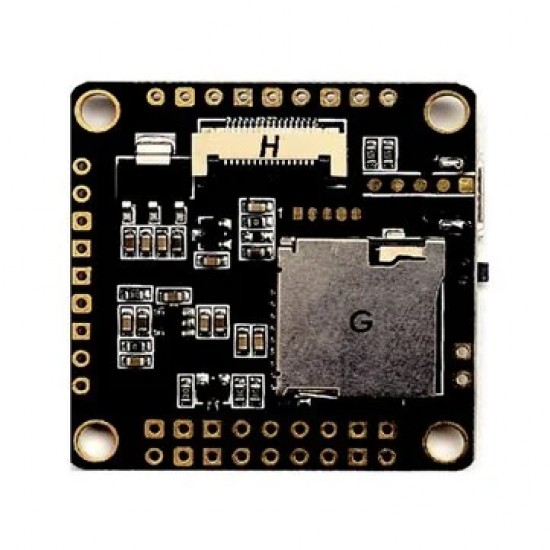

  • Blackbox: MicroSD card slot (SD/SDHC).
  • VCP, UART1, UART2, UART3, UART4, UART5.
  • Built-in inverter for SBUS input (UART2-RX).
  • PPM/UART Shared: UART2-RX.
  • Support SoftSerial on S5 & S6.
  • Battery Voltage Sensor: 1:10.
  • Current Sensor: No (FCHUB-6S option).
  • BEC 5V & 10V: No (FCHUB-6S option).
  • LDO 3.3V: Max.300mA for Spektrum RX.
  • Spektrum BIND_PIN: RX4.
  • WS2812 Led Strip: Yes.
  • 2x LEDs for FC STATUS (Blue, Red).
  • 6x PWM / DShot outputs without conflict.
  • 5x UARTs.
  • 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND.
  • 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
  • 1x Side-press button for BOOT(DFU) mode.
  • 1x 16pin bottom mounted FFC Slot for FCHUB-6S connection.


Highlights:

168MHz STM32F405RGT6

6-axis ICM-20602 (3-axis gyroscope. 3-axis accelerometer)

BetaFlight OSD

MicroSD BlackBox

VCP and 5 x UARTs

6 PWM/DSHOT outputs

MatekF405 Target


Requires:

1 x Micro SD card (Up to 4GB)

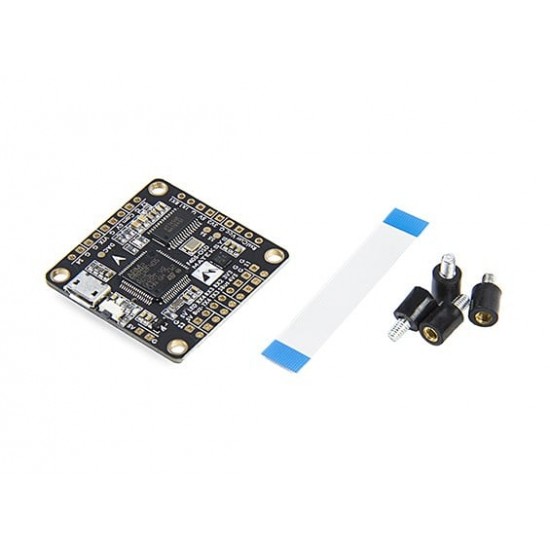

Package Includes:

1 × F405-OSD Flight Controller Board

1 × w/ 1x 0.5mm*16Pin 5cm Flexible Flat Cable

1 × w/ 4pcs M3 Anti-vibration Standoffs
