JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro Black Box 2-6S LIPO F411 Flight Controller acro

JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro Black Box 2-6S LIPO F411 Flight Controller acro
JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro Black Box 2-6S LIPO F411 Flight Controller acro
JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro Black Box 2-6S LIPO F411 Flight Controller acro
JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro Black Box 2-6S LIPO F411 Flight Controller acro
JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro Black Box 2-6S LIPO F411 Flight Controller acro
Based on 0 reviews. - Write a review
₹2,529.00
Ex GST: ₹2,143.22
  • Stock: In Stock
  • Model: 8071
  • SKU: SAT2233
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

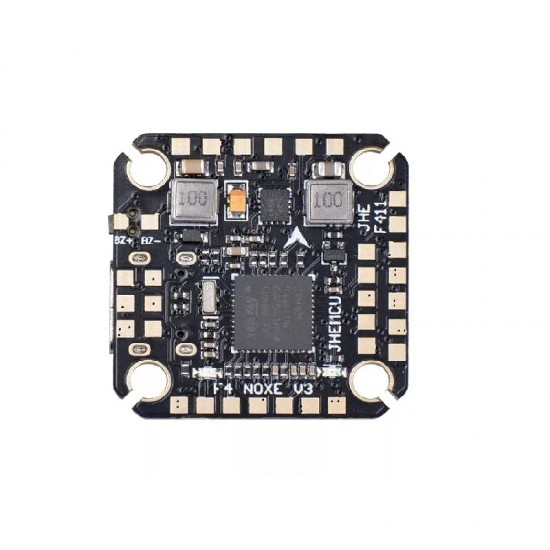

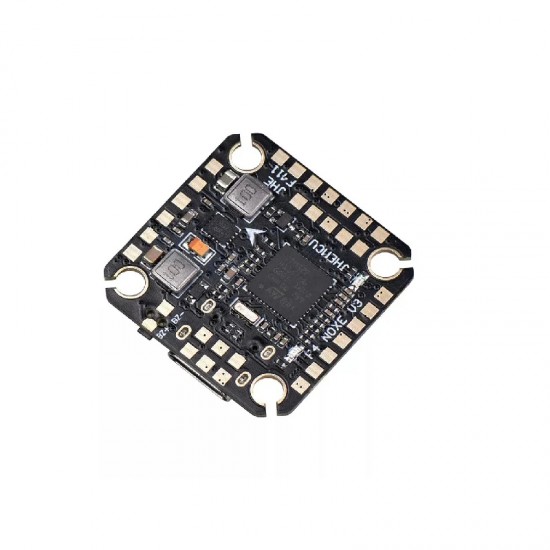

JHEMCU F4 NOXE V3 5V 10V BEC OSD Baro Flight Controller ARCO  was designed to give awesome flight performance based on tried and tested sensors whilst also providing unparalleled I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU

A flight controller (FC) is a small circuit board of varying complexity. Its function is to direct the RPM of each motor in response to input. A command from the pilot for the multi-rotor to move forward is fed into the flight controller, which determines how to manipulate the motors accordingly.

Every part of the drone is controlled by a flight controller. It moves the drone by changing the RPM of the motors. It is a control system that takes input from the sensors and makes the drone fly accordingly. This is a small computer board with various sensors which understand the movement of the craft. It has sensors like Gyroscope, Accelerometer, Barometer and Magnetometer. According to the signal comes from the transceiver , it controls the motors and craft.

The board is rock solid and gives great performance with the HAKRC 20 A ESC, except that you have to switch the motors 1 & 2 to get the motor connections right. The barometer does not work great. Even though I packed a sponge above it, it starts bouncing hard when I switch on ALT hold mode. The OSD is the best and it works flawlessly, as does the VCC feed, whcih gives you the actual battery voltage reading through betalight. Else all great, good light and powerful board for a micro build.


Features:

  • Compact In size
  • Color: black
  • Easy to install
  • High performance flight controller module
  • very use to product


Specifications:

  1. Brand (trade name): JHEMCU
  2. Model: F4 NOXE V3
  3. Main control (MCU): STM32F411CEU6/100 MHz
  4. Sensor: BMI 270/Gyro/Accel
  5. Video Overlay (OSD): AT7456E
  6. Barometer (Baro): Yes (Deluxe version only)
  7. Black Box (Black Box): 16MB (Deluxe Edition only)
  8. Input voltage: Input voltage: 2S-6S (7.4V-26V)
  9. 5V-BEC: 5V/2.5A ± 0.1V
  10. 10V-BEC: 10V/2A+0.1V
  11. Receivers (receivers): ELRs (CRSF), TBS (CRSF), SBU, IBU, DS M2, DS MX
  12. HD interface: yes
  13. UART: UART 1, UART 2
  14. LIC: IIC1
  15. LED strip: yes
  16. Buzzer (buzzer): support 5V active
  17. ESC signal (ESC signal): PWM, Oneshot125, Oneshot42, Multishot,
  18. Dail 150, Dail 300, Dail 600
  19. USB: Micro USB
  20. Current terminal] (current port): yes
  21. Voltage sensor (voltage sensor): Yes
  22. Dfu button (dfu button): Yes
  23. Firmware (Firmware): Betaflight_4.3.0 JHEF 411.HEX
  24. Mounting hole: 20 x 20 x 3mm
  25. Size: 27 x 27 x 5mm
  26. Weight (weight): 4.3g

Note: The BMI 270 gyroscope only supports 4.3.0 firmware. Please do not flash the other version firmware.


Packages Includes:

1 x JHEMCU F4 NOXE V3  Flight Controller

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
