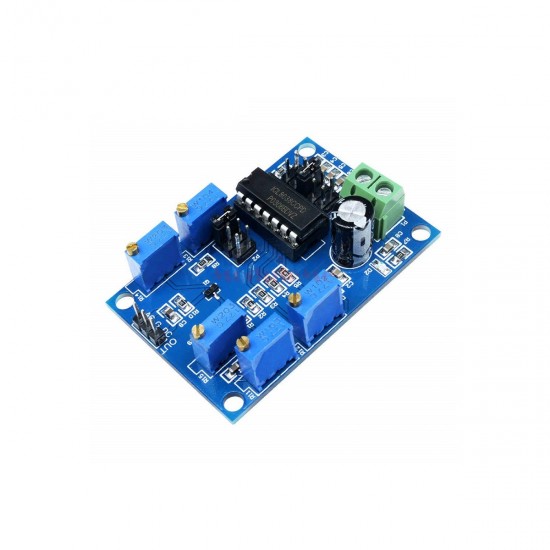

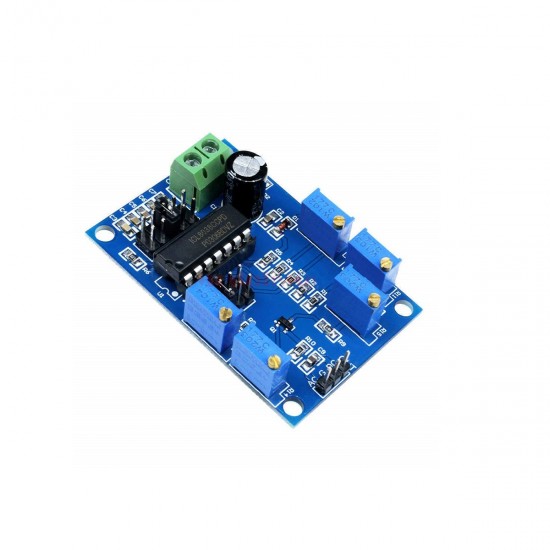

The LC ICL8038 module is designed for common frequency ranges. It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 10Hz to 450KHz. A sine wave can be used for test signals, drive signals, carrier frequency signals, etc; a square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.

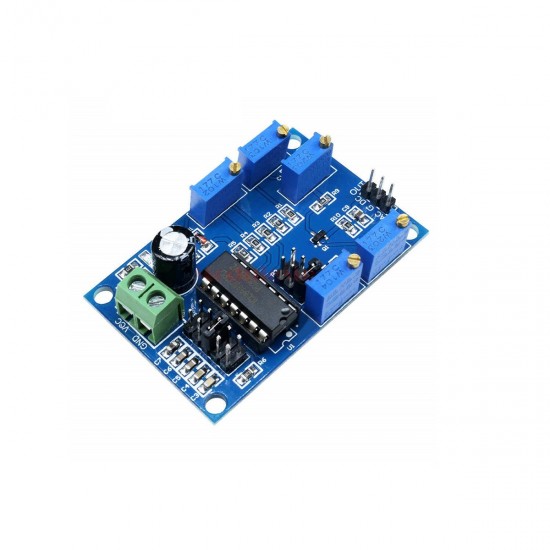

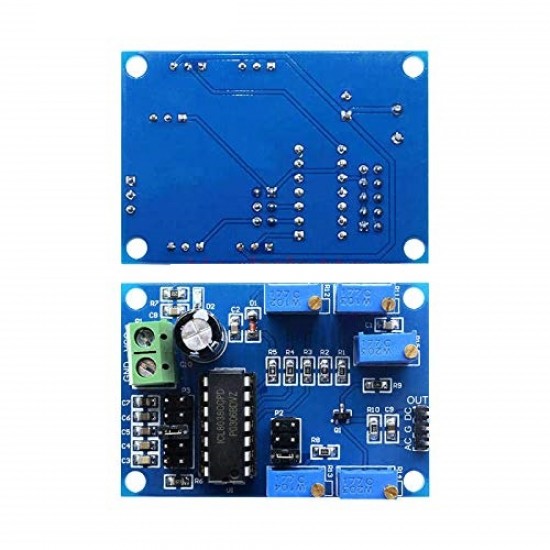

Function:

VCC, GND: working voltage

AC: with DC bias output

G: ground

DC: pure signal output

R11: Frequency adjustment

R12: Square wave duty cycle adjustment

R13: Sine wave linear adjustment

R14: Amplitude adjustment

R15: Square wave linear adjustment

Jumper P2: select different wave-forms(triangular, square or sine waves)

Jumper P3: select different frequency ranges

10Hz-450Hz,90Hz-1.5KHz,940Hz-15KHz,6KHz-120KHz,20KHz-450KHz


Features:

  • The LC ICL8038 module is designed for common frequency ranges.
  •  It is adjustable from 5 gears and generates low-distortion triangular waves, square and sine waves from 0Hz to 450KHz.
  • Sine waves can be used for test signals, drive signals, carrier frequency signals, etc.
  • A square wave can be used for switching signals, trigger signals, etc; the triangular wave is mainly used for scanning signals.
  •  Portable design, easy to operate.

Package Includes :

1 x ICL8038 12V to 15V Signal Generator 10Hz-450KHz Module

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
