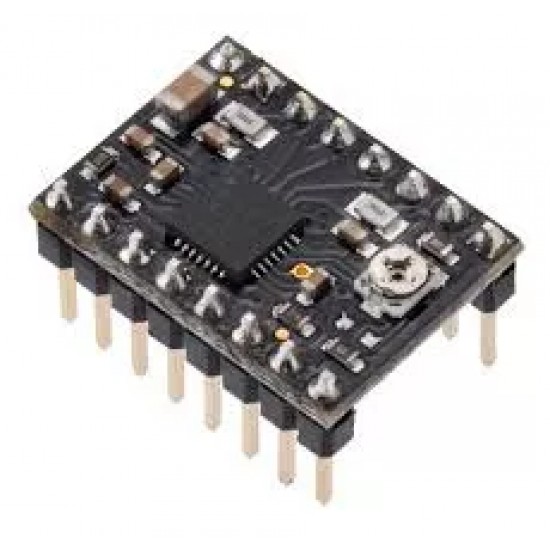

A4988 Stepper Motor Driver Carrier, Black Edition(Soldered)

A4988 Stepper Motor Driver Carrier, Black Edition(Soldered)
A4988 Stepper Motor Driver Carrier, Black Edition(Soldered)
Based on 0 reviews. - Write a review
₹1,010.00
Ex GST: ₹855.93
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7939
  • SKU: SAT2101
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help
This is a bulk-packaged version of Pololu's Black Edition A4988 Stepper Motor Driver Carrier that ships with 0.1″-pitch male header pins installed as shown in the main product picture, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard.  It features a four-layer PCB for better thermal performance, allowing the A4988 microstepping bipolar stepper motor driver to deliver approximately 20% more current than two-layer (green) version. Black Edition offers adjustable current limiting, over-current and over-temperature protection, and five different microstep resolutions. It operates from 8 V to 35 V and can deliver up to 2 A per coil with sufficient additional cooling.

Features:
  • Simple step and direction control interface
  • Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
  • Short-to-ground and shorted-load protection
  • 4-layer, 2 oz copper PCB for improved heat dissipation
  • Exposed solderable ground pad below the driver IC on the bottom of the PCB
Specifications:
  • Minimum operating voltage: 8 V
  • Maximum operating voltage: 35 V
  • Continuous current per phase: 1.2 A1
  • Maximum current per phase: 2 A2
  • Minimum logic voltage: 3 V
  • Maximum logic voltage: 5.5 V
  • Microstep resolutions: full, 1/2, 1/4, 1/8, and 1/16
  • Reverse voltage protection?: N
  • Bulk packaged: Y
  • Header pins soldered: Y
