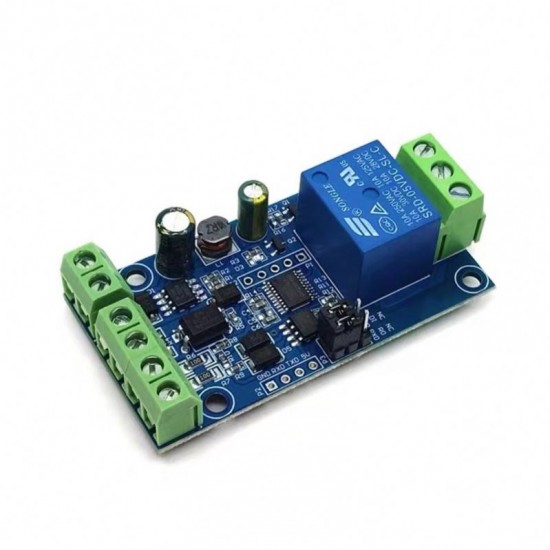

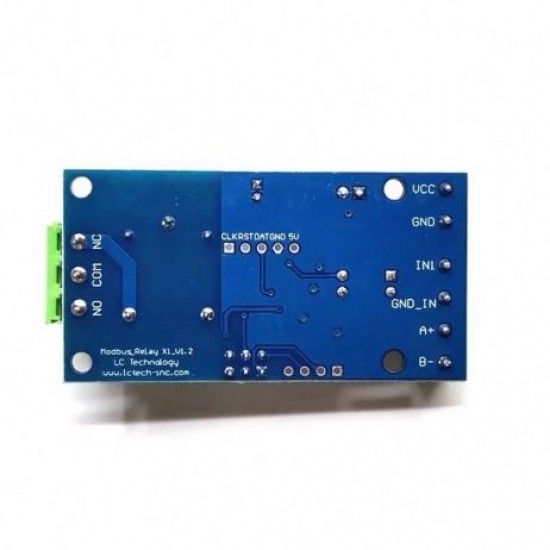

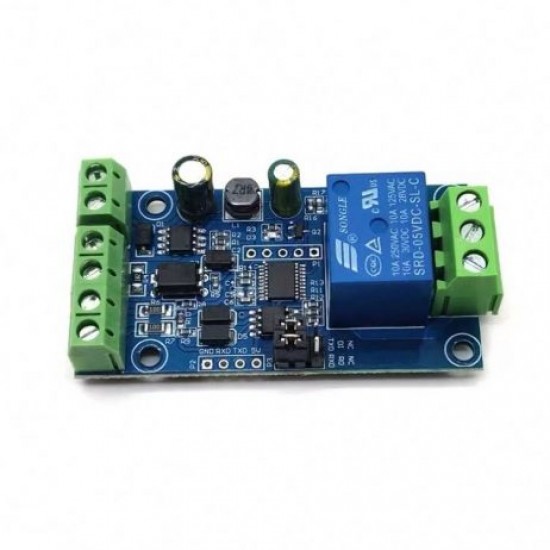

7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection

7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection
7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection
7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection
7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection
7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection
7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection
7-24V Modbus RTU 1, Channel Relay Module, RS485/TTL Anti-reverse, Connection
Based on 0 reviews. - Write a review
₹579.00
Ex GST: ₹490.68
  • Stock: In Stock
  • Model: 9786
  • SKU: SAT3956
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

LC 1 channel Modbus relay module equipped with mature and stable 8-bit MCU and RS485 level communication chip,adopt standard MODBUS RTU format RS485 communication protocol, It can realize 1-way input signal detection and 1-way relay output, can be used for digital detection or power control occasions.

Features:

1. On-board mature and stable 8bit MCU and MAX485 level conversion chip

2. Communication protocol: support standard Modbus RTU protocol

3. Communication interface: Support RS485 / TTL UART interface

4. Communication baud rate: 4800/9600/19200, default 9600bps, support power saving

5. Photocoupler input signal range: DC3.3-30V (This input cannot be used for relay control)

6. Output signal: relay switch signal, support manual, flash-off, flash-off mode, the delay base of flash-off / flash-off is 0.1S, the maximum settable flash-off / flash-off time is 0xFFFF * 0.1S = 65535 * 0.1 S = 6553.5S

7. Device address: range 1-255, default 255, support power-down save

8. Onboard one 5V, 10A / 250V AC 10A / 30V DC relay, which can continuously attract 100,000 times, with diode leakage protection, short response time

9. Onboard relay switch indicator

10. Supply voltage: DC7-24V, with input anti-reverse protection

Package includes:

1 x 7-24V Modbus RTU 1 Channel Relay Module RS485

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.
