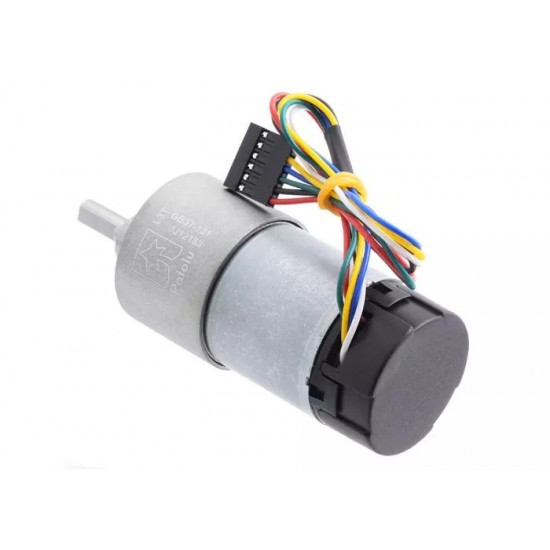

131:1 Metal Gearmotor 37Dx73L mm With 64 Cpr Encoder

131:1 Metal Gearmotor 37Dx73L mm With 64 Cpr Encoder
131:1 Metal Gearmotor 37Dx73L mm With 64 Cpr Encoder
Based on 17 reviews. - Write a review
₹4,020.00
Ex GST: ₹3,406.78
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7909
  • SKU: SAT2071
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

131:1 Metal Gearmotor 37Dx73L mm with 64 CPR Encoder  is a powerful 12V brushed DC motor with a 131.25:1 metal gearbox and an integrated quadrature encoder.It has a resolution of 64 counts per revolution of the motor shaft, which corresponds to 8400 counts per revolution of the gearbox’s output shaft. These units have a 0.61"-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available without an encoder.These motors are intended for use at 12 V, though in general, these kinds of motors can run at voltages above and below the nominal voltage (they can begin rotating at voltages as low as 1 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.

Specifications:

  •   Gear ratio:     131:1
  •   Free-run speed @ 6V:     40 rpm2
  •   Free-run current @ 6V:     250 mA2
  •   Stall current @ 6V:     2500 mA2
  •   Stall torque @ 6V:     125 oz·in2
  •   Free-run speed @ 12V:     80 rpm
  •   Free-run current @ 12V:     300 mA
  •   Stall current @ 12V:     5000 mA
  •   Stall torque @ 12V:     250 oz·in
  •   Lead length:     11 in

Dimensions:

  •   Size:     37mm Diameter x 72.5Length mm
  •   Weight:     250 g
  •   Shaft diameter:     6 mm

Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. Stalls can also result in rapid (potentially on the order of seconds) thermal damage to the motor windings and brushes; a general recommendation for brushed DC motor operation is 25% or less of the stall current.

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
