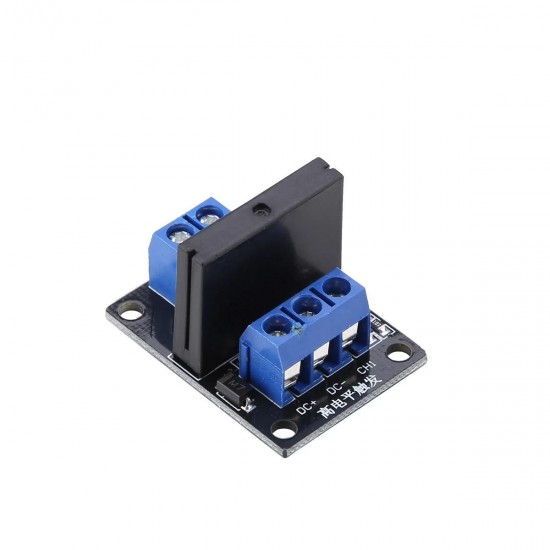

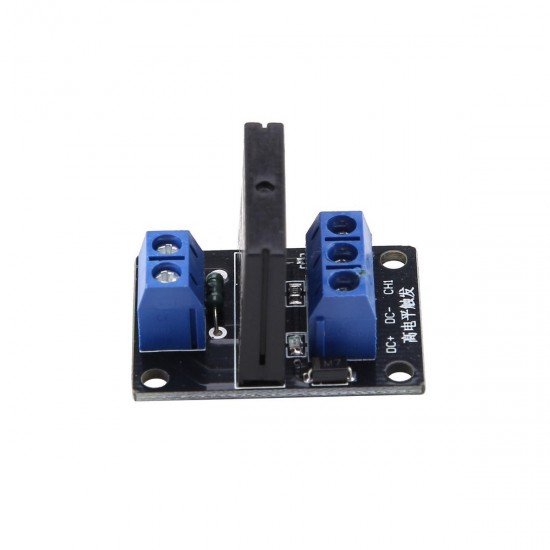

1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse

1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
Based on 0 reviews. - Write a review
₹249.00
Ex GST: ₹211.02
  • Stock: In Stock
  • Model: 9726
  • SKU: SAT3896
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

It is an Ingenex 3-24VDC 50V solid state relay 2A, output with resistance type fuse 50V 2A. The input control signal voltage for the relay module is: (the state of the 0-2.5V low-level relay OFF; the state of the 3-24V high-level relay ON).

Low-level trigger refers to the signal triggering voltage between the end and the negative electrode of the power supply is OV, or trigger terminal voltage lower voltage than the positive power supply voltage, low to can trigger, make the relay, is usually the cathode of the power supply and the triggering end of a trigger mode connection, so that the relay is attracted.

It has the blue KF301 terminal is connected to the line of control.

Specification:

Operating Voltage (VDC): 3 ~ 24

Supply Current (A): 2mA

Switching Voltage (VAC): 50@2A

Operating Temperature (°C): -40 to 85

Opt. Relative Humidity(RH): 20% ～ 85%

Storage condition (℃): – 65 to 125

Length (mm): 34

Width (mm): 26

Height (mm): 22

Weight (gm): 10

Package Includes:

1 x 1 Channel 3-24V Relay Module Solid State Low Level SSR DC Control DC with Resistive Fuse
