G15 Driver for G15 Cube Servo

G15 Driver for G15 Cube Servo
G15 Driver for G15 Cube Servo
G15 Driver for G15 Cube Servo
G15 Driver for G15 Cube Servo
G15 Driver for G15 Cube Servo
Based on 0 reviews. - Write a review
₹490.00
Ex GST: ₹415.25
  • Stock: In Stock
  • Model: 10273
  • SKU: SAT4443
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

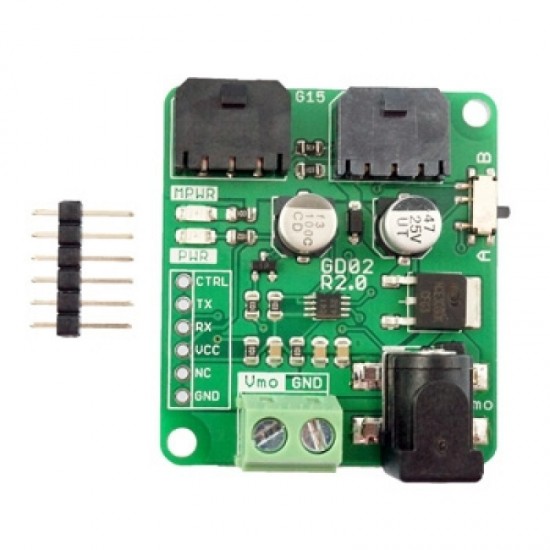

This is G15 Driver for G15 Cube Servo. G15 Driver (GD02) is used to drive G15 Cube Servo. It is a Full to Half Duplex Communication Converter board. It converts UART full-duplex communication to half-duplex single line communication which is required by G15 Cube Servo.

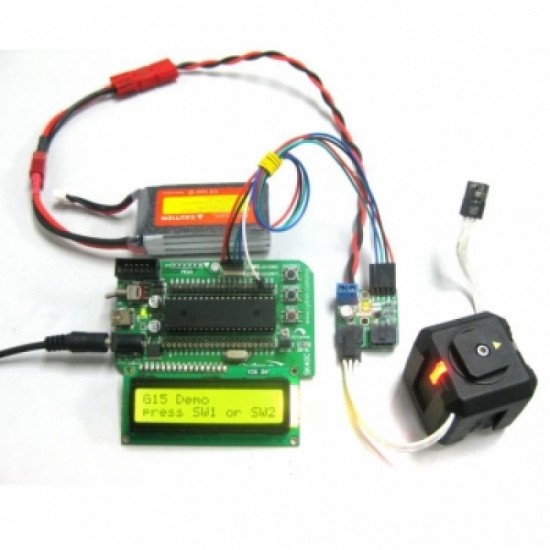

GD02 has two ports for the Cube Servo. G15 Cube servo is a serially controlled servo motor which can be daisy-chained.  G02 has a separated port connector for motor’s power supply. GD02 offers a simple and easy way to use to control G15 Cube Servo with UART communication from any microcontroller board for example.

 Improvements in Rev2.0

Polarity protection for power input to Cube Servo.

Additional DC jack socket for Vin, using DC adapter will be easier.

Compatible UART signal port with UC00A. Control from the computer will be easier.

Optional slide switch to select the logic for UART flow control, making it compatible with Arduino G15 shield library.

Features :

2 x G15 Cube Servo ports (can be daisy chained to more servos)

External power terminal for Cube Servo.

2 LEDs as logic power and servo power indicators.

3.3V and 5V signals compatible.

Package Includes :

1 x G15 Driver

1 x *6 Burg Pin(Straight)

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
