- Stock: In Stock
- Model: 10378
- SKU: SAT4548
- Location: India

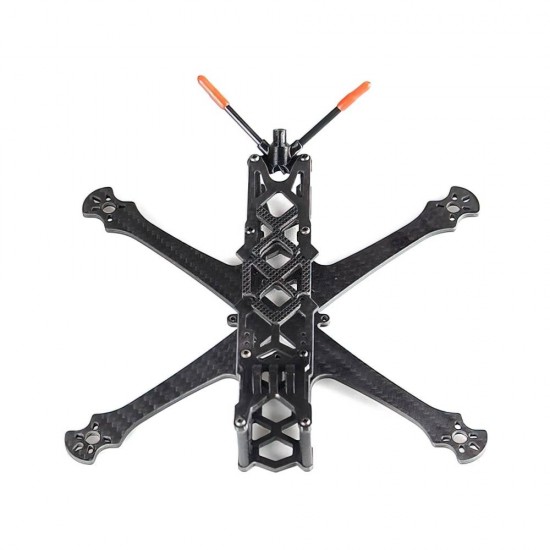

This 4″ Freestyle Frame Kit is for the HGLRC Sector4 FR drone. This frame has great versatility, allowing both 20×20 and 20.5×20.5 stack sizes. Perfect for your customized Sub250 build, allowing room for the Caddx Vista Unit for high-definition freestyle ripping!
Note: Frame Kit Only… electronics, motors, props, and cameras are not included.
VIDEO: All New 4-inch Freestyle Sub-250 Drone!! It Shreds!! Sector4
Features
- Ultra-light and lasts super long in flying
- 20×20-25.5×25.5mm mounting holes
- Simultaneous AIO/Stack installation
- Sub250 Category
Specifications
- Mounting holes: 20x20mm/25.5×25.5 mm
- Space of top and bottom plate: 25mm
- Model: Sector4 FR Freestyle Frame
- Bottom plate thickness: 3mm
- Material: 3K Carbon Fiber
- Support camera: 19*19mm
- Top plate thickness: 2mm
- Wheelbase: 178mm
- Size: 136*162mm
- Type: 4″ frame
- Weight: 48g
Recommended (Not Included)
- Flight Controller: Zeus25/ZeusF722 mini
- Motor: 14XX/16XX/18XX
- VTX: Caddx Vista Unit
- Camera: 19X19mm
- Propeller: 4 Inches
- ESC: 25A-40A

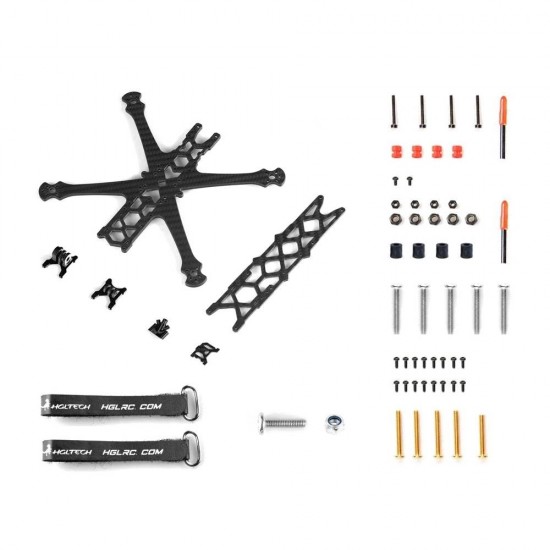

Includes
2x M2*23mm Black mesh aluminum columns
6x M2*25mm Black mesh aluminum columns
4x M2*4 shock-absorption Standoffs
4x M3*6.6 shock-absorption balls
1x Round head screw M5*20
1x Round head screw M3*20
2x Round head screws M2*4
4x Round head screw M3*25
2x Battery straps 15x200mm
1x TPU GoPro fixing bracket
1x TPU Naked Gopro mount
2x 1.5mm camera side plate
16x Cup head screws M2*6
4x Cup head screws M2*25
5x M3 Self-tightening nuts
4x M2 Self-tightening nuts
1x M5 Self-tightening nuts
1x Battery Anti-slip pad
1x TPU antenna base
1x 3mm bottom plate
1x 2mm top plate
