GEPRC CineLog 35 P 3.5" Cinewhoop Drone Frame Kit - Performance Edition

Based on 0 reviews. - Write a review

₹4,499.00

Ex GST: ₹3,812.71

Stock: In Stock
Model: 10373
SKU: SAT4543
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

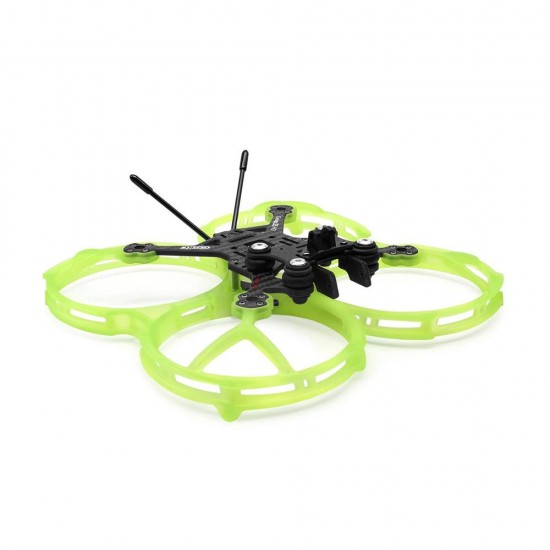

The CineLog35 Performance Frame is improved and optimized on the basis of the CineLog35 frame. This frame supports the installation of mainstream AIO flight controllers with 25.5mm x 25.5mm holes and the direct installation of a VISTA or AVATAR digital VTX. The propeller guard adopts an integrated design, and the overall structure is more solid. The GEP-CL35 Performance frame uses brand-new materials that have stronger impact resistance and better toughness. With the use of the 12mm x 12mm motor holes, larger 15-18-21 series motors can be installed. 3.5-inch propellers will provide a stronger power output. The CL35 is designed for the Installation of GoPro 8/9/10 cameras with 3D printed mounts, or use the base to install naked GoPro8, Insta 360 GO2, and Caddx Peanut cameras.

VIDEO: BEST Cinewhoop for FILMMAKERS? – GEPRC Cinelog35 PERFORMANCE Review

Features

Supports GoPro8/9/10/Naked GoPro 8/ Insta 360 GO2/Caddx Peanut cameras
Independent receiver cabin design with convenient and fast frequency binding
12 x 12mm motor holes support 1507/1805/2004/2105.5 and other Motors
Improved shock absorption gimbal design for more stability and less jelly
Supports the installation of 3.5-inch propellers for strong power output
Hollowed-out noise reduction design for quiet and safe flights
3.5-inch injection-molded one-piece propeller guard
Supports mainstream 14/19mm cameras
Brand new appearance

Specifications

VTX mounting hole: 20mm x 20mm/25.5mm x 25.5mm
Suitable propeller size: 3.5-inch propeller
Propeller guard internal diameter: 95mm

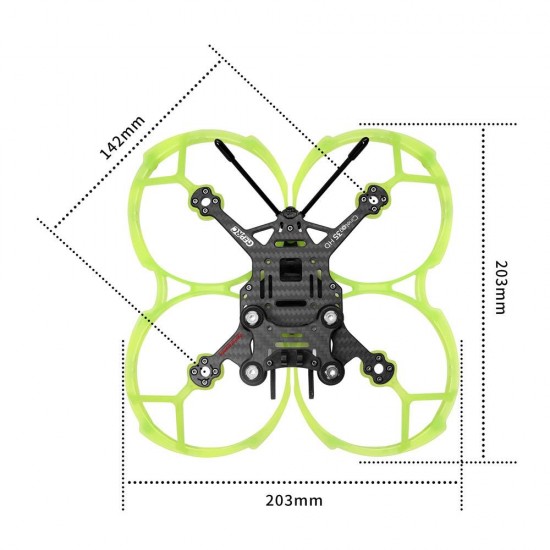

Dimension: 203mm x 203mm x 42mm
FC mounting hole: 25.5mm x 25.5mm
Motor mounting hole: 12mm x 12mm
Camera installation space: 14~19mm
Model: GEP-CL35 Performance
Motor to Motor: 142mm
Bottom plate: 2.0mm
Arm plate: 3.5mm
Top plate: 2.5mm
Weight:105.7g

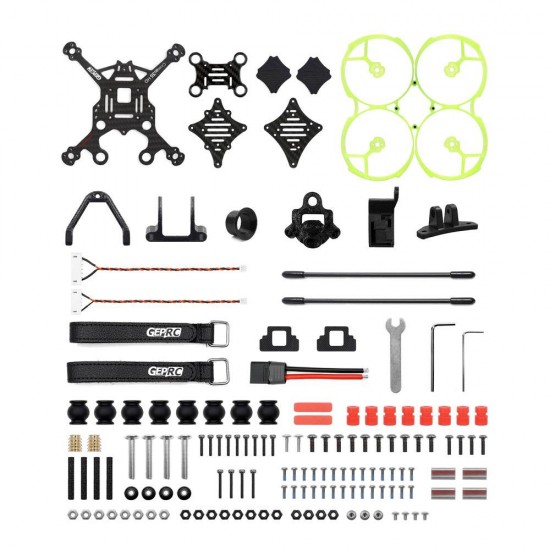

Includes

1x 2x GEPRC CL35 P 3.5-inch Integrated Propeller Guards

1x GEPRC CL35 P Arm Plate 3.5mm

1x GEPRC CL35 P Top Plate 2.5mm

2x M15x200mm LiPo Straps

1x Antenna Mounting Tube

1x Set of 3D Printed Parts

2x Battery Non-slip Mat

1x Bottom Plate 2.0mm

1x Set of Screwdrivers

1x Set of Screws

1x Set of Cables
