1000TVL 90 Degree CMOS Camera with Audio

1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
1000TVL 90 Degree CMOS Camera with Audio
Based on 0 reviews. - Write a review
₹1,189.99
Ex GST: ₹1,008.47
  • Stock: In Stock
  • Model: 9557
  • SKU: SAT3727
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

1000TVL 90 Degree CMOS AV Camera is the newest launch of  HD FPV camera with the definition of 1000 TV lines which reproduce the highest quality video in daylight as well as in low lights during evening time. The overall effects are best in the class and quality is assured by the Manufacturer who is known for the wide range of camera manufacturing.

This ultra small size camera is very suitable for FPV Application of special industry as well as in various robotics and DIY projects. This camera is specially tailored for FPV and dedicated to FPV HD aerial camera. With its micro ultra lightweight design, it is very convenient to install over the portable applications as well as on the quadcopters and record the clear and delicate video and images in high definition with the best level of color fidelity even in low illumination.

The camera requires a maximum 6V power supply to operate which provide the great convenience to your portable application and saves the battery power with its micropower consumption feature.

The camera also featured a good Ingress Protection.

Importance of Ingress Protection (IP) Rating in CCTV Cameras:

Ingress Protection(IP) is a standard security rating affixed to electronic gadgets to define the levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt, etc) and moisture.

It is important to enhance the durability of any electronic gadget especially to protect it from dust and water. Manufacturers create enclosures with higher IP ratings so that the gadgets can withstand the weather and terrain they are exposed to. Ingress Protection Rating requires the gadget to pass very challenging circumstances to acquire the standard codes. It is a rating that measures the degree of protection given to gadgets by the enclosures.

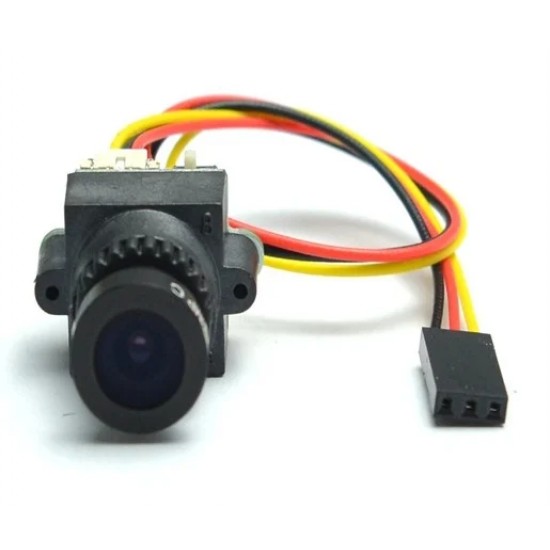

Connecting Cable Description:

Red: +5v

Black: GND

Yellow: VideoOut

White: AudioOut

Specifications and Features:

Model: 408 AHD Camera

Dimensions: 30 x 23 x 16 mm(LxWxH)

Weight: 10gm(with cable)

Lens: 2.8mm IR coated

Lens Outer diameter: 14 mm

Operating voltage range: 4.5V-6V DC

power Consumption: 80 mA to 120 mA

TV standard: N system, P system, a key switch

Angle: 90 degree

Image Sensor: 1/5 OV8336

Resolution: 640×480

Definition: 1000TVL

Illumination: 1 LUX

S/N Ratio: ≥48 dB

Frame Speed: PAL-25fps/ NTSC-30fps

Audio Out: Yes.

Operating temperature: 0 to 40°C

IP66 Ingress Protection

Good vision during day and Night

Package Includes:

1 x 1000TVL 90 Degree CMOS AV Camera with Cap

1 x 4 Pin color-coded Connecting Cable.

1 x Lens Cover Cap




6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
