SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module

SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
SX1278 LoRa Series Ra-02, Spread Spectrum Wireless, Module
Based on 0 reviews. - Write a review
₹549.00
Ex GST: ₹465.25
  • Stock: In Stock
  • Model: 9244
  • SKU: SAT3414
  • Location: India
Espressif Espressif
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

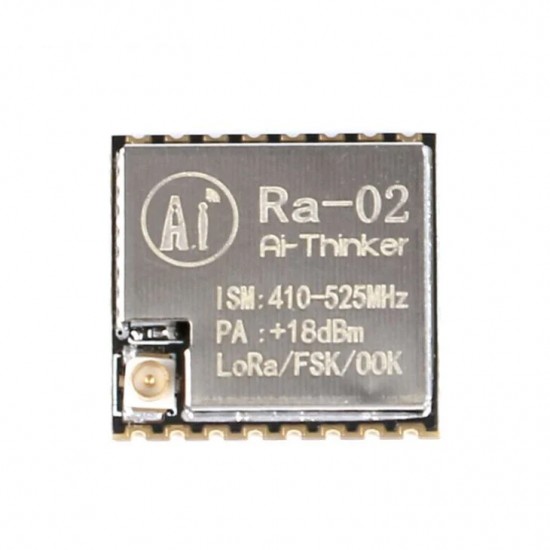

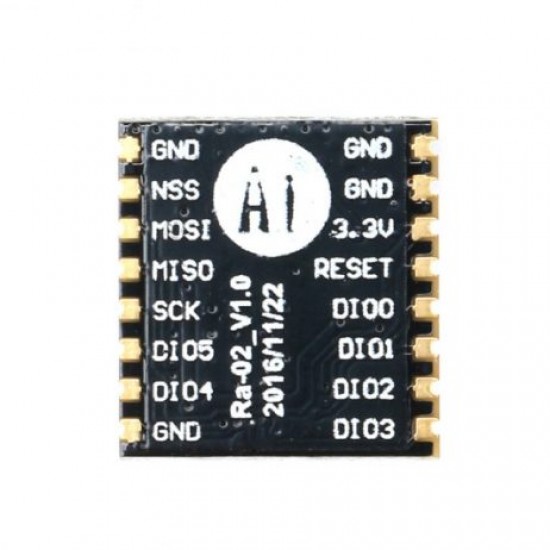

This SX1278 LoRa Series Ra-02 Spread Spectrum Wireless Module is a wireless transmission module based on SEMTECH’s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has a strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.

The LoRa series module Ra-01 is designed and developed by Flawless Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH’s patented LoRa modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability.

At the same time, compared with the traditional modulation technology, LoRa modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme cannot consider the distance, interference and power consumption at the same time.

Features :

  • LoRa  Spread Spectrum modulation technology
  • Constant RF power output at + 20dBm-100mW voltage change
  • High sensitivity: down to -148dBm
  • Half-duplex SPI communication
  • Programmable bit rates up to 300kbps
  • Supports FSK, GFSK, MSK, GMSK, LoRa  and OOK modulation modes
  • 127dB RSSI dynamic range
  • Automatic RF signal detection, CAD model, and very high-speed AFC
  • Packet engine with CRC up to 256 bytes
  • Small footprint dual-row stamp-hole patch package
  • Shielded housing

Package Includes :

1 x SX1278 LoRa Series Ra-02 Module

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
