ESPresso Lite V2.0 ESP8266, Espressif, IoT, wifi

Based on 0 reviews. - Write a review

₹892.00

Ex GST: ₹755.93

Stock: In Stock
Model: 9262
SKU: SAT3432
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

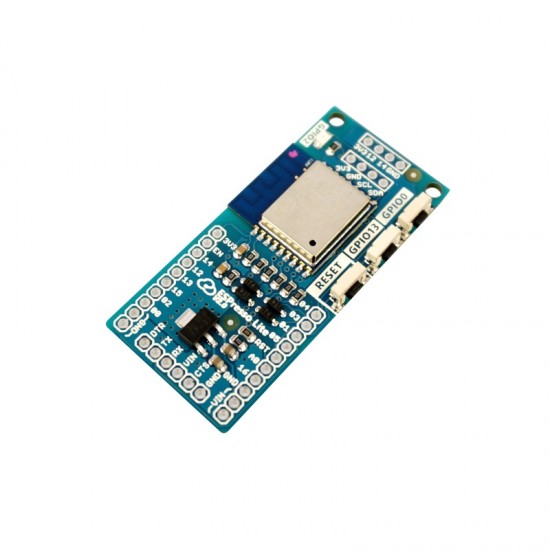

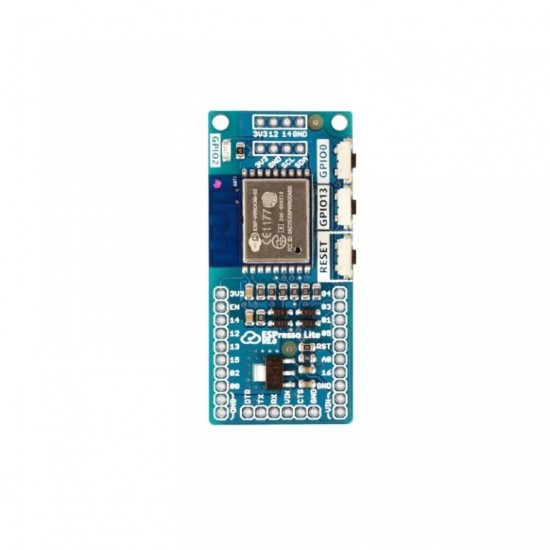

The ESPresso Lite V2.0 ESP8266 is the first low-cost Arduino-compatible ESP8266 WiFi development board manufactured by Malaysia. Working together with experts, a Singapore IoT technology company, this board allows anyone to learn, experiment and build their IoT projects easily and quickly.

The core hardware inside ESPresso Lite V2.0 is Espressif System’s ESP8266 WROOM-02 WiFi module and is programmable using the Arduino IDE like how anyone would run their programs in other Arduino boards.

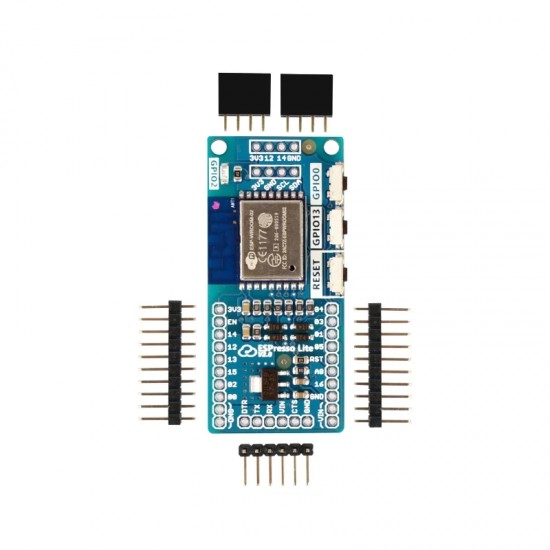

The ESPresso Lite V2.0 comes in a kit, with extra headers. You will have to fire up the soldering station to solder some of the headers. Not to forget we recommend getting UC00A for USB to UART which you need to load program and future debugging purposes.

expert is working hard to prepare the tutorial to kick-start your first IoT project with ESPresso Lite, please refer to this tutorial to get started.

Please do visit ESPert.co for more information about this product.

We are also selling the IoT kit of ESPresso Lite V2.0 which includes all that is required to get ESPresso Lite V2.0 into action, click below to buy

ESPresso Lite V2.0 IoT Starter Kit ESP8266

Specification and Features :

Espresso Lite V2.0 :

Features Espressif System’s ESP8266 WROOM-02 Wi-Fi module (with 4Mb flash)

Design for IoT with free espert.io cloud and app service

Support the Arduino IDE (boards manager) and libraries

Auto program loading from Arduino IDE, using UC00A (or other compatible USB to Serial)

Vin: 5 to 12VDC

Operating Voltage: 3.3VDC

Onboard 3.3V Voltage Regulator with a maximum current of 800mA continuous, 1A peak

One Reset button, two User Programmable buttons

The WROOM-02 module is FCC, CE & TELEC certified

Breadboard friendly breakout pins

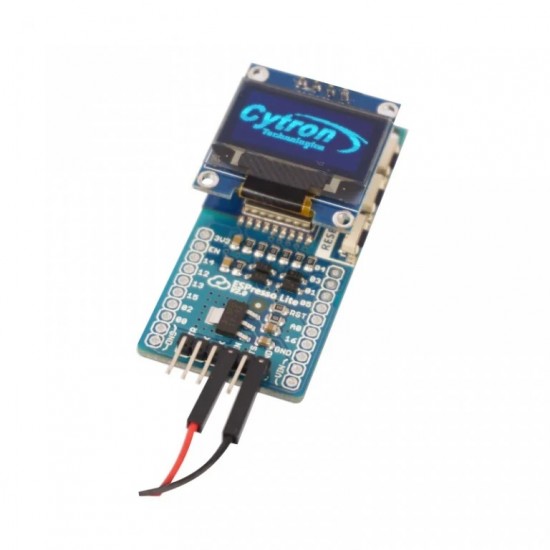

Ready pads for I2C OLED panel

WROOM-02 :

Operating Voltage: 3.0 to 3.6VDC

Operating Current: Average = 80mA

IEEE 802.11b/g/n at 2.4 GHz

WiFi mode: SoftAP/Station/SoftAP + Station

Security: WPA/WPA2

Encryption: WEP/TKIP/AES

Integrated low power 32-bit MCU

Integrated 10-bit ADC

Integrated TCP/IP protocol stack

Integrated TR switch, balun, LNA, power amplifier and matching network

Integrated PLL, regulators, and power management units

Various interfaces available, including SDIO, HSPI, UART, I2C, I2S, IR, PWM, GPIO, etc.

Supports antenna diversity

Deep sleep power <10uA, Power-down leakage current < 5uA

Wake up and transmit packets in < 2ms.

Standby power consumption of < 1.0mW (DTIM3).

+20dBm output power in 802.11b mode.

Operating temperature range -40C ~ 125C.

FCC, CE and TELEC certified.

Package Includes :

1 x ESPresso Lite V2.0.

Set of Connectors.

6 Months Warranty
