ESP8266 Adapter Plate Serial Wireless WIFI Module-1pcs

Based on 0 reviews. - Write a review

₹41.01

Ex GST: ₹34.75

Stock: In Stock
Model: 9258
SKU: SAT3428
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

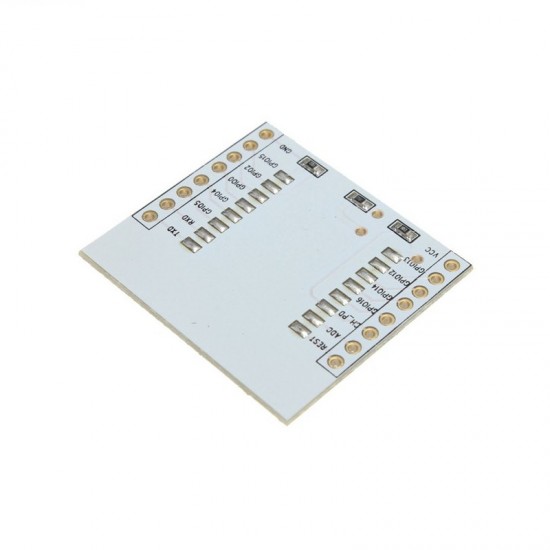

This ESP8266 Serial Wireless WIFI Module Adapter Plate is for ESP-07, ESP-08, ESP-12E ESP8266 SMD ESP8266 Module. These SMD ESP8266 modules have an unfriendly pin pitch. But by use of this adapter PCB, you can solder ESP-07, ESP-08 or ESP-12E modules and can use your favourite ESP8266 SMD modules on breadboards or on perforated boards.

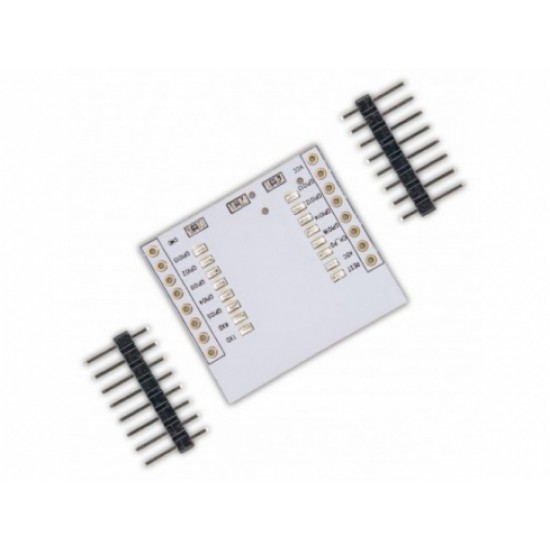

ESP8266 adapter plate compatible with the ESP07, ESP08, and ESP12. Because soldering the ESP modules is not always easy, this adapter plate is available. The WiFi module can be soldered to the PCB, wherein they are connected to connection points clearly indicated by headers.

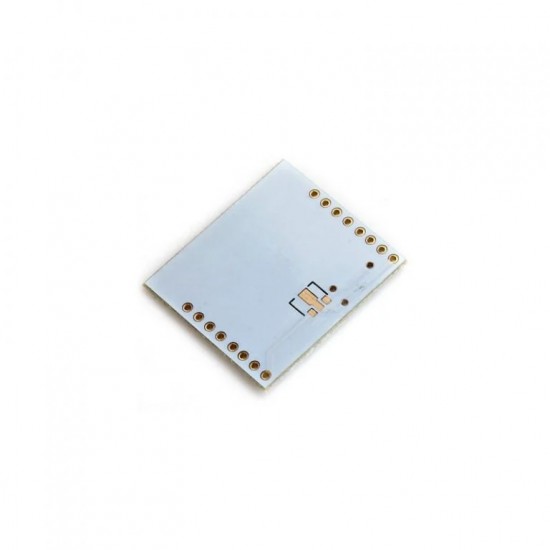

On the bottom layer, there is a land pattern for a 3.3V regulator. To use a 3.3V regulator you will need to desolder 0 Ohm jumper resistor R2.(middle resistor) The VCC pin then becomes 4.5V to the 9V power input.

To buy the Lates ESP-12F Wifi Module click on the name below,

ESP-12F ESP8266 Wifi Wireless IoT Board Module

Features :

It features reserved land-pattern for the 3.3V regulator
It has Pinouts on the top layer in black color.
Compatible with Latest ESP-12F ESP8266 Wifi Module
It includes a 10K pull-up resistor populated on PCB.

Package Includes :

1 x ESP8266 Adapter Plate – 1pcs.

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
