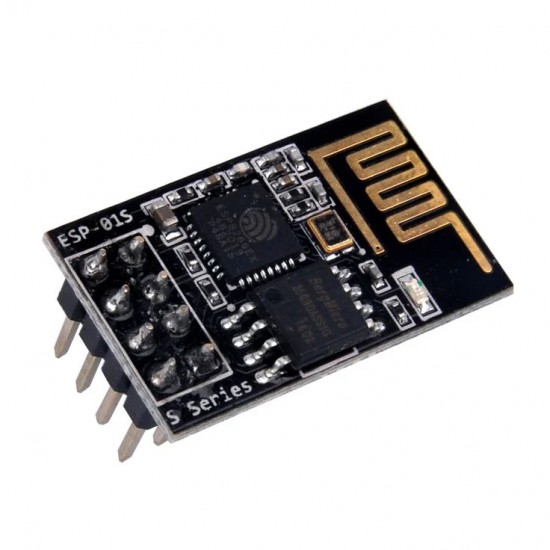

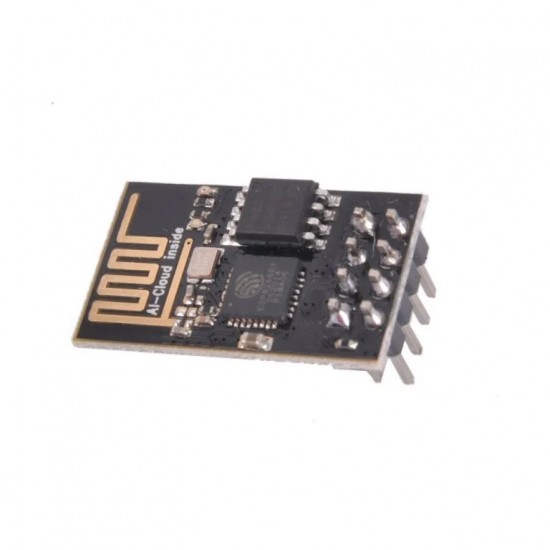

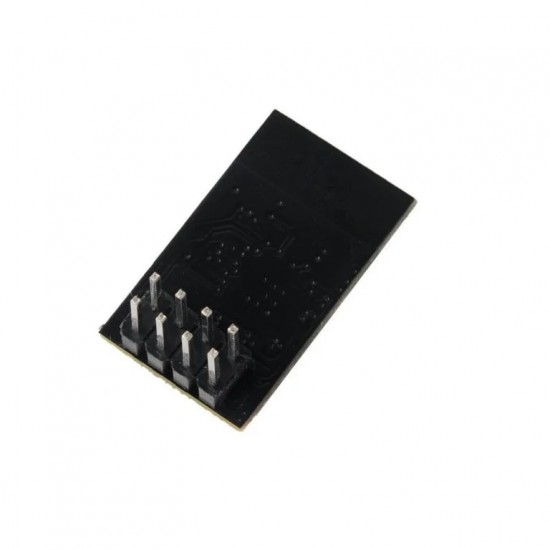

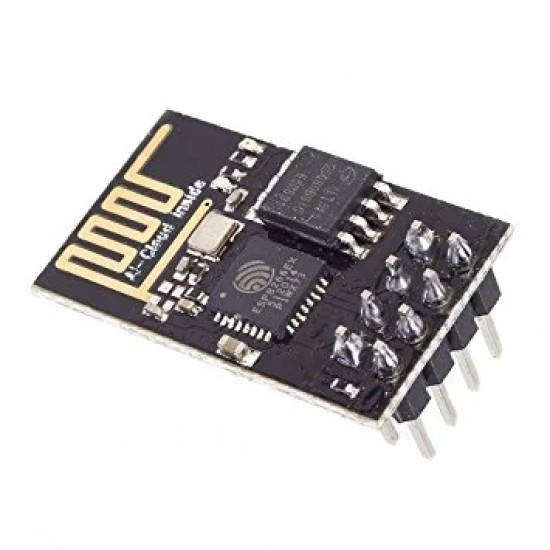

ESP8266 Serial Port To Wi-Fi Module, FL-M1S

Based on 0 reviews. - Write a review

₹209.00

Ex GST: ₹177.12

Stock: In Stock
Model: 9260
SKU: SAT3430
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

This ESP8266 Serial Port To Wi-Fi Module, FL-M1S serial transceiver module, based on ESP8266 SoC with an integrated TCP/IP protocol stack It can either host the application or offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful onboard processing and storage capabilities allowing it to integrate with sensors and other devices through GPIOs with minimal development up-front and minimal loading during runtime.

Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy minimal PCB area.

Add Wi-Fi connectivity to your projects quickly, easily and painlessly! The ESP8266 is a highly integrated chip designed for the needs of any IoT project. It offers a complete and self-contained Wi-Fi networking solution. Allowing it to either host a small application or to offload all Wi-Fi networking functions from another MCU.

This module is a WiFi serial transceiver module, based on ESP8266 SoC with an integrated TCP/IP protocol stack. As a TTL ‘Serial to Wireless Internet’ device, this module easily interfaces with typical microcontrollers (MCU) to communicate via TTL serial to instantly add Wi-Fi connectivity. It runs off 3.3V, and can draw almost 500mA of current for up to a really impressive +19.5dBm output power in 802.11b mode! That gives this module a range over a hundred meters!

ESP8266 has powerful onboard processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during run-time. Its high degree of on-chip integration allows for minimal external circuitry.

Features :

SDIO 2.0, SPI, UART
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
It equips integrated RISC processor, on-chip memory and external memory interfaces
Featuring integrated MAC/baseband processors
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Integrated WEP, TKIP, AES, and WAPI engines
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLL, regulators, DCXO and power management units
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as an application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)

Package Includes :

1 x ESP8266 Serial Port To Wi-Fi Module, FL-M1S
