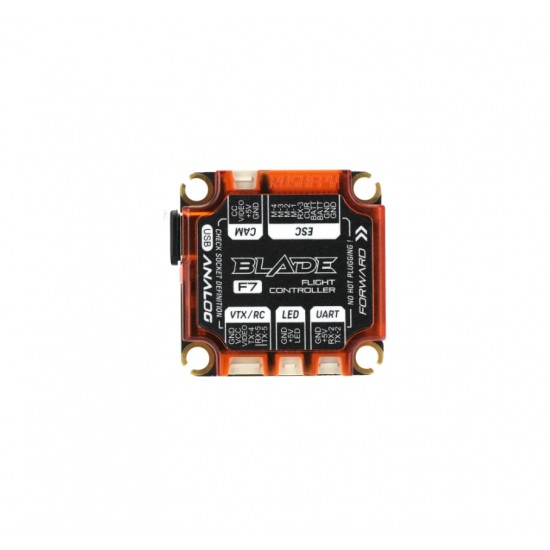

RushFPV RUSH BLADE F722 V2 Flight Controller Analog
₹4,999.00
Ex GST: ₹4,236.44
- Stock: In Stock
- Model: 10359
- SKU: SAT4529
- Location: India
₹56.64
Ex GST: ₹48.00
BLADE 722 v2 Analog version
Features
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- ICM42688P gyroscope, independent low-noise power supply.
- Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port, 1
- camera control port.
- High power synchronous rectifier BEC, supports up to 36V input and provides stable 5V 3A output.
- Modular cable design, with reliable locking structure, can be installed quickly, while retaining
- full-featured pads on the back, providing more expansion support.
- Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
- PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings.
Specification
- MCU STM32F722RET6
- GYRO ICM42688P
- OSD AT7456E CVBS OSD
- BLACKBOX 16MB FLASH
- BEC INPUT 7-36V / 3-6S LIPO
- OUTPUT 5V 3A
- PORT 8×PWM 5×UART 1×I2C
- ADC V-BATT / CURR-ESC
- LED
- BARO
- WS2812 LED STRIP
- BMP280
- SIZE 36.5mm*37mm*5.2mm
- MOUNTING HOLES 30.5*30.5mm
- TARGET RUSH_BLADE_F7 WEIGHT 11g(without cable
Includes
1 x RUSH BLADE F722 V2 30×30 Flight Controller For ANALOG
1 x 60MM UART Cable
1 x 60MM ESC Cable
1 x 60MM LED Cable
1 x Camera Cable
1 x VTX Cable
5 x 8MM Grommet
5 x 5MM Grommet
