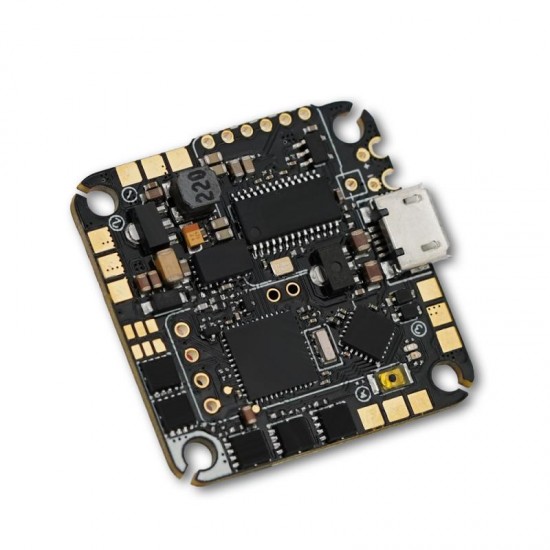

TBS partnered with Zeez to make this awesome whoop AIO. Introducing the the TBS Podracer AIO, the board is designed to cater for TBS Pro32 Nano VTX and TBS Crossfire / Tracer Nano RX with direct pin-header installation. The result is a clean, compact and lightweight core for your build..

The FC is equipped with F4+MPU6000 and the ESC is capable of True 30A current running BLHeli32. This board is versitle enough to run on your cinewhoop, 4/5″ racer like the podracer and longrange cruiser like the TBS Aureo.

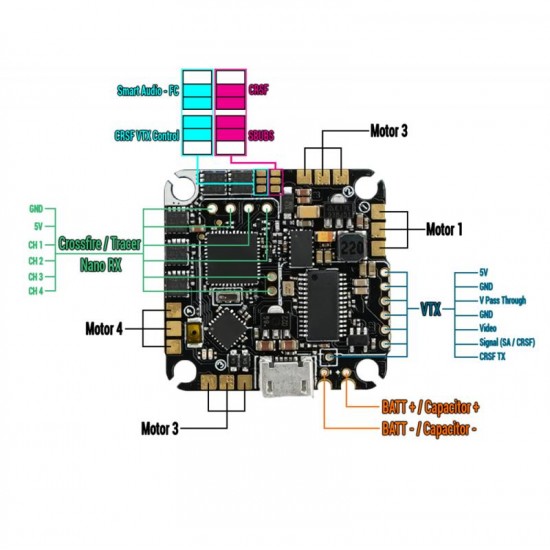

FC side

  • Mounting holes: 25.5×25.5 mm / M2 holes
  • Crossfire/Tracer RX CH1&2 > Uart 2  /  Pro32 Nano VTX > Uart 1 / Uart 1(RX) – unavailable.
  • Up to 6S input
  • 5V BEC up to 1.2A continuous
  • STM32F411 MCU (Support BetaFlight, EmuFlight)
  • MPU6000 Gyro/ACC
  • OSD chip Onboard (AT7456E)
  • 2 available UART
  • LC Filter for 5V VTX and Camera
  • Direct solder connection for TBS Nano RX and TBS Unify Pro32 Nano
  • Support programmable LED like WS2812 etc
  • Built-in current sensor


ESC side

  • Signal support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Input voltage: 2S-6S Lipo
  • Continuous current: 30A
  • Peak current: 35A
  • ESC firmware: BLHELI 32
  • PWM Frequency Range: 24KHz up to 96KHz

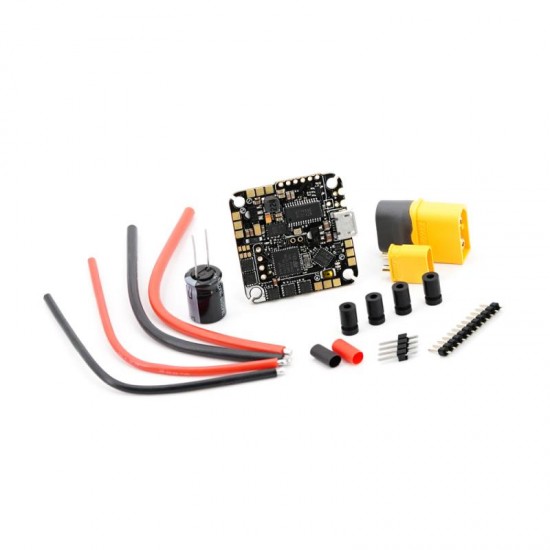

Includes

1 x TBS Podracer AIO

1 x Capacitor

1 x AWG cables set with shrink tubes

4 x mounting gromets

1 x XT60 (Male)

1 x XT30 (Male)

1 x Pinheaders set for TBS VTX and RX
