GEPRC GEP-F722-45A AIO V2

GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
GEPRC GEP-F722-45A AIO V2
Based on 0 reviews. - Write a review
₹9,499.00
Ex GST: ₹8,050.00
  • Stock: In Stock
  • Model: 10333
  • SKU: SAT4503
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

I am glad to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO,it is released now.

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.


Changelog:

  • June 5th,2022: this flight controller has started to use a new MOS tube, the appearance has changed, but the performance is the same as before.
  • June 14th,2022: Gyro updated to BMI270/42688
  • June 25th,2022:Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.


Specification：

  • Model Name:GEP-F722-45A AIO
  • MCU:STM32F722
  • IMU:BMI270/42688 gyro/accelerometer(SPI)
  • Firmware target:GEPRC_F722_AIO
  • OSD:Betaflight OSD w/ AT7456Ev
  • UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
  • Beeper:YES
  • LED:YES
  • USB:Micro USB
  • BEC output:5V@1A
  • Intergrated LC Filter
  • ESC MCU:8BB21F16G
  • Continuous current:45A
  • MAX current:55A (10s)
  • Input:2~6S
  • Supports:Dshot600,Oneshot,Multishot
  • BlackBox: 16Mb
  • Traget:G_H_30

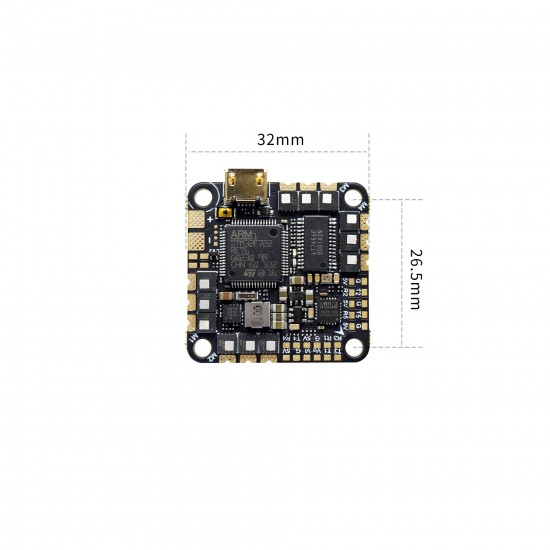

  • Size:32x32mm Board
  • Mounting Hole:25.5×25.5mm

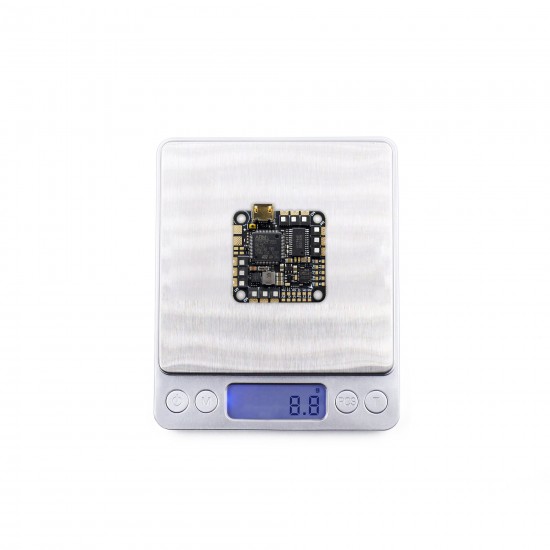

  • Weight:8.8g


Features:

  • MCU:STM32F722,with strong performance and higher computing speed.
  • It has 5 full UART ports, which can connect more external devices
  • Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
  • The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
  • Support OSD parameter adjustment, buzzer, led and other functions.
  • 8g ultra light weight
  • 5mm * 25.5mm mounting hole, suitable for most frames

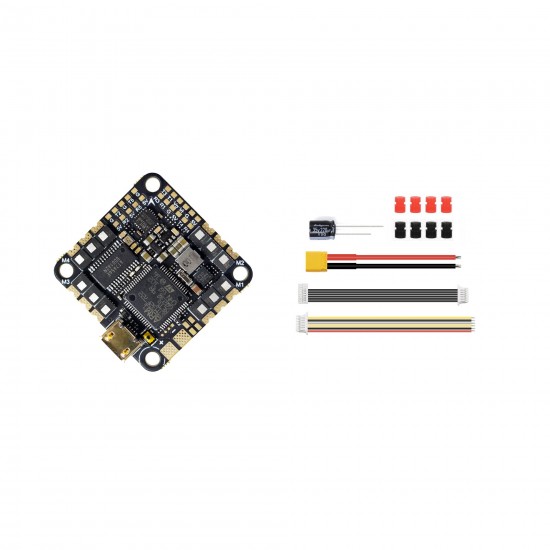

Includes:

1 x GEP-F722-45A AIO

1 x XT30-7CM-18AWG Power cables

1 x 35V220UF capacitor

1 x SH1.0-6Pin to GH1.25-8Pin cables

8 x M2*6.5mm Damping rings
