F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)

F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)
F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)
F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)
F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)
F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)
F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)
F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)
Based on 0 reviews. - Write a review
₹6,999.00
Ex GST: ₹5,931.36
  • Stock: In Stock
  • Model: 10332
  • SKU: SAT4502
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

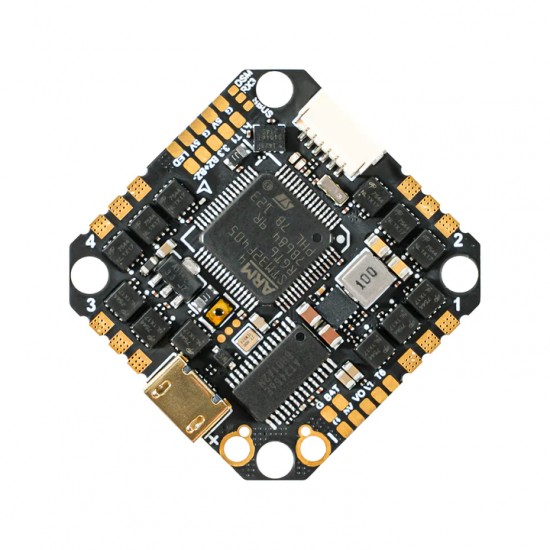

Based on the F405 2-4S 20A Brushless Flight Controller V4, the F405 4S 20A Toothpick Brushless Flight Controller V5 applies a new ICM42688 gyro and ESC chip that comes with BLUEJAY ESC firmware so it supports bidirectional D-shot. In addition to plug&play ports for the receiver and HD Digitial VTX the same as the V4 board, the V5 board is made with a rational layout for easy solder and preventing solder from jumping to another pad and shorting components.


Bullet Point

  • Not only is the flight controller board made with a rational layout but it is also designed with larger solder pads. It is very easy for pilots to solder external electronics.

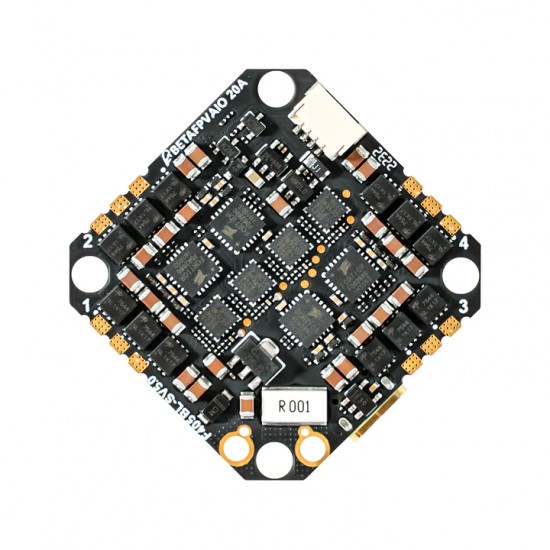

  • The flight controller is capable of handling 20A continuous current and reaching 25A peak current due to high-quality MOSFETs.
  • Soldering motor wires to pad directly allows lower resistance for more current on motors. Besides, solder pads are reinforced by thick copper and edge plating process, ensuring a solid value and durable use.
  • Reserving the UART ports layout, UART3 for RX, UART4 for HD digital VTX, UART6 for Analog VTX and UART1 for spare use, it is more convenient for pilots to solder.
  • Come with a 25.5*25.5mm whoop mounting pattern, this board can be added to both the toothpick drone and the cinematic whoop quadcopter frame like Pavo25 and X-knight 35.


Specifications

Flight Controller

  • CPU: STM32F405RGT6
  • Six-Axis: ICM42688 (SPI connection)
  • Mounting Size: 25.5*25.5mm (M2 Anti-vibration rubber damper available)
  • FC Firmware: betaflight_4.3.1_BETAFPVF405
  • OSD: Built-in Betaflight OSD (OSD chip: AT7456E)
  • Receiver: SBUS/CRSF/DSMX Receiver
  • BEC: 5V 3A
  • Built-in current sensor

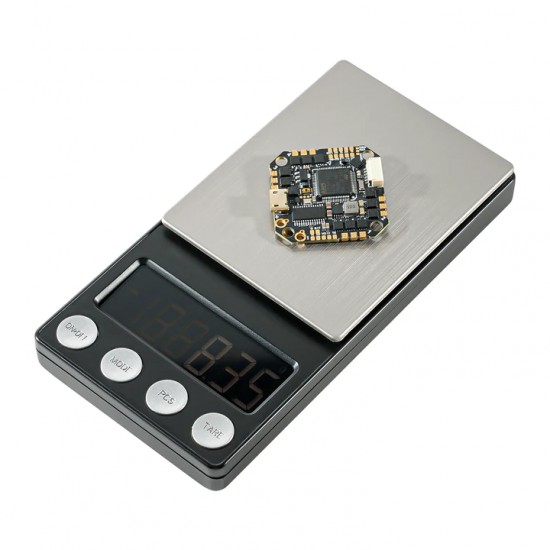

  • Weight: 8.35g

ESC

  • ESC Chip: SILABS EFM8BB21F16G-C
  • Support D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
  • Input voltage: 2S-4S Lipo
  • Continuous current: 20A
  • Peak current: 25A
  • Firmware: G_H_20_48_v0.16.HEX (Default BLUEJAY), BLHeli_S (Optional)


Package

1 * F405 4S 20A Toothpick Brushless Flight Controller V5 BLHeli_S (ICM42688)

1 * Cable Pigtail (XT30)

1 * 6-Pin Connector for Digital VTX

1 * 4-Pin Connector for RX

4 * M2x12 Screws

8 * M2 Nuts

4 * M2 Anti-vibration Rubber Dampers
