Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC - Internal USB

Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC - Internal USB
Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC - Internal USB
Hot
Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC - Internal USB
Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC - Internal USB
Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC - Internal USB
Based on 0 reviews. - Write a review
₹6,999.00
Ex GST: ₹5,931.36
  • Stock: In Stock
  • Model: 10331
  • SKU: SAT4501
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

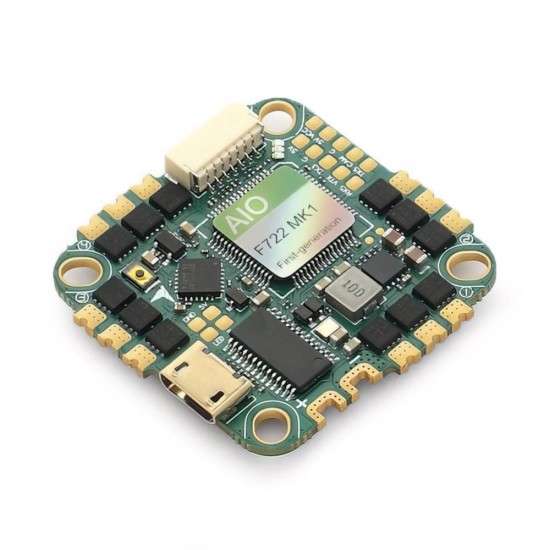

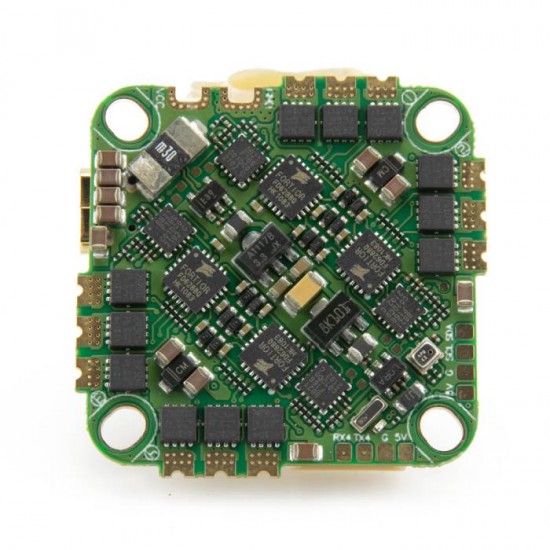

The Diatone Mamba F722 MK1 35A AIO (Internal USB) brings BIG power all in a 25.5×25.5 whoop mounting size! This AIO can push 35A all while bringing you the latest features. This is the 8-bit version.


Features

  • F35 35A 2-6S 4-in-1 ESC
  • MAMBA F722 MK1 FC
  • Large Soldering Pad
  • Internal USB


Specifications

MAMBA F722 MK1 FC

  • MCU: 216MHz STM32F722RET6
  • Input: 2~6S Lipo (8.4~25.2V)
  • MOUNTING: 25.5mm, M2
  • ESC Soft: Dshot300/600
  • LED Controller: BF LED
  • TVS Protection: Yes
  • GYRO: MPU6000
  • Power Led: Yes
  • Barometer: Yes
  • BEC: 5V 2.5A
  • Blackbox: NO
  • Uarts: 5 Set
  • F.Port: Yes
  • Buzz: Yes
  • OSD: Yes
  • RSSI: No

F35 35A 2-6S 4-in-1 ESC

  • INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)
  • CONTINUE CURRENT: 35A×4
  • BURST CURRENT: 45A (10S)
  • Target: MAMBAF722_12C
  • Target: BLHeli_S GH30
  • SOFT: Dshot300/6


Includes

1x Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC – Internal USB

1x AMASS Original XT60H-M

2x 16AWG 60mm Cable

5x Small Dampers

5x Hard Dampers

5x Soft Dampers

2x 7pin sh1.0

1x Capacitor
