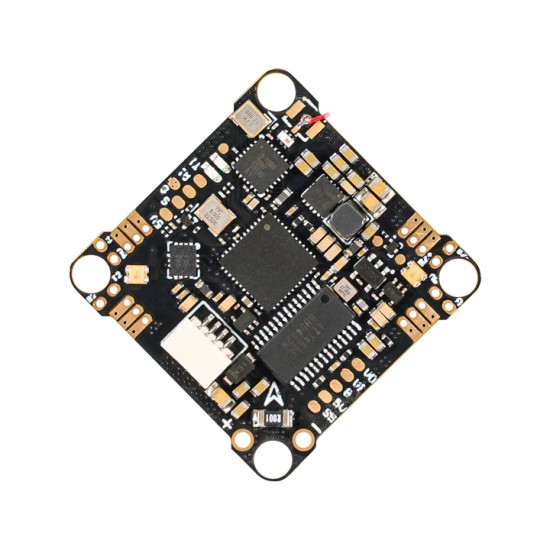

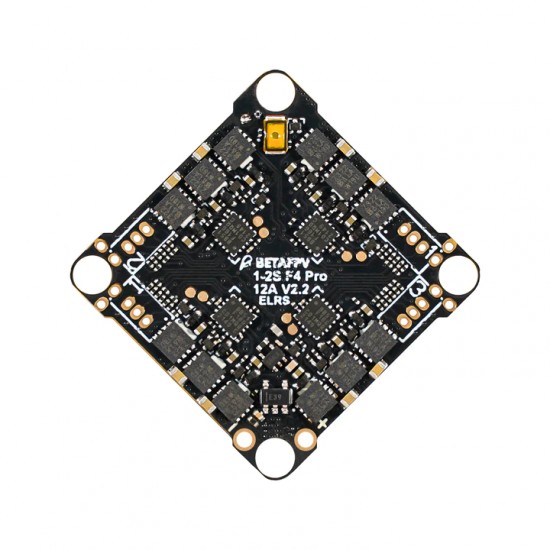

BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version

BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
BETAFPV F4 1S 12A AIO Brushless Flight Controller 2022 -SPI ELRS 2.4G V2.2 Upgrade Version
Based on 0 reviews. - Write a review
₹4,299.00
Ex GST: ₹3,643.22
  • Stock: In Stock
  • Model: 10329
  • SKU: SAT4499
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

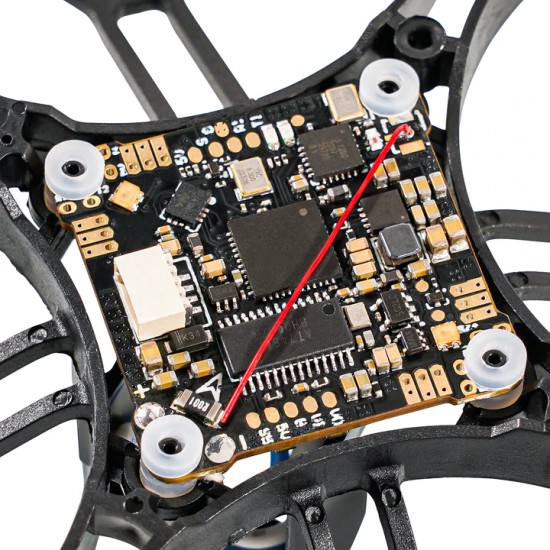

F4 1S 12A AIO Brushless Flight Controller V2.2 is the default FC for Cetus X brushless whoop quadcopter, also great for 85mm whoop drones like Meteor85 and 3″ toothpick drones like HX115 SE Toothpick Drone and HX115 LR Toothpick Drone. We updated the FC to V2.2 with BMI270 gyro and BB51 ESC hardware in place of ICM20689 gyro and BB21 ESC hardware.


Bullet Point

  • F4 1S 12A AIO Flight Controller is the best choice for building ultra-lightweight 3″ toothpick drones like HX115 SE FPV Quad and 85mm whoop drones. Recommend Meteor85.
  • Most of the 1S flight controllers on the market come with 5A ESC by now, but this FC especially integrates 1S 12A ESC, providing more sufficient power for 3″ toothpick drones or 85mm whoop drones.
  • Built-in current meter, 2 programmable RGB LEDs, and SPI ELRS or Frsky receiver. At the same time, all the pads are left for the external receivers with UART1 and UART2, for buzzers, etc.
  • Large pads are reserved for solder motor cables, this design will make solder easier.


Specification of FC

  • Item: F4 1S 12A AIO FC

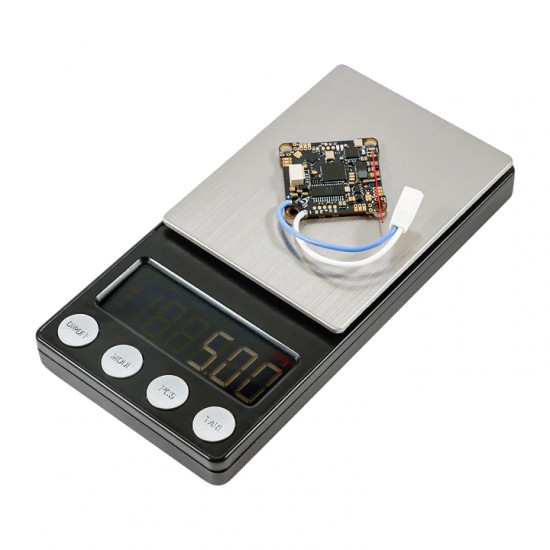

  • Weight: 4.74 g (without power cable and BT2.0 connector)
  • CPU: STM32F411CEU6 (100MHZ )
  • Six-Axis: BMI270 (SPI connection)
  • Firmware version: betaflight_4.3.1_BETAFPVF4SX1280
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Receiver: SPI ELRS 2.4G Receiver
  • Motor Pin Connector: 1.25mm Header Pins
  • Mounting Hole Size: 26mm x 26mm (suitable for whoop pattern mounting hole)
  • USB Port: SH1.0 4-Pin


Specification of 1S 12A ESC

  • Built-in ESC with 12A continuous and peak 25A current
  • Input voltage: 1S-2S
  • ESC firmware: C_X_30_REV16_7.hex for BB51 BLHeli_S hardware
  • Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM


Package

1 * F4 1S 12A AIO FC

4 * Anti-vibration Rubber Dampers

4 * M2 x 10mm Screws

4 * M2 x 10mm Screws

4 * M2 Screw Nut

8 * PH-1.25 Connectors for Motor

1 * SH1.0 4-Pin Cable

1 * SH1.0 4-Pin to USB Type-C Adapter
