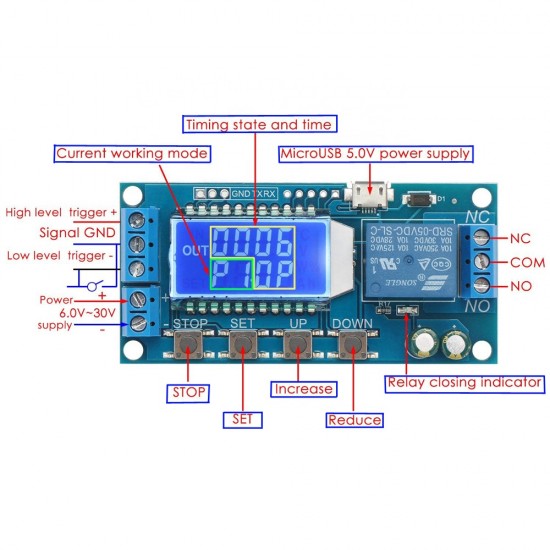

XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing

XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
XY-LJ02 6-30V Micro USB, Digital LCD Display Time, Delay Relay Module, Control Timer Switch, Trigger Cycle Timing
Based on 0 reviews. - Write a review
₹658.99
Ex GST: ₹558.47
  • Stock: In Stock
  • Model: 9830
  • SKU: SAT4000
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

It is a multifunction delay relay module.LCD display, very clear, easy to use, powerful. It can be widely used at Smart home, Industrial control, Automatic irrigation, Indoor ventilation, Protection equipment.

Features:

  •  LCD display;
  • Support high and low-level triggers;
  • Emergency stop function;
  • Sleep mode, Wake up with any button;
  • Automatically save parameters;
  • Support UART Set;
  • Independent of parameters;
  • Continuously adjustable from 0.01 seconds to 9999 minutes;
  • Optocoupler isolation.Enhanced anti-jamming capability

Additional Features:

1. Auto sleep function: Long press button ‘STOP’ in the normal running interface to turn on or off auto sleep function.

L-P: ON, Turn ON auto sleep function.

L-P: OFF, Turn OFF auto sleep function.

2. Relay function selection: Short press button ‘STOP’ in the normal running interface to turn on or off relay delay function.

‘ON’:Relay is normally turned on when the conduction condition is met.

‘OFF’:Relay is normally turned off even though the conduction condition is met.

LCD will flash ‘OUT’ at the status of OFF.

3. View parameters: In the running interface, short press the SET button to display the current parameter settings of the system, which does not affect the normal operation of the system.

4. Switch the display content: It will switch the display content by short pressing the button ‘DOWN’ in the P5 or P6 model

Package Includes:

1 x XY-LJ02 6-30V Micro USB Digital LCD Display Time Module

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
