- Stock: In Stock
- Model: 9829
- SKU: SAT3999
- Location: India

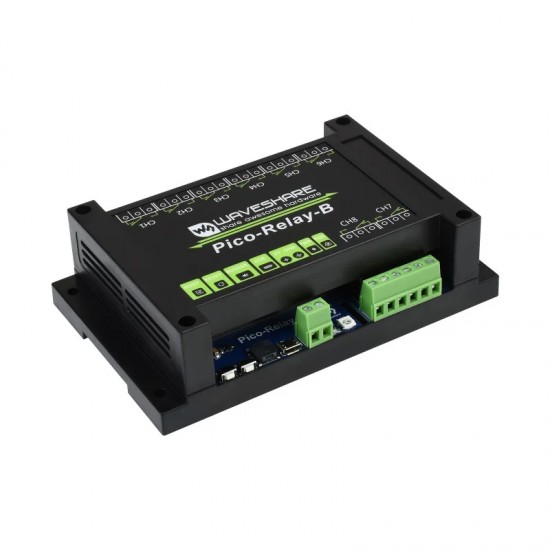

This is an industrial 8-channel relay module for Raspberry pi pico by Waveshare. It features embedded protection circuits such as Power Supply Isolation & Photocoupler Isolation. It also comes with an ABS enclosure.
What’s On Board:
Raspberry Pi Pico header
Relay screw terminal for connecting external devices
Power supply screw terminal the multi relays are connected in parallel
Pogo pins
USB communication port connected via pogo pins
BOOT key connected via pogo pins
Reset key Pico reset
Passive buzzer controllable sound frequency
Power indicator
WS2812 RGB LED, cool!
8-channel quality relays contact rating per channel: ≤10A 250V AC or ≤10A 30V DC
Relay operating indicator
Photocoupler isolation prevent interference from external high-voltage circuits connected to the relay
Power supply isolation provides stable isolated voltage, needs no extra power supply for the isolated terminal
Thickened tracks allow large current devices
To explore Different types of gas Relay modules, click on the link Relay Switch Modules
Note: Raspberry pi pico is not included in this package.
Features:
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- High-quality relay, contact rating: 10A 250V AC or ≤10A 30V DC
- ABS protection enclosure with rail-mount support, easy to install, safe to use
- Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
- PWR indicator, RGB LED, and passive buzzer outside the enclosure
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Package Includes:
1 x Waveshare Industrial 8-Channel Relay Module for Raspberry Pi Pico, Multi-Protection
