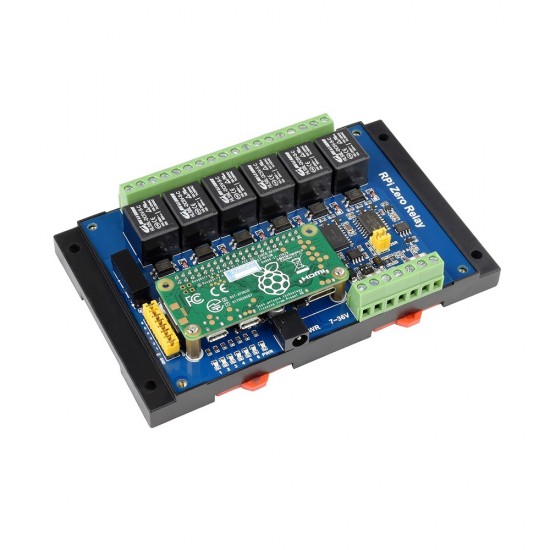

Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero, RS485/CAN with Isolated Protections


Pinout:

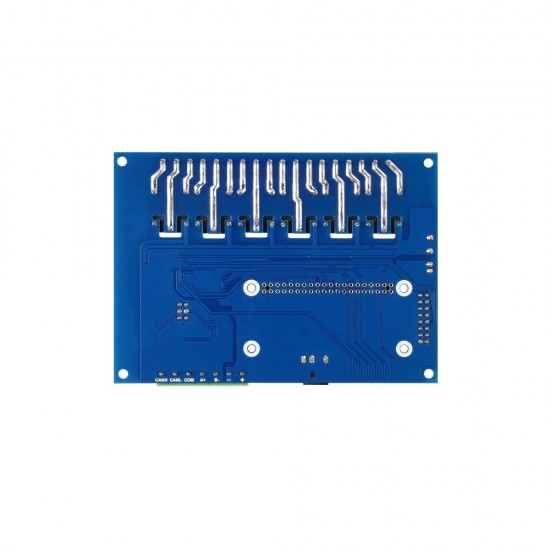

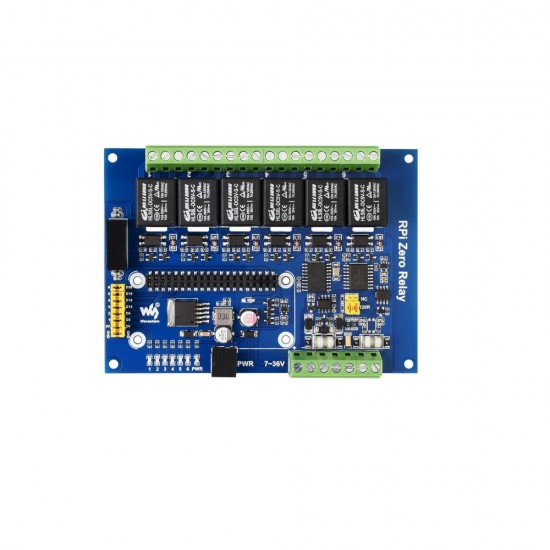

What’s on Board







Features:

  • RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
  • CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
  • Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance
  • High quality relay, contact rating: ≤10A 250V AC or ≤10A 30V DC

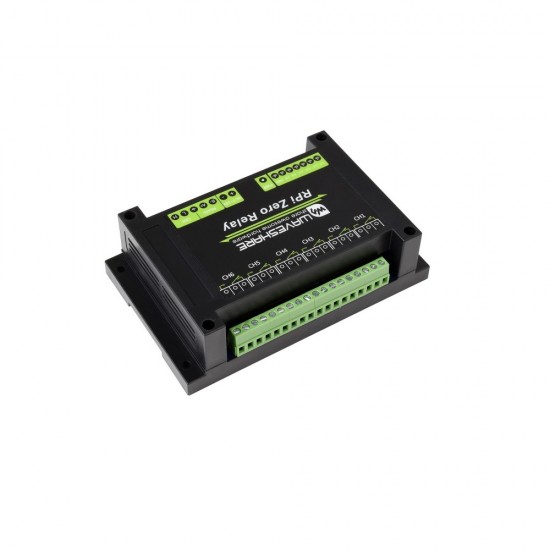

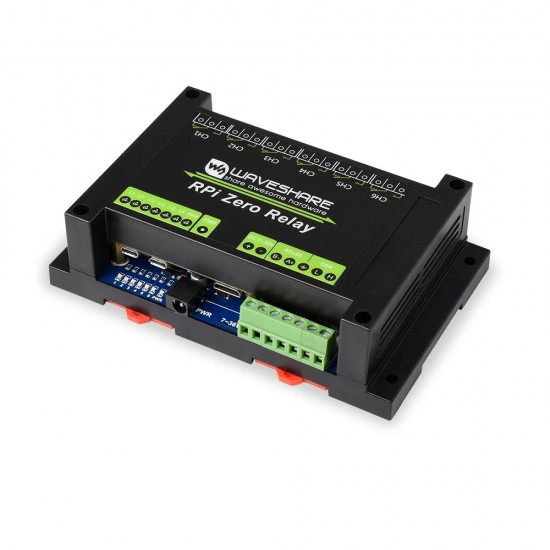

  • ABS protection enclosure with rail-mount support, easy to install, safe to use
  • Comes with development resources and manual (wiringPi and python examples)
  • Useful Links:
  • User Guide and Codes

Package Includes

1 x Waveshare Industrial 6-ch Relay Module for Raspberry Pi Zero

1 x Power Adapter
