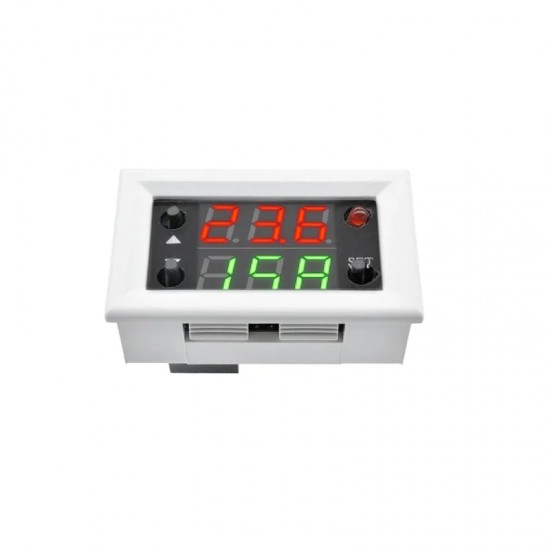

Red Green Dual Display, 12V Delay Relay Mini LED, Digital Timer Time Relay, Module Home

Red Green Dual Display, 12V Delay Relay Mini LED, Digital Timer Time Relay, Module Home
Red Green Dual Display, 12V Delay Relay Mini LED, Digital Timer Time Relay, Module Home
Based on 0 reviews. - Write a review
₹509.00
Ex GST: ₹431.36
  • Stock: In Stock
  • Model: 9821
  • SKU: SAT3991
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This is a Digital Timer Relay module With a dual display. In this Module, you will get a two-timing Section Timing time T1, timing time T2 where you can set your time as per your priority and you can change the time in this chosen timing format 0-999s,0-999min,0-999h. This Module works on this particular mode delay on, delay-off, timing on, timing off, cycle on, cycle off.

Product Instructions:

Please pay attention to your first use. You need to wait for 6s after your setting data, the module will save the date you have set after 6s.

Short press button SET: If you start the time setting mode, the Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait for 5s after your set date, the module will save the date you have set after 5s.

Long press button SET: if you start the parameter setting mode. There is two group parameter for your choice: P0 and P1. You could switch P0 or P1 by short press SET. Under the parameters P0 and P1, you could set the timing mode by the button+ and button-.

P0–0: Timing time mode : 0—999s.

P0–1: Timing time mode : 0—999min.

P0–2: Timing time mode : 0—999h.

P1–0: The relay will connect after you delay the T1 time.

P1–1: The relay will disconnect after you delay the T1 time.

P1–2: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time, it is finished.

P1–3: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time, it is finished.

P1–4: The relay will connect after you delay the T1 time first, Then the relay will disconnect after you delay the T2 time, it is cyclic.

P1–5: The relay will disconnect after you delay the T1 time first, Then the relay will connect after you delay the T2 time, it is cyclic.

Features:

  • The use of optoisolated input and output enhanced anti-jamming capability and consumption.
  • The last setting parameters can be memorized after power off.
  • A signal terminal voltage signal can be maintained for a long time.
  • To ensure stability, industrial grade PCB board.

Package Includes:

1 x Red Green Dual Display 12V Delay Relay Mini LED Digital Timer Time Relay Module Home

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.
