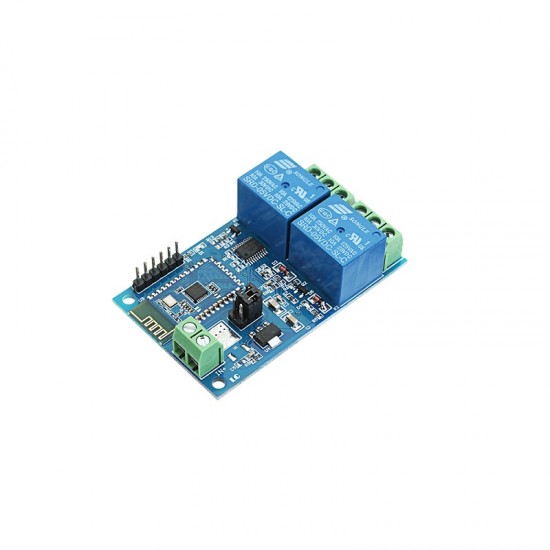

DC 5V Bluetooth 2, Channels Relay Module, Internet Smart Remote, Control Mobile Phone, Switch Wireless Relay

DC 5V Bluetooth 2, Channels Relay Module, Internet Smart Remote, Control Mobile Phone, Switch Wireless Relay
DC 5V Bluetooth 2, Channels Relay Module, Internet Smart Remote, Control Mobile Phone, Switch Wireless Relay
Based on 0 reviews. - Write a review
₹859.00
Ex GST: ₹727.97
  • Stock: In Stock
  • Model: 9804
  • SKU: SAT3974
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This module is ideally suited to controlling larger voltages with the project. This is a single channel relay module that can be used to activate up to 250V AC and 30V DC. This allows you to build in device control, operating remote lights or triggering systems when the module is supplied the signal.

These modules are designed for the connected age we live in. Each module has an onboard Bluetooth chipset that will provide the signal to trigger the relay. Using a Bluetooth scanning device, such as a mobile phone, you will be able to pick up the relay. First, you will need to pair with it, this is done by selecting it from within your Bluetooth browser and entering the password “1234”.

The module comes with two onboard LEDs that inform of the state of the module. Red power LED and a green activation LED that lights when a signal is received. When a signal is received an audible click can be heard as the relay triggers, connecting the output pins.

LED Indications:

LED D1 (Blue): Bluetooth state indicator:

D1 blink slowly-Search Module over Bluetooth and wait till pairing

D1 Continue ON means connection established and ready to use

LED D2/D3 (Red): Relay indicator

These LEDs will show the status of Relay ON-OFF individually

Note:

The images shown may vary from the actual product in terms of design, according to availability from the manufacturer.

Specifications and Features:

Easy to set up and pair with Android Phone

Onboard Bluetooth status indicator and relay indicator

With 4 optocoupler isolation, strong anti-interference ability

Onboard N76E003/STM8S003 and SPP-C Bluetooth 2.1 module

Effective control distance(on open area): 10m

Module Operating Voltage: 5VDC

On-board 5V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously.

Module with diode effusion protection short response time

Board Dimensions (L x W x H) mm: 63 x 42 x 19

Weight : 35 gm

Package Includes:

1 x DC 5V 2 Channel Bluetooth Wireless Control Relay Module

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
