12V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board

12V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board
12V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board
12V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board
12V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board
12V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board
Based on 0 reviews. - Write a review
₹1,781.00
Ex GST: ₹1,509.32
  • Stock: In Stock
  • Model: 9734
  • SKU: SAT3904
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

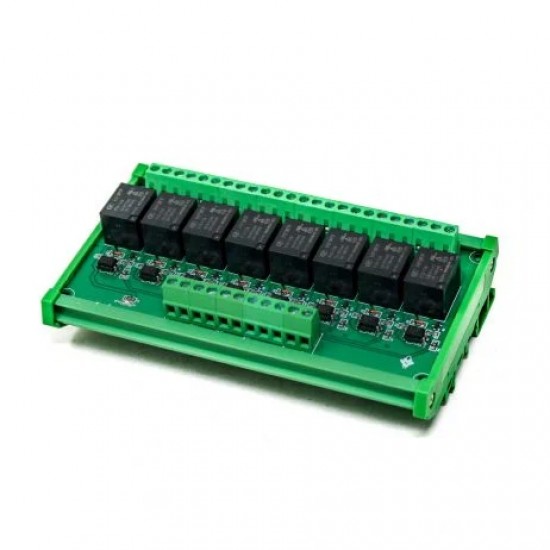

This is a 12V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board. It is used to control various appliances and other equipment with a large current. It can be controlled directly by a Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). 12V 8-Channel Relay interface board and each one needs 50-60mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A.

Features:

  • Dual trigger design, use a dedicated two-way driver IC.
  • Strong resist interference, use diode continued current to protect it.
  • The relay contact part adopts a double cloth line for large current, safe and reliability.
  • The input and output are 5.08mm wiring terminals, wiring is more convenient, suitable for PLC control.
  • Input terminals can be arbitrarily set high and low level, the control mode is more flexible.
  • Equipped with fixing screw hole, easy to install.
  • Each way module can be set high or low triggered by jumper.

Specifications:

Supply voltage: DC12V

Trigger mode: High  and Low-Level Trigger

Load voltage: DC 30V / AC 250V

Load current: 10A

Package Includes:

1 x 12V 8 Channels Relay Module High and Low Triggering Optocoupler Isolation Relay Module PLC Signal Amplifier Board

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
