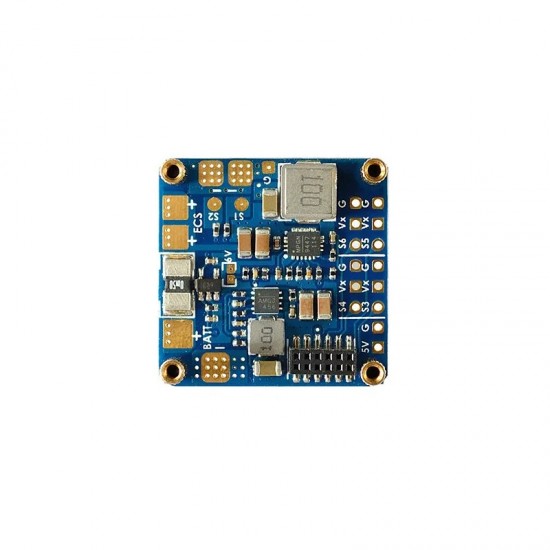

Matek MateksysF411-WSE Compact Flight Controller

Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Matek MateksysF411-WSE Compact Flight Controller
Based on 0 reviews. - Write a review
₹6,109.00
Ex GST: ₹5,177.12
  • Stock: In Stock
  • Model: 8074
  • SKU: SAT2236
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

Matek Mateksys F411-WSE Compact Flight Controller & BEC 5V Output Built-in 2-6S ESC 78A Current Senor For  iNAV RC Drone Wing

FC Firmware

  • INAV Target: MATEKF411SE


PDB

  • Input voltage range: 6~30V (2~6S LiPo)
  • 2x ESC power pads
  • Battery Voltage Sensor: 1:10 (Scale 1100)
  • Current Senor: 78A, 3.3V ADC, Scale 423


BEC 5V output

  • Designed for Flight controller, Receiver, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed module
  • Continuous current: 2 Amps, Max.3A(5seconds/minute)


BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V option
  • Continuous current: 3.5 Amps, Max.5A(5seconds/minute)


BEC 3.3V output

  • Designed for Baro / Compass module/OLED and Spektrum RX
  • Linear Regulator
  • Continuous current: 200mA


Physical

  • Mounting: 24 x 24mm, Φ2mm
  • Dimensions: 28 x 28 x 14 mm
  • Weight: 8.5g

Features:

  • MCU: 100MHz STM32F411CEU6
  • IMU: MPU6000 (SPI)
  • Baro: BMP280 (I2C)
  • OSD: AT7456E (SPI)
  • Blackbox: No
  • 2x Parts
  • 2x Softserial-Tx
  • 2x Motors, 4x Servos outputs
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, AirSpeed)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • Switchable Dual Camera Inputs
  • TR/SA VTX control: Yes
  • WS2812 Led control: Yes
  • Beeper output: Yes
  • RSSI: Yes
  • Voltage divider for Analog Airspeed sensor: Yes


Package Includes:

1 xMatek MateksysF411-WSE Compact Flight Controller

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
