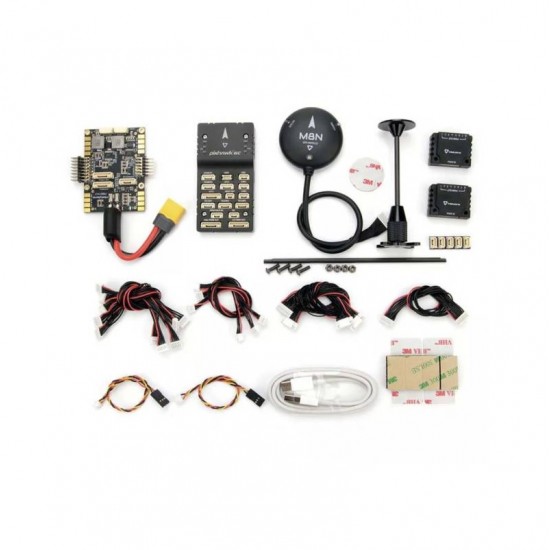

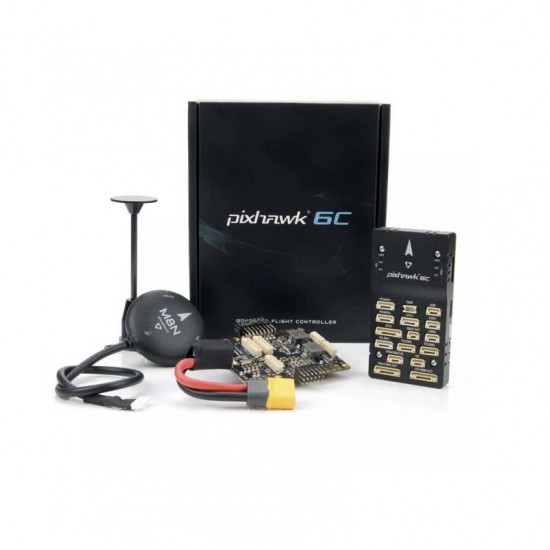

The Pixhawk 6C FC combined with the PM07 12S Power Module + M8N GPS brings tons of power to the autopilot and makes it super easy to power and locate the multirotor.

Pixhawk 6C Flight Controller Module

The Pixhawk 6C is the latest update to the successful family of Pixhawk flight controllers, based on the Pixhawk FMUv6C Open Standard and Connector Standard. It comes with PX4 Autopilot pre-installed. Inside the Pixhawk 6C, you can find a STMicroelectronics based STM32H743, paired with sensor technology from Bosch & InvenSense, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk 6C’s H7 microcontroller contains the Arm Cortex-M7 core running up to 480 MHz and has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost-effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.


Features:

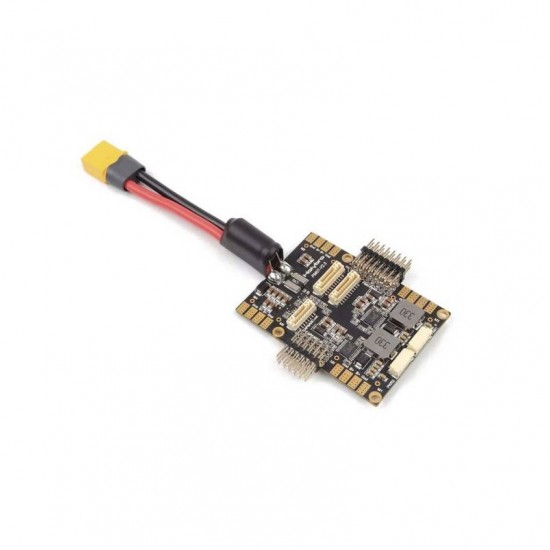

  • The Power Module comes completely assembled with XT60 connectors
  • New cost-effective design with low-profile form factor
  • Redundant inertial measurement unit (IMU) from Bosch & InvenSense
  • Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
  • IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
  • Lightweight & low power consumption


Specifications:

  • Model: 6C PM07 M8N
  • Product: Autopilot flight controller
  • Connectors: XT60
  • Processor: H7 micro-controller contain the Arm Cortex-M7 core
  • Clock speed: 480 MHz
  • RAM: 1MB
  • flash memory: 2MB
  • GPS: M8N


Packages Includes:

1 x Holybro Pixhawk 6C PM07 M8N
