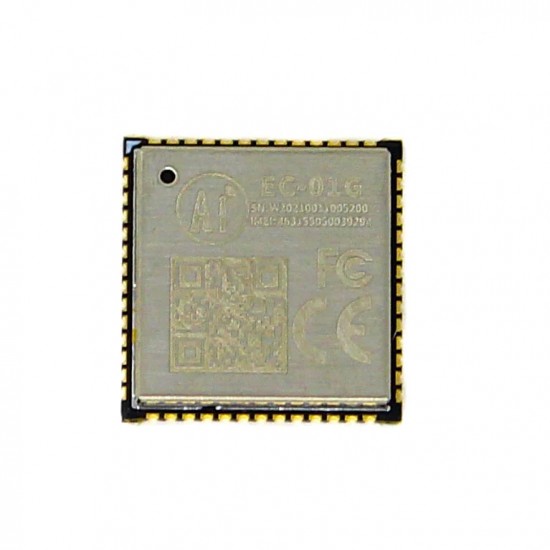

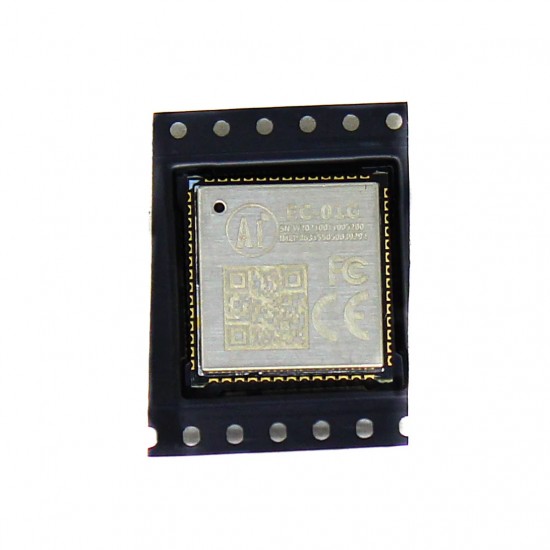

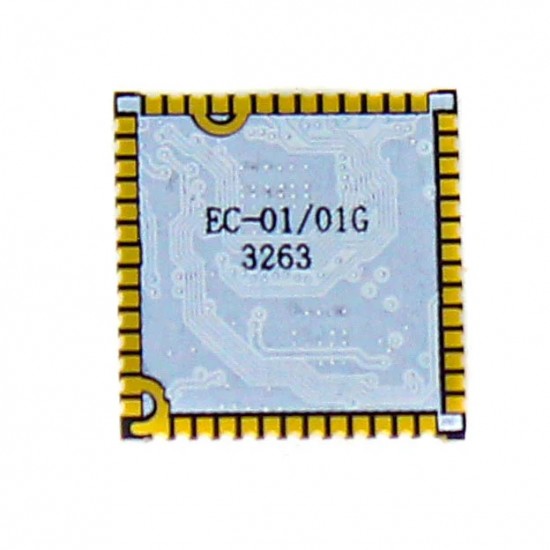

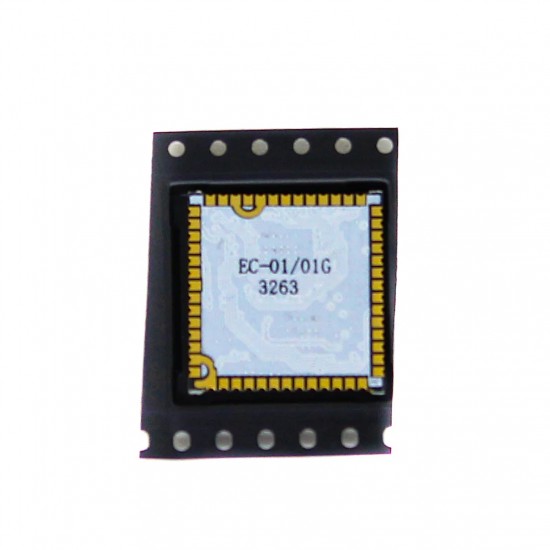

Ai-Thinker EC-01G NB-IOT Module

Based on 0 reviews. - Write a review

₹699.00

Ex GST: ₹592.37

Stock: In Stock
Model: 9095
SKU: SAT3265
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

EC-01G is an NB+GPS module developed by Ai-Thinker. The main chip scheme adopted by the NB part is EC616S. The chip has an ultra-highly integrated NB-IoT SoC, supports ultra-low power consumption, and fully supports the 3GPPRel14NB-IoTstandard. It is an ultra-high cost-effective NB-IoT chip The main chip solution adopted by the GPS part of the EC-01G module is AT6558R. This chip is a high-performance BDS/GNSS multi-mode satellite navigation receiver SoC single chip, on-chip integrated radio frequency front end, digital baseband processor, 32-bit RISC CPU, power management function. The chip supports a variety of satellite navigation systems, including China’s Beidou satellite navigation system BDS, the United States’ GPS, and Russia’s GLONASS, and can realize multi-system joint positioning.

Integrated radio frequency transceiver
PA, radio frequency filter
antenna switch and power management
Excellent communication performance and stability in various wireless environments
Excellent power consumption performance in various modes (PSM, DRX, eDRX, connected state)
Unique MCU mode, providing lower working current and shorter wake-uptime

Applications:

Support Open-CPU
software conforms to the CMSIS architecture
Supports mainstream cloud services
IPv4, IPv6 and non-IP
UDP, TCP

Features:

Processor: Cortex-M3，support MPU
Storage: 4MB NOR Flash on chip
System: Totally support 3GPP R14 NB-IoT
Peripheral:16 GPIO, 3 UART, 2 SSP, 2 I2C
low power consumption
Communication: Fully support 3GPP R14 NB-IoT
Radio Frequency: Support the spectrum: Band3、Band5、Band8, chip integrated RF transceiver filter

Packages includes:

1 x Ai-Thinker EC-01G NB-IOT Module
