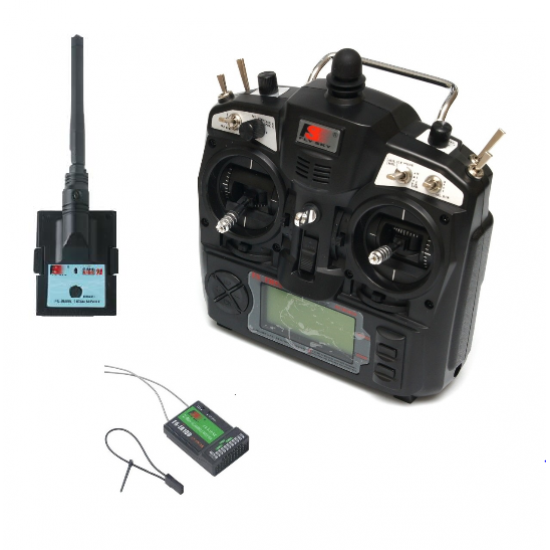

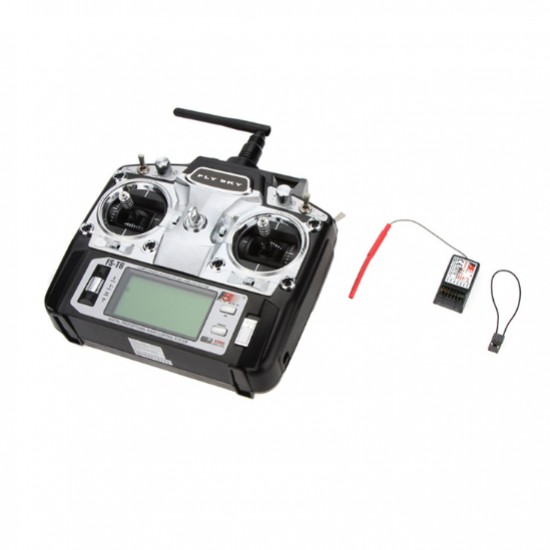

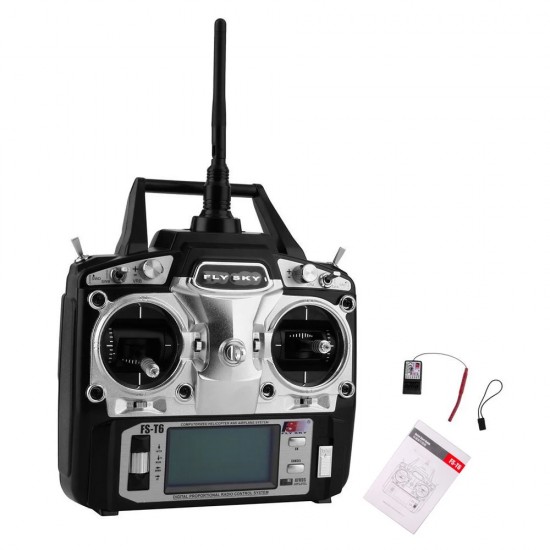

FlySky FS-T6 6CH Transmitter with FS-R6B Receiver

FlySky Introduces its newest 6 channel 2.4GHz system, The FS-T6. After years of success with the CT6B, FlySky presents the new FS-T6 with loads of cool and convenient features making the operation of this transmitter simple and instinctive.
The 6-channel FlySky FS-T6 6CH Transmitter with FS-R6B Receiver is the perfect transmitter for sports modellers who want the power of a programmable transmitter but don’t necessarily need a lot of excess features they do not use. It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and aeroplanes. It even has the ability to store 20 models allowing the user to save a whole fleet of aircraft.
FlySky FS-T6 6CH Transmitter with FS-R6B Receiver Programming the FS-T6 is very easy and intuitive. It is implemented with a simple click and scroll dial allowing quick and easy menu navigation and manipulation. The large backlit LCD screen with large fonts is easy to read and the simplified menus will immediately put first-time programmers at ease. Many programming functions like throttle curves and expo are graphically depicted to give you a clearer picture of the changes you’re making.
FlySky AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz system offers a lot of advantages. It is equipped with a super active and passive anti-jamming capability and has very low power consumption with high receiver sensitivity.
The 2.4GHz system puts the radio out of the frequency range by any generated by other electronic components in your model such as the brushless motor, speed controller, servos, or other metal to metal noise. This eliminates interference and glitching that can plague a traditional radio system. Extreme rigorous testing by FlySky engineers makes this AFHDS system solid and worthy.
DC Power Jack For External Power Supply

FlySky FS-T6 6CH Transmitter with FS-R6B Receiver
In Built AAA Battery Adapter Slot

FlySky FS-T6 6CH Transmitter with FS-R6B Receiver
Sporty joysticks with large backlight LCD screen

FlySky FS-T6 6CH Transmitter with FS-R6B Receiver
Schematic

FlySky FS-T6 6CH Transmitter with FS-R6B Receiver
Features:

    The newest 6 channel 2.4GHz system with lots of cool and convenient features making the operation of this transmitter simple and instinctive.
    The FlySky FS-T6 is the perfect transmitter for sports modelers who want the power of a programmable transmitter but don’t necessarily need a lot of excess features they do not use.
    It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and airplanes.
    It has the ability to store 20 models allowing the user to save a whole fleet of aircraft.
    Programming the FS-T6 is very easy and intuitive.
    It is implemented with a simple click and scroll dial allowing quick and easy menu navigation and manipulation.
    The large backlit LCD screen with large fonts is easy to read and the simplified menus will immediately put first-time programmers at ease.
    Many programming functions like throttle curves and expo are graphically depicted to give you a clearer picture of the changes you’re making.

Specification:

FS-T6 6CH Transmitter

    Channels: 6
    Model type: glider/heli/airlane
    RF range: 2.4000-2.485GHz
    Bandwidth: 500KHz
    Band: 160
    RF power: less than 20 dBm
    2.4G system: AFHDS
    Code type: GFSK
    Sensitivity: 1024
    Low voltage warning: yes(less than 9V)
    DSC port: yes(PS2; output: PPM)
    Charger port: yes
    Power: 12V DC(1.5AA*8)
    Weight:590g
    ANT length: 26mm
    Size: 191*93*302mm
    Color: black
    Certificate: CE0678, FCC

FS-R6B Receiver

    Item Name: FS-R6B Receiver
    Brand Name: Flysky
    Channels: 6 Channels
    Model type: heli/airplane
    RF power: less than 20DBm
    modulation: GFSK
    Code type: PCM
    Senditivity: 1024
    Low voltage warning: LED
    Charger port: yes
    ANT length: 26mm
    Frequency: 2.4G
    Power: 5V DC(1.5V AAA*4)
    weight: 25g
    size: 30*25*8mm
    Certificate: CE,FCC,RoHS

Package Includes:

1 x FlySky FS-T6 6CH Transmitter Remote

1 x FS-R6B 6-channel Receiver
1 x User Manual
