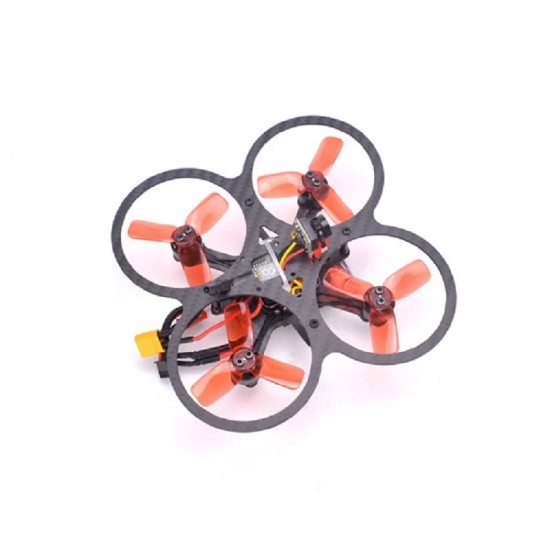

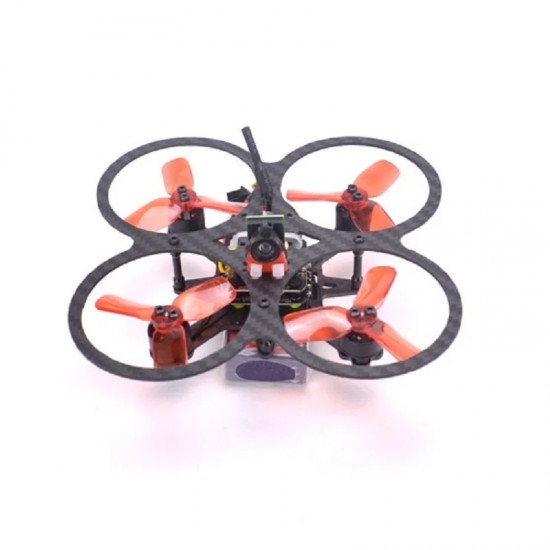

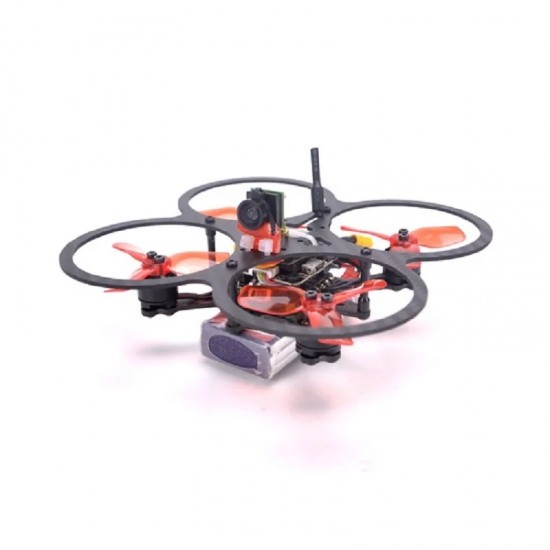

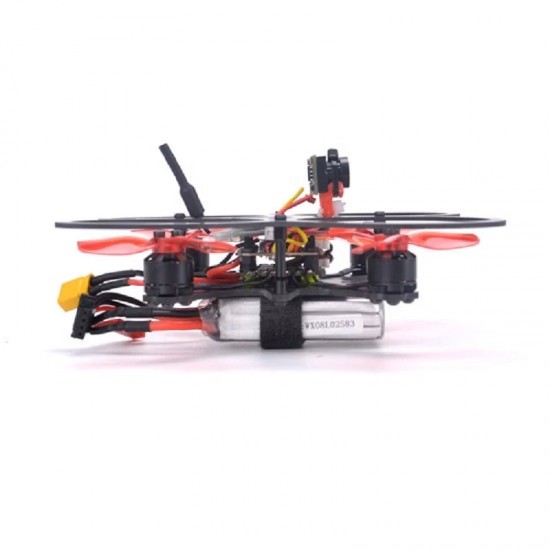

Mini MD90 90mm Racing Drone with Mini Flytower F3

Mini MD90 90mm Racing Drone with Mini Flytower F3
Mini MD90 90mm Racing Drone with Mini Flytower F3
Mini MD90 90mm Racing Drone with Mini Flytower F3
Mini MD90 90mm Racing Drone with Mini Flytower F3
Mini MD90 90mm Racing Drone with Mini Flytower F3
Mini MD90 90mm Racing Drone with Mini Flytower F3
Mini MD90 90mm Racing Drone with Mini Flytower F3
Mini MD90 90mm Racing Drone with Mini Flytower F3
Mini MD90 90mm Racing Drone with Mini Flytower F3
Based on 0 reviews. - Write a review
₹7,498.99
Ex GST: ₹6,355.08
  • Stock: In Stock
  • Model: 9167
  • SKU: SAT3337
  • Location: India
ReadytoSky ReadytoSky
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This Mini MD90 90mm Racing Drone with Mini Flytower F3, Drone Power Combo Set is the best low price drone motors and accessories combo set available in the market.

If you are about to have a great flying drone or quadcopter designed all by you. OKAY GREAT, But having a limited budget ??

Then here is the best deal for you!!!!

It is a pack of Mini F3 or F4 flytower Flight controllers with a 5.8G 25mW Transmitter, 600TVL 170 degree color video mini camera with mic audio, 1104 7500kv motor, and MD90 Frame Kit with 2030 red propeller.

Note: This product doesn’t come with a transmitter and receiver you have to purchase it separately.


Features:

  • 600TVL 170 degrees color video mini camera with mic audio
  • 48 wireless channels transmitter
  • 7500KV Brushless Motor
  • Micro size and lightweight
  • Easy installation for racing drone


Specifications:


Transmitter:

  • Support video format: PAL
  • Output Impedance: 50 Ohm
  • Output signal strength: 13±1dbmdBm
  • Output Power: 25mW
  • Wireless Channel: 48CH
  • Operating voltage: 5v
  • Current: 100mA
  • Frequency : 5 BAND 48CH 5645 ~ 5945 MHz


600TVL Camera:

  • Horizontal Resolution : 600TVL
  • Minimum illumination: 0LUX(LED ON)
  • S/N ratio ≥48dB
  • Gama:0.45
  • Frame speed: 50f/s(PAL)
  • White balance: Auto
  • Audio out: Monophonic
  • Video out: 1.2Vp-p 75Ω CVBS
  • Image color: Color
  • TV format: PAL
  • Lens: 1.8mm Wide view angle 170 Degree
  • IR Distance:1-3 Meters
  • Working temperature: -10~+50Degree C
  • Input power : 5V(Module)/DC9-12V(With step-down AV cable)
  • Power consumption :120mA


Mini 1104 7500KV Brushless Motor:

  • KV: 7500KV
  • Motor size: diameter 14*12.5
  • Stator Diameter: 14mm
  • Stator Length: 12.5mm
  • Shaft Diameter: 1.5mm
  • Motor Dimensions(Dia*Len): diameter 14*12.5mm
  • No.of Cells(Lipo): 2-3S
  • Max Continuous Current(A): 3.5A
  • Max Continuous Power(W): 38.9W


MD90 frame:

  • Wheel Base: 90mm
  • Weight: about 19g
  • Upper Board Thickness: 1.5 mm
  • Bottom board Thickness: 2mm


Package Includes:

1 x MD90 Frame Kit

1 x set mini F3 or F4 Flytower Flight Controller

1 x 5.8G 25mW Transmitter

1 x 600TVL camera

4 x 1104 7500kv motor

4 x 2030 red propeller

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
