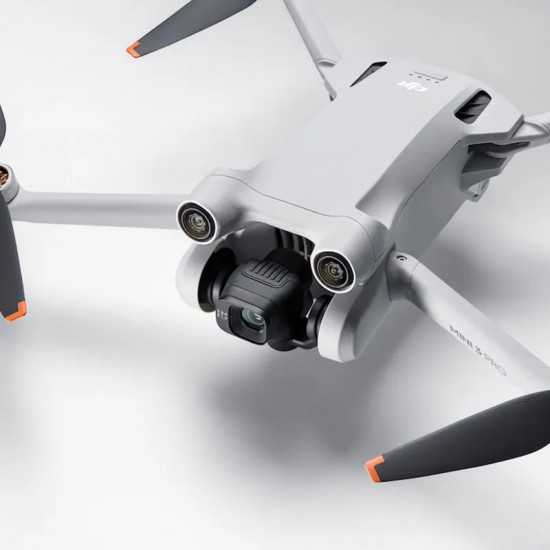

DJI Mini 3 PRO (Without Smart Controller)

Aircraft

Takeoff Weight

• <249 g [1]

Dimensions (L×W×H)

• Folded: 145×90×62 mm
• Unfolded: 171×245×62 mm
• Unfolded (with propellers): 251×362×70 mm

Diagonal Length

• 247 mm

Max Ascent Speed

• 5 m/s (S Mode)
• 3 m/s (N Mode)
• 2 m/s (C Mode)

Max Descent Speed

• 5 m/s (S Mode)
• 3 m/s (N Mode)
• 1.5 m/s (C Mode)

Max Speed

• (at sea level, no wind) [2]
• 16 m/s (S Mode)
• 10 m/s (N Mode)
• 6 m/s (C Mode)

Max Service Ceiling Above Sea Level

With Intelligent Flight Battery: 4000 m

With Intelligent Flight Battery Plus [7]: 3000 m [3]

Max Flight Time

34 mins (with Intelligent Flight Battery and measured while flying at 21.6 kph in windless conditions)

47 mins (with Intelligent Flight Battery Plus [7] and measured while flying at 21.6 kph in windless conditions). Only available in select countries.

Max Hovering Time

30 mins (with Intelligent Flight Battery, no wind)

40 mins (with Intelligent Flight Battery Plus [7], no wind)

Max Flight Distance

18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions)

25 km (with Intelligent Flight Battery Plus [7] and measured while flying at 43.2 kph in windless conditions)

Max Wind Speed Resistance

10.7 m/s (Level 5)

Max Tilt Angle

Forward: 40°, Backward: 35° (S Mode)

25° (N Mode)

25° (C Mode)

Max Angular Velocity (by default)*

130°/s (S Mode)

* Can be adjusted between 20°/s and 250°/s in the app75°/s (N Mode)

* Can be adjusted between 20°/s and 120°/s in the app30°/s (C Mode)

* Can be adjusted between 20°/s and 60°/s in the app

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satellite System (GNSS)

GPS + Galileo + BeiDou

Operation Frequency

2.400-2.4835 GHz

5.725-5.850 GHz [4]

Transmitter Power (EIRP)

2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)

Hovering Accuracy Range

Vertical:

±0.1 m (with vision positioning)

±0.5 m (with GNSS positioning)Horizontal:

±0.3 m (with vision positioning)

±0.5 m (with high-precision positioning system)

Sensing System

Forward

Precision Measurement Range: 0.39-25 m

Effective Sensing Speed: Flight speed <10.5 m/s

FOV: Horizontal 106°, Vertical 90°

Backward

Precision Measurement Range: 0.36-23.4 m

Effective Sensing Speed: Flight speed <8 m/s

FOV: Horizontal 58°, Vertical 73°

Downward

Precision Measurement Range: 0.15-9 m

Precise Hovering Range: 0.5-12 m

Vision Sensor Hovering Range: 0.5-30 m

Effective Sensing Speed: Flight speed <3 m/s

FOV: Forward/Backward 104.8°, Left/Right 87.6°

Auxiliary Bottom Light

N/A

Operating Environment

Diffuse reflective surface with a clear pattern and reflectivity >20% (such as cement pavement)

Adequate lighting (lux >15, e.g. , normal exposure environment with indoor fluorescent lamp)

Gimbal

Mechanical Range

Tilt: -135° to 80°

Roll: -135° to 45°

Pan: -30° to 30°

Controllable Range

Tilt: -90° to 60°

Roll: -90° or 0°

Stabilization

3-axis mechanical gimbal (tilt, roll, and pan)

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.01°

Camera

Sensor

1/1.3-inch CMOS

Effective Pixels: 48 MP

Lens

FOV: 82.1°

Format Equivalent: 24 mm

Aperture: f/1.7

Focus Range: 1 m to ∞

ISO Range

Video: 100-6400 (Auto), 100-6400 (Manual)

Photo: 100-6400 (Auto), 100-6400 (Manual)

Shutter Speed

Electronic Shutter: 2-1/8000 s

Max Image Size

4:3: 8064×6048 (48 MP), 4032×3024 (12 MP)

16:9: 4032×2268 (12 MP)

Still Photography Modes

Single Shot

Interval:

JPEG: 2/3/5/7/10/15/20/30/60 s

JPEG + RAW: 2/3/5/7/10/15/20/30/60 s

Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 2/3 EV Bias

Panorama: Sphere, 180°, Wide-angle, and Vertical

Photo Format

JPEG/DNG (RAW)

Video Resolution

4K: 3840×2160@24/25/30/48/50/60fps

2.7K: 2720×1530@24/25/30/48/50/60fps

FHD: 1920×1080@24/25/30/48/50/60fps

Slow Motion: 1920×1080@120fps

HDR Mode

Photo: HDR supported in Single Shot mode

Video: HDR supported when shooting at 24/25/30fps

Video Format

MP4/MOV (H.264/H.265)

Max Video Bitrate

150 Mbps

Zoom Range

4K: 2x

2.7K: 3x

FHD: 4x

QuickShot Modes

Dronie, Helix, Rocket, Circle, Boomerang, and Asteroid

Color Profiles

Normal

D-Cinelike

Supported File System

FAT32 (≤32 GB)

exFAT (>32 GB)

Video Transmission

Video Transmission System

DJI O3

Live View Quality

1080p/30fps

Operation Frequency

2.400-2.4835 GHz

5.725-5.850 GHz [4]

Transmitter Power (EIRP)

2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)

Communication Bandwidth

1.4MHz/3MHz/10MHz/20MHz/40MHz

Latency (depending on environmental conditions and mobile device)

Aircraft + Remote Controller: Approx. 120 ms

Max Video Bitrate

Aircraft + Remote Controller: 18 Mbps

Max Download Bitrate [5]

DJI O3:

RC-N1 Remote Controller and DJI RC: 5.5 MB/sWi-Fi 5: Max 25 MB/s

Signal Transmission Ranges

(FCC) [6]

Strong Interference (urban landscape): Approx. 1.5-3 km

Medium Interference (suburban landscape): Approx. 3-7 km

Low Interference (suburb/seaside): Approx. 7-12 km

Antennas

4 antennas, 1T2R

Audio Transmission

N/A

Wi-Fi

Protocol

802.11 a/b/g/n/ac

Transmitter Power (EIRP)

2.400-2.4835 GHz: ＜19 dBm (FCC/CE/SRRC/MIC)

5.725-5.850 GHz: ＜20 dBm (FCC/SRRC), ＜14 dBm (CE)

Bluetooth

Protocol

Bluetooth 5.2

Transmitter Power (EIRP)

2.400-2.4835 GHz: ＜8 dBm

Intelligent Flight Battery

Capacity

2453 mAh

Weight

Approx. 80.5 g

Voltage

7.38 V

Charging Voltage Limit

8.5 V

Battery Type

Li-ion

Energy

18.1 Wh

Charging Time

64 mins (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)

56 mins (with the DJI 30W USB-C Charger and the battery inserted into the DJI Mini 3 Pro Two-Way Charging Hub)

Charging Temperature Range

5° to 40° C (41° to 104° F)

Recommended Charger

DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)*

* When you charge the battery mounted to the aircraft or inserted into the DJI Mini 3 Pro Two-Way Charging Hub, the maximum charging power supported is 30 W.

Intelligent Flight Battery Plus [7]

Capacity

3850 mAh

Weight

Approx. 121 g

Voltage

7.38 V

Charging Voltage Limit

8.5 V

Battery Type

Li-ion

Energy

28.4 Wh

Charging Time

101 mins (with the DJI 30W USB-C Charger and the battery mounted to the aircraft)

78 mins (with the DJI 30W USB-C Charger and the battery inserted into the DJI Mini 3 Pro Two-Way Charging Hub)

Charging Temperature Range

5° to 40° C (41° to 104° F)

Recommended Charger

DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)*

* When you charge the battery mounted to the aircraft or inserted into the DJI Mini 3 Pro Two-Way Charging Hub, the maximum charging power supported is 30 W.

Memory Cards

Supported Memory Cards

UHS-I Speed Class 3 or above is required.

A list of recommended microSD cards can be found below.

Recommended microSD Cards

SanDisk Extreme 64GB V30 A1 microSDXC

SanDisk Extreme 128GB V30 A2 microSDXC

SanDisk Extreme 256GB V30 A2 microSDXC

SanDisk Extreme 512GB V30 A2 microSDXC

SanDisk Extreme Pro 64GB V30 A2 microSDXC

SanDisk Extreme Pro 256GB V30 A2 microSDXC

SanDisk Extreme Pro 400GB V30 A2 microSDXC

SanDisk High Endurance 64GB V30 microSDXC

SanDisk High Endurance 256GB V30 microSDXC

SanDisk Max Endurance 32GB V30 microSDHC

SanDisk Max Endurance 128GB V30 microSDXC

SanDisk Max Endurance 256GB V30 microSDXC

Kingston Canvas Go!Plus 64GB V30 A2 microSDXC

Kingston Canvas Go!Plus 256GB V30 A2 microSDXC

Lexar High Endurance 64GB V30 microSDXC

Lexar High Endurance 128GB V30 microSDXC

Lexar 667x 64GB V30 A1 microSDXC

Lexar 633x 256GB V30 A1 microSDXC

Lexar 1066x 64GB V30 A2 microSDXC

Lexar 1066x 128GB V30 A2 microSDXC

Lexar 1066x 256GB V30 A2 microSDXC

Samsung Pro Plus 128GB V30 A2 microSDXC

Samsung EVO Plus 512GB microSDXC

DJI RC-N1 Remote Controller

Transmitter Power (EIRP)

2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

Max Supported Mobile Device Size

Length: 180 mm, Width: 86 mm, Height: 10 mm

Supported Port Types

Lightning, Micro-USB (Type-B), USB-C

Video Transmission System

DJI O3

Max Battery Time

6 hrs (without charging any mobile device)

4 hrs (when charging a mobile device)

Operating Temperature

-10° to 40° C (14° to 104° F)

DJI RC

Model

RM330

Video Transmission System

DJI O3

Transmitter Power (EIRP)

2.400-2.4835 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

Storage Capacity

DJI RC’s storage capacity can be increased by using a microSD card. Users can store images and videos on the card and export them to a computer or other devices.

Video Output Port

N/A

Max Battery Life

Approx. 4 hours

Operating Temperature

-10° to 40° C (14° to 104° F)

Supported SD Cards

UHS-I Speed Class 3 or above is required.

A list of recommended microSD cards can be found below.

Recommended microSD Cards

SanDisk Extreme 64GB V30 A1 microSDXC

SanDisk Extreme 128GB V30 A2 microSDXC

SanDisk Extreme 256GB V30 A2 microSDXC

SanDisk Extreme 512GB V30 A2 microSDXC

SanDisk Extreme Pro 64GB V30 A2 microSDXC

SanDisk Extreme Pro 256GB V30 A2 microSDXC

SanDisk Extreme Pro 400GB V30 A2 microSDXC

SanDisk High Endurance 64GB V30 microSDXC

SanDisk High Endurance 256GB V30 microSDXC

Kingston Canvas Go!Plus 64GB V30 A2 microSDXC

Kingston Canvas Go!Plus 256GB V30 A2 microSDXC

Lexar High Endurance 64GB V30 microSDXC

Lexar High Endurance 128GB V30 microSDXC

Lexar 633x 256GB V30 A1 microSDXC

Lexar 1066x 64GB V30 A2 microSDXC

Samsung EVO Plus 512GB microSDXC

Wi-Fi Protocol

802.11 a/b/g/n

Wi-Fi Transmitter Power (EIRP)

2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC)

5.725-5.850 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)

Bluetooth Protocol

Bluetooth 4.2

Bluetooth Transmitter Power (EIRP)

2.400-2.4835 GHz: <10 dBm

Charging Hub

Compatible DJI Charger

DJI 30W USB-C Charger or other USB Power Delivery chargers (30 W)

* When you charge a battery mounted to the aircraft or inserted into the DJI Mini 3 Pro Two-Way Charging Hub, the maximum charging power supported is 30 W.

Compatible DJI Batteries

DJI Mini 3 Pro Intelligent Flight Battery, DJI Mini 3 Pro Intelligent Flight Battery Plus [7]

Input

5 V, 3 A

9 V, 3 A

12 V, 3 A

Output (USB)

Max Voltage: 5 V, Max Current: 2 A

Charging Type

Three batteries being charged in sequence

App

Mobile Device App

DJI Fly

Required Operating System

iOS v11.0 or later

Android v6.0 or later

Other

Footnotes

1. The standard weight of the aircraft (including the DJI Mini 3 Pro Intelligent Flight Battery, propellers, and a microSD card). Actual product weight may vary due to differences in batch materials and external factors. Registration is not required in some countries and regions. Check local rules and regulations before use. These specifications have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended.

With the DJI Mini 3 Pro Intelligent Flight Battery Plus, the aircraft will weigh more than 249 g (about 290 g). Please check and strictly abide by local laws and regulations before flying.

2. The max flight speed is subject to local restrictions that may change. Please abide by local laws and regulations when flying.

3. Increase in aircraft weight can affect flight propulsion. When the aircraft is using the Intelligent Flight Battery Plus, do not mount additional payloads like a propeller guard or third-party accessories to avoid a lack of propulsion.

4. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time.

5. Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on an SD card or the internal storage. Download speeds may vary depending on actual conditions.

6. Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance.

Max one-way communication distance of DJI Mini 3 Pro in countries/regions of different standards:

FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions. Max transmission range: 12 km

SRRC: Mainland China. Max transmission range: 8 km

CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions. Max transmission range: 8 km

MIC: Japan. Max transmission distance: 8 km

7. Sold separately and only in selected countries and regions.
