- Stock: In Stock
- Model: 9313
- SKU: SAT3483
- Location: India

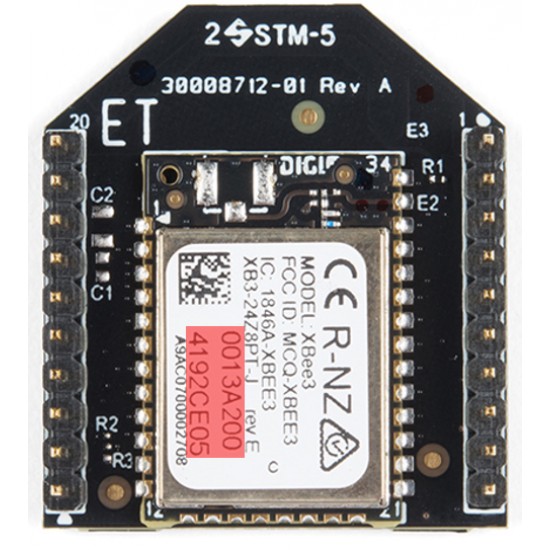

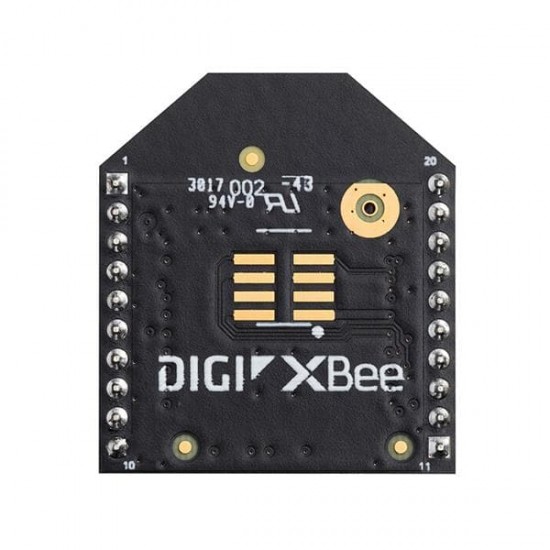

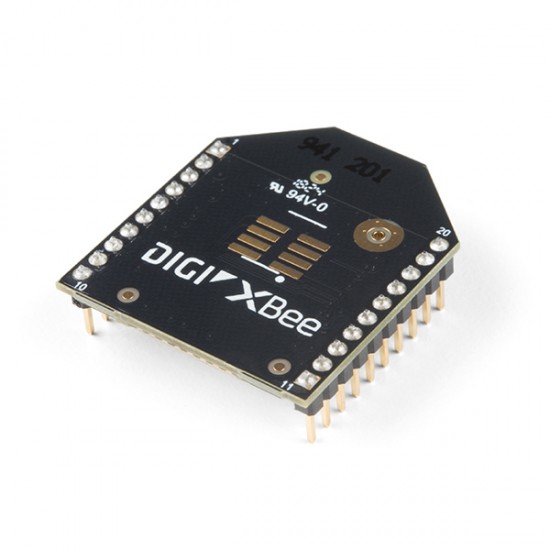

Digi XBee3 2.4GHz ZB3.0 PCB Antenna, TH MT, Digi XBee3 modules accelerate time to market for designers, OEMs, and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.
Digi XBee3 2.4GHz ZB3.0 PCB Antenna, TH MT offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others. With Digi Remote Manager, Digi XBee3 modules can be easily configured and controlled from a simple, central platform.
Built-in Digi TrustFence® security, identity, and data privacy features use more than 175 controls to protect against new and evolving cyber threats. MicroPython and XCTU software tools simplify adding functionality, configuration, and testing.
From edge computing to future migration, Digi XBee modules offer size, weight, power and performance advantages ideal for scalable device connectivity. A versatile addition to the expanding Digi XBee Ecosystem of wireless modules, adapters, and software, the Digi XBee3 Series is engineered to accelerate development and deployment.
Key Features :
SIZE AND FLEXIBILITY:
At 13 mm x 19 mm, the new Digi XBee3™ micro form factor allows for more compact and portable applications Digi XBee3™ is one module for all protocols including ZigBee, 802.15.4, DigiMesh and BLE, all configurable via Digi XCTU
PROGRAMMABILITY:
Eliminate the need for an external microcontroller and create smart end nodes and low-end gateways using MicroPython
SECURITY:
Intrinsic IoT security with Digi TrustFence, a layered approach securing the edge device, through the gateway, into and out of the IoT
Features:
- Serial Data Interface: Uart, Spi, I2c
- Configuration Method: API Or At Commands, Local Or Over-the-air (Ota)
- Frequency Band: ISM 2.4 GHz
- Form Factor: Micro, Through-hole, Surface Mount
- Interference: Immunity Dsss (Direct Sequence Spread Spectrum)
- Adc Inputs: (4) 10-bit Adc Inputs
- Digital I/o: 15
- Antenna Options:
- Through-hole: Pcb Antenna, U.fl Connector, RP-SMA Connector
- Smt: Rf Pad, Pcb Antenna, Or U.fl Connector
- Micro: U.fl Antenna, Rf Pad, Chip Antenna
- Operating Temperature -40º C To +85º C
Package Includes:
1 x Digi XBee3 2.4GHz ZB3.0 PCB Antenna.
