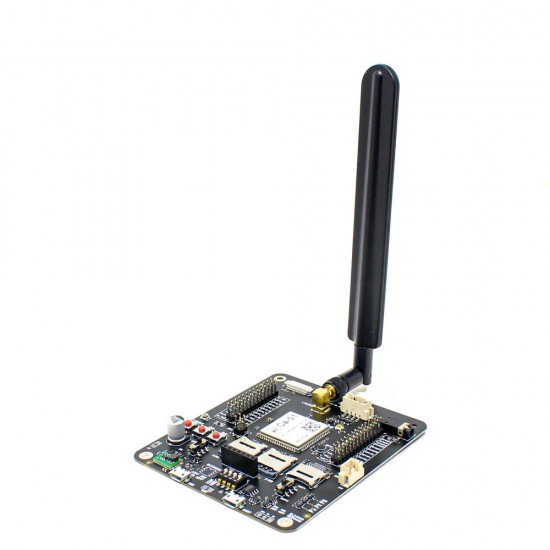

Ca-01 is an ultra-small package LTE Cat.1 bis module launched by Ai-Thinker. It adopts Unigroup’s UIS8910 platform and supports LTE 3GPP Rel.13 technology. It is a 4G full Netcom module that can adapt to different operators and products to ensure maximum flexibility in product design.


Features:

  • Support Cat.1
  • Support VoLTE
  • Support 1.4 ~ 20MHz RF bandwidth
  • LTE-TDD: uplink and downlink configuration 2
  • Maximum upstream rate 2Mbps, maximum downstream rate 8Mbps
  • LTE-TDD: uplink and downlink configuration 1
  • Maximum upstream rate 4Mbps, maximum downstream rate 6Mbps
  • Network protocol features
  • Support: TCP/UDP/PPP/FTP/HTTP/NITZCMUXINDIS/NTP/ HTTPS/
  • In development: SMTP/SMTPS/MMS/DTMF
  • USIM card interface
  • Support USIM / SIM card: 1.8V and 3V
  • USB interface
  • Compatible with USB2.0 (only supports slave mode), the data transfer rate is up to 480Mbps
  • Used for AT commands, data transmission, software debugging, software upgrade
  • USB virtual serial port driver: support USB driver under Windows 7 / 8.1 / 10, Linux 2.6.x / 3.x / 4.1, Android 4.x / 5.x /6.x17.x and other operating systems
  • Serial port


Interface:

  • 1 USB 2.0 high speed interface (up to 480Mbps)
  • 1.8V/3.0V (U) SIM card interface
  • 1 NETLIGHT interface (NET_STATUS and NET_MODE)
  • 2 analog voice input
  • 2 analog voice output
  • 3 UART interfaces
  • 1 SPI interface
  • 1 SPI LCD interface
  • 1 SPI Camera interface
  • 1 MMC interface
  • PWRKEY (active low)
  • Support 6*6 array keyboard
  • 2 ADC interfaces
  • Electrical parameters-Output power: LTE-TDD: Class3(23dBm+1/-3dB); LTE-FDD: Class3(23dBm+-2dB);
  • General features: 3GPP E-UTRA Release 13;
  • Bandwidth: 1.4/3/5/10/15/20MHz;
  • Package: stamp hole + LGA;
  • Weight: about 2.6g;


Package Includes:

1 x Ai-Thinker CA-01 Dev. Board
