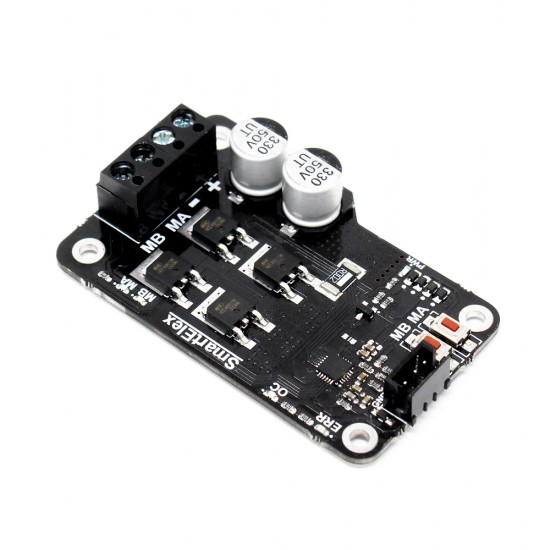

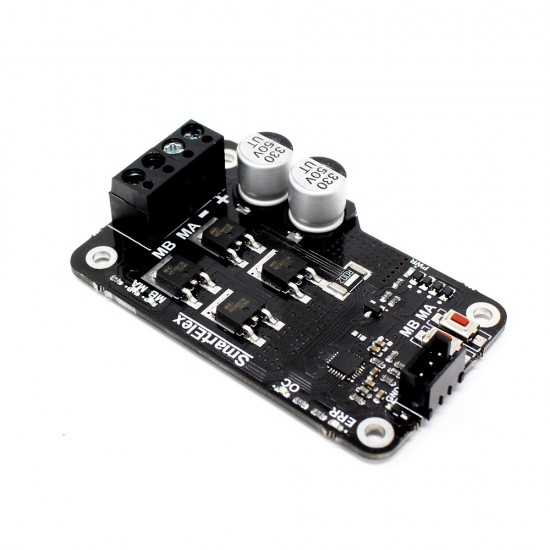

SmartElex 15S DC Motor Driver 15A (30A Peak)

Based on 0 reviews. - Write a review

₹898.99

Ex GST: ₹761.86

Stock: In Stock
Model: 10320
SKU: SAT4490
Location: India

Qty

Add to Cart

Buy Now

Add to Wish List Compare this Product

Related Products

Quickview

EasyMech Black Acrylic Case for 7-Inch Touch Screen Display

₹799.00

Ex GST: ₹677.12

Add to Cart Add to Wish List Compare this Product

Quickview

Arducam 5MP OV5647 160 Degree Wide Angle Camera

₹2,479.00

Ex GST: ₹2,100.85

Add to Cart Add to Wish List Compare this Product

Quickview

GEPRC SpeedX2 1804 2450Kv Motor

₹1,499.00

Ex GST: ₹1,270.34

Add to Cart Add to Wish List Compare this Product

Quickview

ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

₹56.64

Ex GST: ₹48.00

Add to Cart Add to Wish List Compare this Product

Free Returns

Full refund on Damage

Secure Checkout

We follow highest security standards

Secure Shopping

Best security features

Technical Support

Ask us if you need help

Brush DC motors are the most widely used drivers due to their low cost and simple drive control options. SmartElex 15S DC Motor Driver is powerful motor driver board. This motor driver has a lot of great specs that make it useful for a wide variety of mechatronics.

The wide operating voltage range and easy to interface with microcontrollers (MCU) allow you to quickly adopt this module into applications. The pin map is as given below. To know more about this motor driver, please refer to the user manual in the attachment section.

Note: This product is alos available in green colors, which will be shipped randomly.

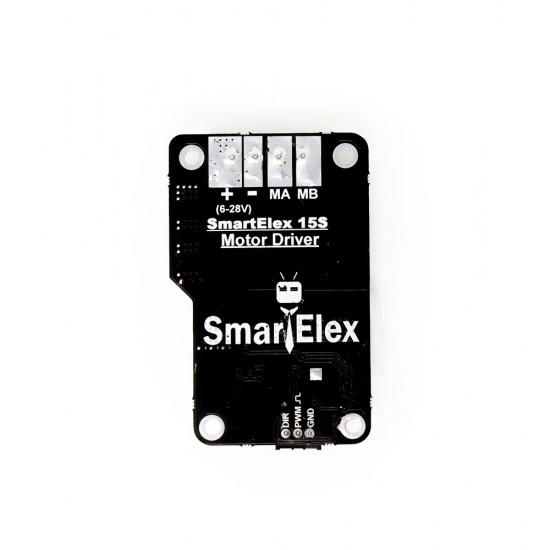

SmartElex 15S DC Motor Driver 15A (30A Peak) Pin Map

Some basic information about motor drivers, their controlling modes, and a comparison table is provided in this article. Click here to read.

Features :

Wide 6 V to 30 V motor operating voltage
Continuous 15A maximum current without a heat sink and 30 A peak current for 10 seconds
One brushed DC motor bidirectional control
Current limiting at 35 A
PWM frequency up to 32 kHz
Supports TTL PWM from micro-controller
Internal thermal shutdown
Under-voltage lockout
PWM and direction controlled driving of four externally powered NMOS transistors
3.3V and 5V logic level input

Package Includes :

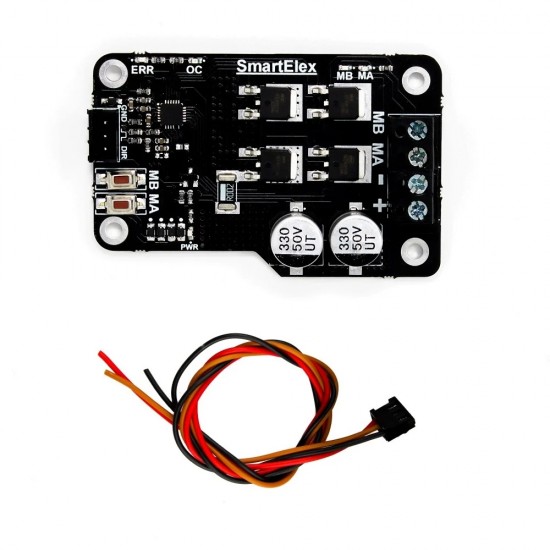

1 x SmartElex 15S DC Motor Driver 15A (30A Peak)

1 x Connection Cable.

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
