- Stock: In Stock
- Model: 10306
- SKU: SAT4476
- Location: India
MKS-LV8729-OC 1.5A Ultra Quiet Stepper Motor Driver for 3D Printers and CNC is compatible with a variety of Motherboards like MKS GEN, MKS SBASE with MKS CD can be used in Ramps, can also be used with our simple controller MKS OSC
Instructions for use:

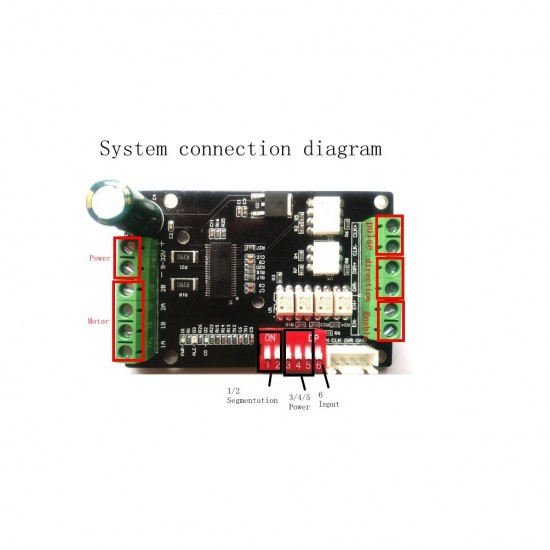

Common and differential two kinds of input mode, through the No. 6 DIP switch to switch, when No. 6 DIP switch to 1, the input mode is common cathode, the use of white 4pin terminal input; when DIP switch to 0 the input mode is differential, and a total of cathode-common and common anode, see connection diagram.
1/2 DIP switch for the subdivision settings, 3/4/5 DIP switch for the current settings, 6 for the input selection, see connection diagram
Press the DIP switch to dial the number is 0, dial ON to 1, subdivision, current, input mode settings are as follows:
MKS-LV8729-OC 1.5A Ultra Quiet Stepper Motor Driver
Features:
High-speed optocoupler, high-speed without losing a step
LV8729 chip, with over-current protection circuit, the maximum support 128 segments
Automatic half-flow function
A variety of input methods to meet a variety of interface needs

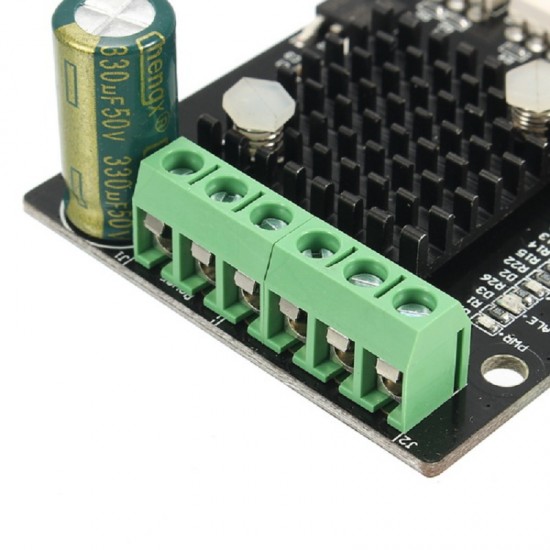

The use of increased heat sink, good heat dissipation
Package Includes:
1 x MKS-LV8729-OC 1.5A Ultra Quiet Stepper Motor Driver
1 x 4-pin Dupont cable with a connector at both end-(70cm)
